Industrial 8-Port Gigabit PoE+ Switch with 2 Gigabit Uplink Ports, 240W Output, -40°C to 80°C

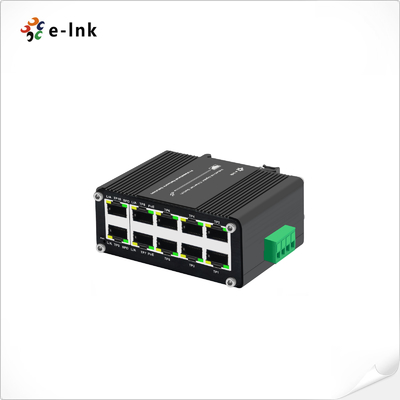

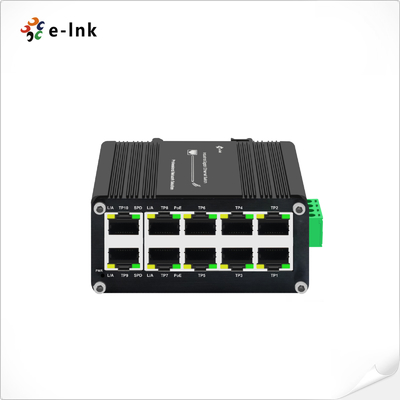

Large Image : Industrial 8-Port Gigabit PoE+ Switch with 2 Gigabit Uplink Ports, 240W Output, -40°C to 80°C

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-IMC010GP

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	US$39.9/pc
Packaging Details:	Mini Industrial PoE Switch Standard Export Package
Delivery Time:	2~7 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Product Name:	Industrial 10 Port PoE Switch	Input Power:	12~48VDC Redundant Power With Polarity Reverses Protection Function
Dimensions (WxDxH):	95 X 88 X 46mm	Weight:	400g
Mounting Options:	DIN-Rail Mount	Power Consumption::	<250W (Non-PoE<10W)
Highlight:	8 Port Gigabit PoE+ Switch , 240W Industrial PoE+ Switch , 2 Gigabit Uplink Ports PoE+ Switch

Mini Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Compact Ethernet Switch

Overview

The LNK-IMC010GP is a compact industrial 8-Port Gigabit PoE+ switch with 2 additional uplink ports, specially designed for space-constrained and harsh environments. Delivering wire-speed Gigabit performance and a total PoE power budget of 240W, it supports IEEE 802.3at PoE+, providing up to 30W per port for high-powered devices such as IP cameras, wireless APs, and VoIP phones.

Equipped with 8 x 10/100/1000BASE-T PoE+ ports and 2 x Gigabit RJ45 uplink ports, the LNK-IMC010GP ensures flexible network expansion. The 48–57V DC power input enables power redundancy and operational reliability, while the rugged IP40-rated metal housing offers strong resistance to electromagnetic interference and electrical surges, making it ideal for industrial automation, traffic control systems, and outdoor cabinets without air conditioning.

With its fanless design for silent operation and an extended operating temperature range from -40°C to 80°C, this switch guarantees stable performance in extreme environments—all without the need for additional software configuration.

Features

► 10 10/100/1000BASE-T Gigabit Ethernet RJ45 copper ports

► Up to 8 ports of IEEE 802.3af/at devices powered

► Up to 240-watt PoE budget

► 48~57V DC redundant power with reverse polarity protection

► Supports 802.3x Flow control

► Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)

► Supports DIN-Rail installation

► Industry standard design, dustproof and close design IP40, rugged high-strength metal case

► -40°C to 80°C (-40°F to 176°F) operating temperature

Dimension & Size

Industrial 8-Port Gigabit PoE+ Switch with 2 Gigabit Uplink Ports, 240W Output, -40°C to 80°C 0

Technical Indexes

Ethernet
Standards:	IEEE 802.3 Ethernet
	IEEE 802.3u Fast Ethernet
	IEEE 802.3ab Gigabit Ethernet
	IEEE 802.3x Full-Duplex Flow Control
	IEEE 802.3az Energy Efficient Ethernet (EEE)
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer:	2Mbits
Packet Length:	9216bytes
MAC Address Table:	4K entries
Switch Fabric:	20Gbps/non-blocking
Switch Throughput (packet per second)	14.88Mpps@64bytes
Interface
Connector:	10 10/100/1000BASET RJ45 auto-MDI/MDI-X ports 8 ports with 802.3at PoE+ injector function (Port 1 to 8)
PoE (Power over Ethernet)
Standard:	IEEE 802.3at Power over Ethernet Plus/PSE IEEE 802.3af Power over Ethernet/PSE
Port:	RJ45
Power Pin Assignment	4/5(+), 7/8(-)
PoE Budget:	Up to 240-watt PoE budget
Max. Number of Class 4 PDs	8
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 100,000 hrs
Electrical and Mechanical
Input Power:	48~57VDC Redundant power with polarity reverses protection function
Power Consumption:	<250W (Non-PoE<10W)
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
Dimensions (WxDxH):	95 x 88 x 46mm
Weight:	400g
Casing:	Aluminum Case
Mounting Options:	DIN-Rail mount
LED Indicators:
PWR	Power
L/A	Link/Activity
SPD	Data Rate
PoE	Max 30W per port
Regulatory Approvals
EMC	CE (EN55032, EN55035)
EMI	FCC Part 15 Subpart B
EMS	EN61000-4-2 (ESD) EN61000-4-3 (RS)
	EN61000-4-4 (EFT) EN61000-4-5 (Surge)
	EN61000-4-6 (CS) EN61000-4-8 (PFMF) EN61000-4-11
Safety	CE (EN60950-1)
Surge Protection	8KV for PoE, RJ-45 and SFP ports
Shock	IEC60068-2-27
Freefall	IEC60068-2-32
Vibration	IEC60068-2-6

Ordering Information

Model	Description
LNK-IMC010GP	Mini Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Compact Ethernet Switch
Mounting Options	► Default DIN-Rail Bracket installed.
Power Options	► Power Supply is to be purchased separately
