Compact Industrial 8-Port PoE+ 2 Port Ethernet Switch, 240W Output, for Harsh Environments

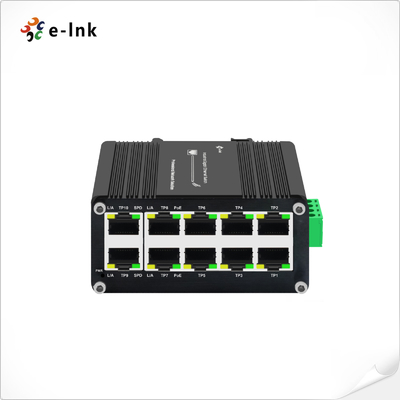

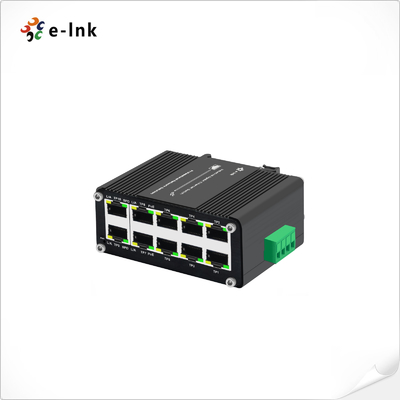

Large Image : Compact Industrial 8-Port PoE+ 2 Port Ethernet Switch, 240W Output, for Harsh Environments

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-IMC010GPB

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	US$49.9/pc
Packaging Details:	Mini Industrial PoE Switch Standard Export Package
Delivery Time:	2~7 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Product Name:	Industrial 10 Port PoE Switch	Input Power:	12~48VDC Redundant Power With Polarity Reverses Protection Function
Dimensions (WxDxH):	95 X 88 X 46mm	Weight:	400g
Mounting Options:	DIN-Rail Mount	Power Consumption::	<250W (Non-PoE<10W)
Highlight:	2 Port Industrial Ethernet Switch , 240W Industrial Ethernet Switch

Mini Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Compact Ethernet Switch

Overview

The LNK-IMC010GPB Mini Compact Industrial 8-Port 10/100/1000T 802.3at PoE+ Switch is designed for narrow-space installations and harsh industrial environments. Offering 240W PoE+ output, this compact switch supports wire-speed Gigabit performance and is equipped with 8 IEEE 802.3at PoE+ ports and 2 10/100/1000BASE-T RJ45 uplink ports. It operates with a wide 12-48V DC input for power redundancy, making it ideal for power-sensitive industrial applications.

Built with a rugged IP40 metal housing, the switch offers immunity against electromagnetic interference and electrical surges, perfect for environments like factory floors or traffic control cabinets without air conditioning. Its fanless design ensures silent operation, while its operating temperature range from -40°C to 80°C guarantees reliability in even the toughest conditions. No software configuration is required, and it seamlessly supports both standard and high-powered devices.

Features

► 10 10/100/1000BASE-T Gigabit Ethernet RJ45 copper ports

► Up to 8 ports of IEEE 802.3af/at devices powered

► Up to 240-watt PoE budget

► 12~48V DC redundant power with reverse polarity protection

► Supports 802.3x Flow control

► Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)

► Supports DIN-Rail installation

► Industry standard design, dustproof and close design IP40, rugged high-strength metal case

► -40°C to 80°C (-40°F to 176°F) operating temperature
Technical Indexes

Ethernet
Standards:	IEEE 802.3 Ethernet
	IEEE 802.3u Fast Ethernet
	IEEE 802.3ab Gigabit Ethernet
	IEEE 802.3x Full-Duplex Flow Control
	IEEE 802.3az Energy Efficient Ethernet (EEE)
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer:	2Mbits
Packet Length:	9216bytes
MAC Address Table:	4K entries
Switch Fabric:	20Gbps/non-blocking
Switch Throughput (packet per second)	14.88Mpps@64bytes
Interface
Connector:	10 10/100/1000BASET RJ45 auto-MDI/MDI-X ports 8 ports with 802.3at PoE+ injector function (Port 1 to 8)
PoE (Power over Ethernet)
Standard:	IEEE 802.3at Power over Ethernet Plus/PSE IEEE 802.3af Power over Ethernet/PSE
Port:	RJ45
Power Pin Assignment	4/5(+), 7/8(-)
PoE Budget:	Up to 240-watt PoE budget
Max. Number of Class 4 PDs	8
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 100,000 hrs
Electrical and Mechanical
Input Power:	48~57VDC Redundant power with polarity reverses protection function
Power Consumption:	<250W (Non-PoE<10W)
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present

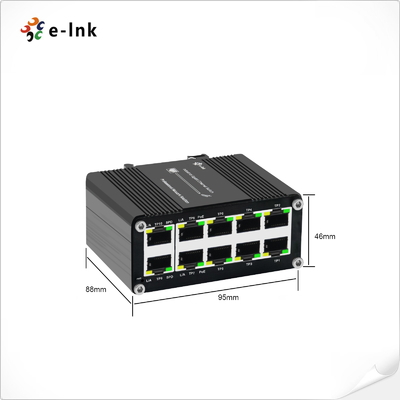

Dimensions (WxDxH):	95 x 88 x 46mm
Weight:	400g
Casing:	Aluminum Case

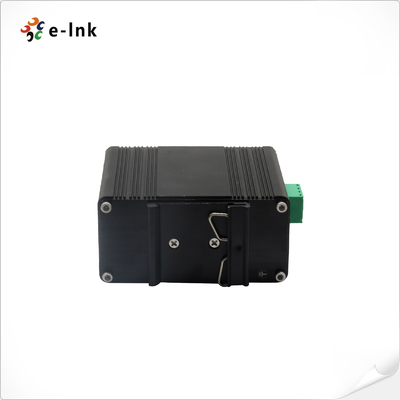

Mounting Options:	DIN-Rail mount
LED Indicators:
PWR	Power
L/A	Link/Activity
SPD	Data Rate
PoE	Max 30W per port
Regulatory Approvals
EMC	CE (EN55032, EN55035)
EMI	FCC Part 15 Subpart B
EMS	EN61000-4-2 (ESD) EN61000-4-3 (RS)
	EN61000-4-4 (EFT) EN61000-4-5 (Surge)
	EN61000-4-6 (CS) EN61000-4-8 (PFMF) EN61000-4-11
Safety	CE (EN60950-1)
Surge Protection	8KV for PoE, RJ-45 and SFP ports
Shock	IEC60068-2-27
Freefall	IEC60068-2-32
Vibration	IEC60068-2-6

Ordering Information

Model	Description
LNK-IMC010GPB	Mini Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Compact Ethernet Switch
Mounting Options	► Default DIN-Rail Bracket installed.
Power Options	► Power Supply is to be purchased separately

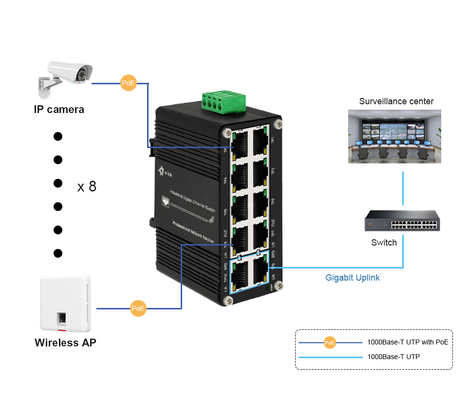

Application
