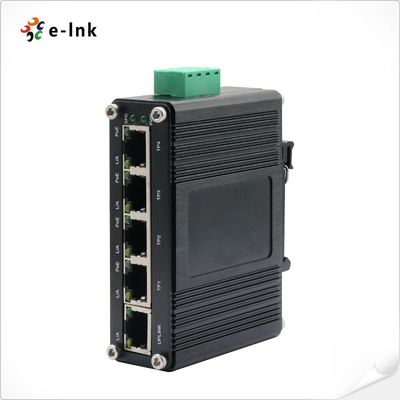

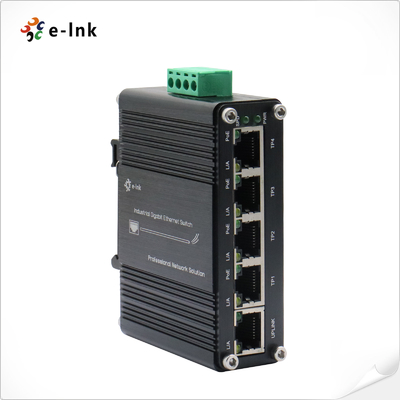

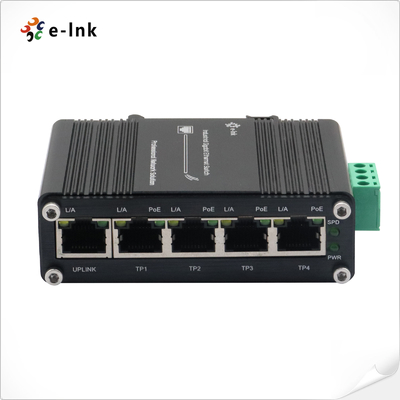

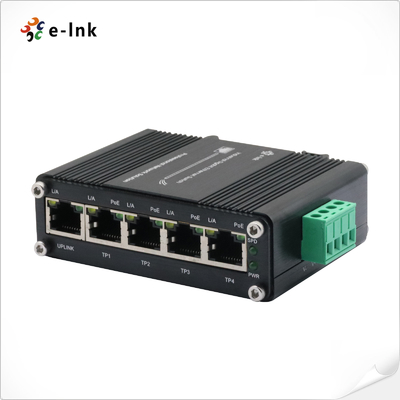

Industrial 5-Port Ethernet Switch, 4 PoE Ports + 1 Gigabit, 12~48VDC Power, CE/FCC Certified

Large Image : Industrial 5-Port Ethernet Switch, 4 PoE Ports + 1 Gigabit, 12~48VDC Power, CE/FCC Certified

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE,FCC,RoHs
Model Number:	LNK-IMC005GP Series

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	US$29.9/pc
Packaging Details:	Industrial Ethernet PoE Switch Standard Export Package
Delivery Time:	2-7 working days
Payment Terms:	Western Union, L/C, T/T, MoneyGram
Supply Ability:	2000 pcs/per month

Contact Now

Detailed Product Description

Keywords:	Gigabit PoE Ethernet Switch	PoE Standard:	IEEE802.3af/at
Mounting Options:	DIN-Rail / Wall-mount	Dimensions (WxDxH):	95 X 70x 29mm
Weight:	0.25Kg	Input Power:	12~48VDC (Terminal Block)
Power Consumption::	<125W (Non-PoE<6W)	Operating Temperature::	-40°C To 80°C (-40°F To 176°F)
Highlight:	12~48VDC PoE Ethernet Switch , 1 Gigabit PoE Ethernet Switch , FCC PoE Ethernet Switch

Mini Industrial 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch

Overview

Mini Industrial 4-Port PoE + 1-Port Gigabit Ethernet Switch with 12~48VDC Power Input

This compact, unmanaged industrial Ethernet switch features 4 PoE ports (802.3at) and 1 Gigabit RJ45 port, supporting a wide 12~48VDC power input. Designed to meet stringent industrial standards, it offers robust, reliable operation even in harsh environments with vibration, shock, and extreme temperature conditions.

The switch is CE and FCC certified, ensuring full compliance with industry safety standards. It has successfully passed the 100% burn-in test, guaranteeing long-term durability for mission-critical industrial applications. This economical solution is ideal for industrial automation, security systems, and remote monitoring networks.

Features

► 5 x 10/100/1000BASE-T ports

► 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ Injector (Port-1 to Port-4)

► 12~48VDC wide range power input

► Supports 802.3x Flow control

► Supports DIN-Rail and Wall-mount installation

► Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)

► Industry standard design, dustproof and close design IP40, rugged high-strength metal case

► -40°C to 80°C (-40°F to 176°F) operating temperature

Technical Indexes

Ethernet
Standards:	IEEE 802.3 Ethernet
	IEEE 802.3u Fast Ethernet
	IEEE 802.3ab Gigabit Ethernet
	IEEE 802.3x Full-Duplex Flow Control
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE 802.3at Power over Ethernet Plus PSE
	IEEE 802.3af Power over Ethernet Plus
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer:	1Mbits
Packet Length:	10Kbytes
MAC Address Table:	8K
Switch Fabric:	10Gbps/non-blocking
Exchange Property	Backplane bandwidth: 20Gbps; Packet forwarding rate: 14.88Mpps
Connector:	5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports 4 ports with 802.3at PoE+ injector function (Ports 1 to 4)
PoE (Power over Ethernet)
Standard:	IEEE802.3af/at
Port:	RJ45
Power Pin Assignment	4/5(+), 7/8(-)
PoE Budget:	Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	12~48VDC (Terminal Block)
Power Consumption:	<125W (Non-PoE<6W)
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
Dimensions (WxDxH):	95 x 70x 29mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
LED Indicators:
PWR	Power
L/A	Link/Activity
PoE	Max 30W per port
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55032:2017
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Ordeing Information

Model	Description
LNK-IMC005GP	Mini Industrial 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch
Mounting Options	Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	Power Supply is to be purchased separately

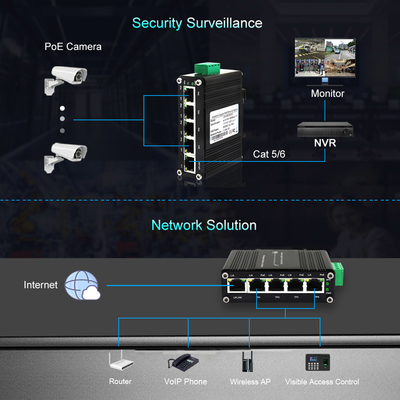

Application
