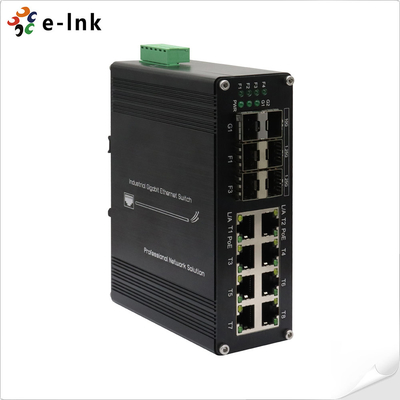

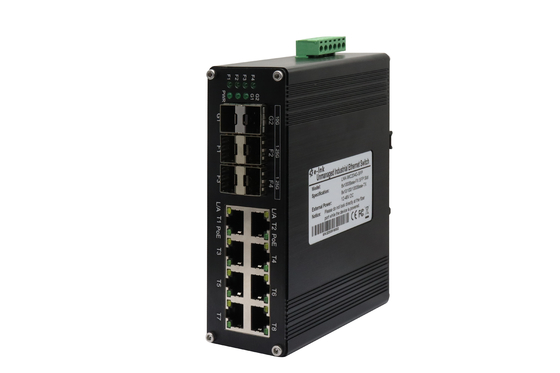

Industrial 8-Port PoE Ethernet Switch Features

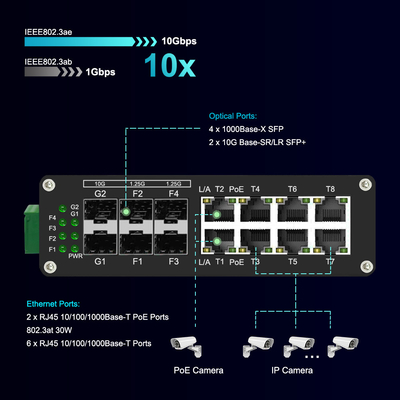

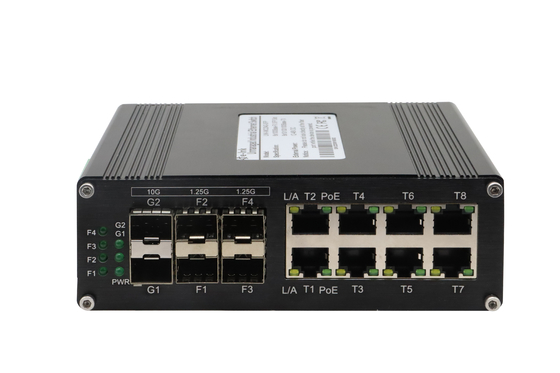

► 8× 10/100/1000BASE-T RJ45 ports + 6× 1000BASE-X SFP slots
► Auto-negotiation, auto MDI/MDIX, and full/half-duplex support on all RJ45 ports
► Compliant with IEEE 802.3af/at PoE standards
► Supports 802.3x flow control and 9KB jumbo frames
► Dual redundant power inputs
► Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)
► IP40-rated aluminum housing

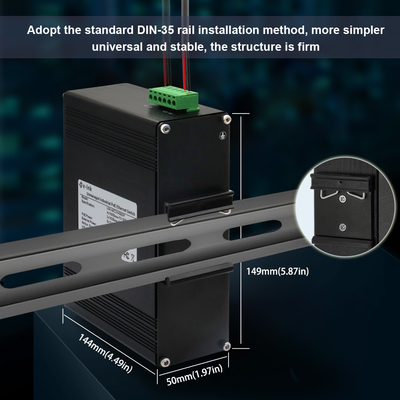

► DIN-rail mountable
► Wide operating temperature: -40°C to 80°C (-40°F to 176°F)
Industrial 8-Port PoE Ethernet Switch Technical Indexes
| Ethernet |
| Standards: |
IEEE802.3 10BASE-T |
| IEEE802.3u 100BASE-TX/FX |
| IEEE802.3ab 1000BASE-T |
| IEEE802.3z 1000BASE-X |
| IEEE802.3p QoS |
| IEEE802.1d Spanning Tree |
| Forward & Filtering Rate: |
14,880pps (10Mbps) |
| 148,800pps (100Mbps) |
| 1,488,000pps (1000Mbps) |
| Packet Buffer Memory: |
2.75M bits |
| Processing Type: |
Store-and-Forward |
| Max Packet Length: |
9K Bytes Jumbo Frame |
| Address Table Size: |
8K MAC Addresses |
| Interface |
| Connector: |
8 x RJ45 |
| Optical Port: |
6 x 1000Base-X SFP |
| PoE (Power over Ethernet) |
| Standard: |
IEEE 802.3at Power over Ethernet Plus |
| IEEE 802.3af Power over Ethernet |
| ort: |
RJ45 |
| Power Pin Assignment |
4/5(+), 7/8(-) |
| PoE Budget: |
Up to 240-watt PoE budget |
| Environmental |
| Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: |
5% to 95% non-condensing |
| MTBF |
> 200,000 hrs |
| Electrical and Mechanical |
| Input Power: |
48~57VDC, Redundant Power (6-pin Terminal Block) |
| Power Consumption: |
8W Max.(PoE in Use<240W) |
| Protection: |
| Power Input Overload: |
Automatic Resettable |
| Reverse Polarity: |
Present |
| LED Indicators: |
| Power: |
Power Status |
| Ethernet(Per Port): |
Link/Activity |
| PoE (Optional) |
PoE Status |
| Fiber: |
Gigabit SFP Port: F1~F6 |
| Dimensions (WxDxH): |
149 x 114 x 50 mm |
| Weight: |
0.55Kg |
| Casing: |
Aluminum Case |
| Mounting Options: |

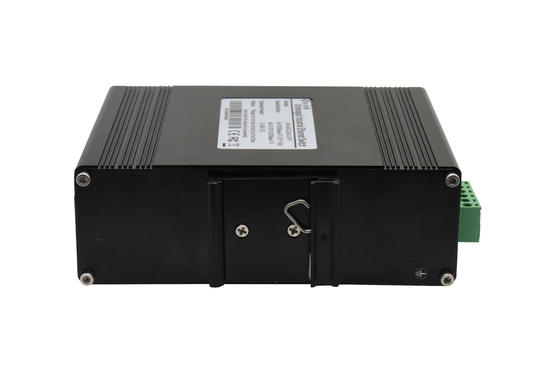

DIN-Rail mount |
| Regulatory Approvals |
| ISO9001 |
| EN55022:2010+AC: 2011, Class A |
| EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
| EN 61000-3-3: 2013 |
| EN55024:2010 |
| IEC 61000-4-2: 2008 (ESD) |
| IEC 61000-4-3: 2010 (RS) |
| IEC 61000-4-4: 2012 (EFT) |
| IEC 61000-4-5: 2014 (Surge) |
| IEC 61000-4-6: 2013 (CS) |
| IEC 61000-4-8: 2009 (PFMF) |
|
Industrial 8-Port PoE Ethernet Switch Ordering Information
| Model |
Description |
|
LNK-IMC2X4S8GP
|
Industrial 8-Port 10/100/1000T 802.3at PoE + 4-Port 1G SFP + 2-Port 10G SFP+ Ethernet Switch
|
| SFP Options |
► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. |
| Mounting Options |
► Default DIN-Rail Bracket installed |
| Power Options |
► DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
Industrial 8-Port PoE Ethernet Switch Application
