Mini Industrial 10 Ports 12~48VDC Input Compact Ethernet Switch

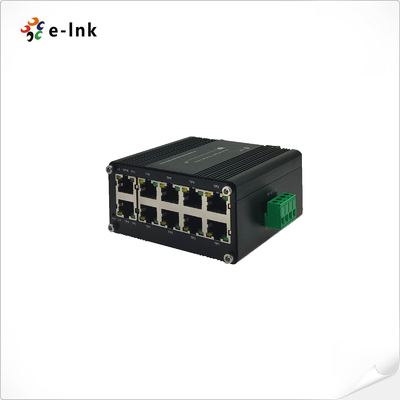

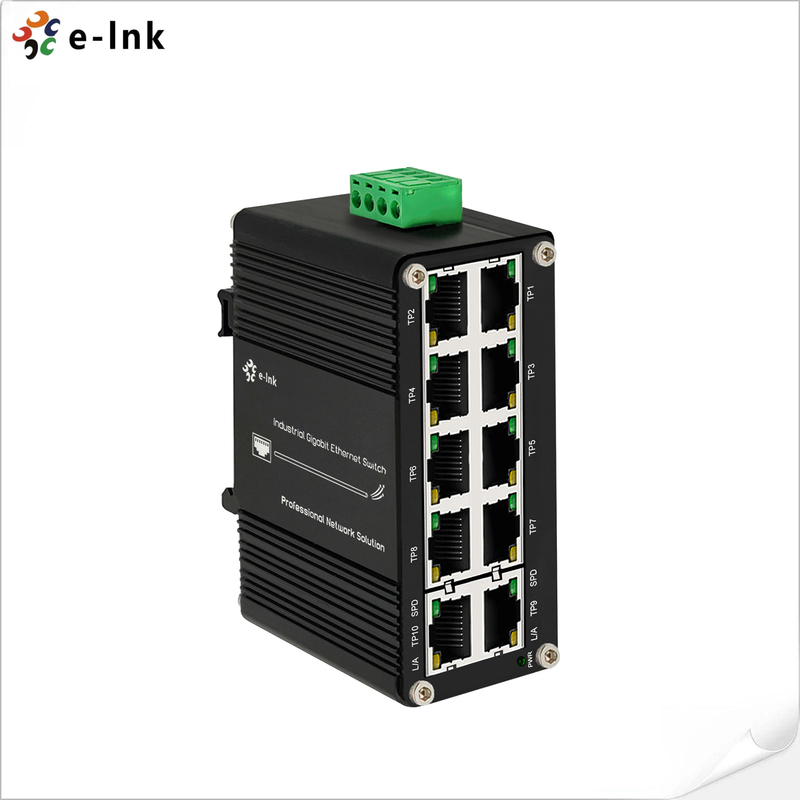

Large Image : Mini Industrial 10 Ports 12~48VDC Input Compact Ethernet Switch

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, FCC
Model Number:	LNK-IMC010G

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	US$29.9/pcs
Packaging Details:	PoE Switch Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Operating Temperature:	-40°C To 80°C (-40°F To 176°F)	Input Power:	12~48VDC
Dimensions:	95 X 88 X 46mm	Weight:	300g
Casing:	Aluminum Case	Mounting Options:	DIN-Rail / Wall-mount

Mini Industrial 10-Port 10/100/1000T Compact Ethernet Switch
Overview

LNK-IMC010G Industrial Ethernet Switch

Compact 10-port Gigabit switch featuring:

10×10/100/1000TX ports

12-48VDC wide input

-40~75°C operation

Vibration/shock proof

CE/FCC certified

Built for harsh industrial environments with plug-and-play simplicity.

Key benefits:

✓ Rugged industrial design

✓ Reliable performance

✓ Cost-effective solution

✓ Easy deployment

Features
Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex
12~48VDC wide range power input
Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)
Industry standard design, dustproof and close design IP40, rugged high-strength metal case

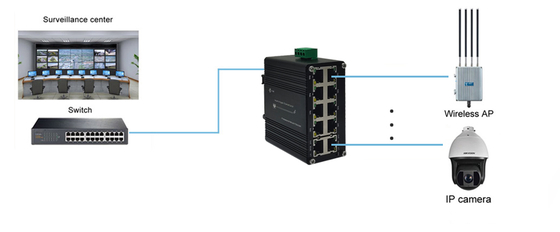

Application
Mini Industrial 10 Ports 12~48VDC Input Compact Ethernet Switch 0

Technical Indexes

Ethernet
Standards:	IEEE 802.3 Ethernet
	IEEE 802.3u Fast Ethernet
	IEEE 802.3ab Gigabit Ethernet
	IEEE 802.3x Full-Duplex Flow Control
	IEEE 802.3az Energy Efficient Ethernet (EEE)
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer:	2Mbits
Packet Length:	9216bytes
MAC Address Table:	4K entries
Switch Fabric:	20Gbps/non-blocking
Switch Throughput (packet per second)	14.88Mpps@64bytes
Connector:	10 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	12~48VDC Redundant power with polarity reverses protection function
Power Consumption:	<10W
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
Dimensions (WxDxH):	95 x 88 x 46mm
Weight:	300g
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
LED Indicators:
PWR	Power
L/A	Link/Activity
SPD	Data Rate
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55032:2017
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC010G	Mini Industrial 10-Port 10/100/1000T Gigabit Ethernet Switch
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately

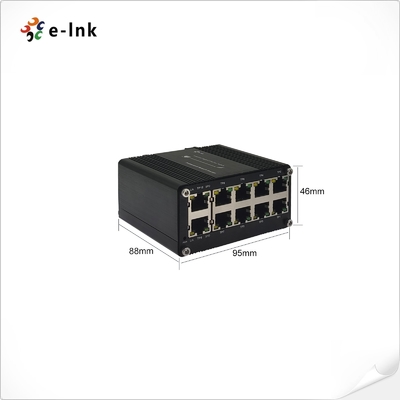

Dimension&Size
