Mini 4K/60Hz HDMI 2.0 KVM USB over Fiber Optic Extender
Overview

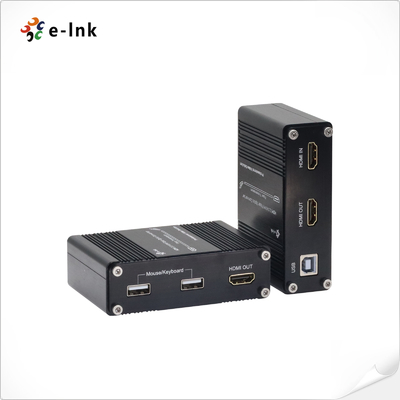

Mini 4K/60Hz HDMI 2.0 KVM USB over Fiber Optic Extender includes a Transmitter and
Receiver, enabling the extension of HDMI 2.0 and USB HID signals up to 300 meters (984 feet)
over LC OM4 multimode fiber optic cable.
It supports stunning 4K UHD resolution at 60Hz with 4:4:4 chroma sampling, delivering
crystal-clear image quality on remote displays.
The Transmitter features a distribution chip that splits one HDMI input into two outputs:
– One local HDMI output
– One optical output via Wavelength-Division Multiplexing (WDM), which converts four
high-speed differential signals into a single optical signal using a photoelectric engine.
The Receiver converts the optical signal back into HDMI, ensuring reliable and high-quality
transmission across long distances.
Features
► Transmits 4K HDMI2.0 video signals up to 300 meters over OM4 MMF
► Support keyboard and mouse signal transmission
► Uncompressed HDMI 2.0 video transmission up to 4K@60Hz 4:4:4
► Transmitter support local loop output

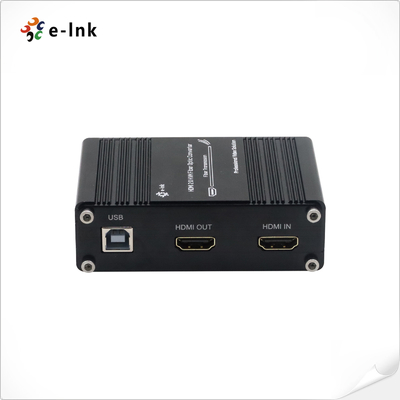

► Local module connectors: HDMI input, USB input (type B-female) for keyboard /

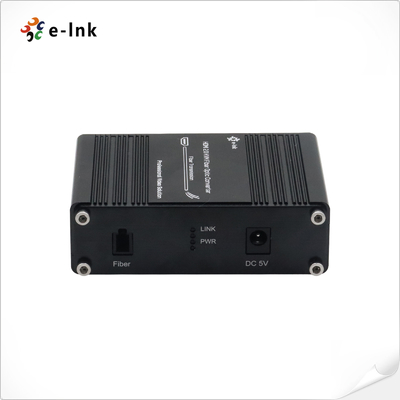

mouse, fiber optic connector (LC-female), and 5 VDC power connector (DC-jack-female)

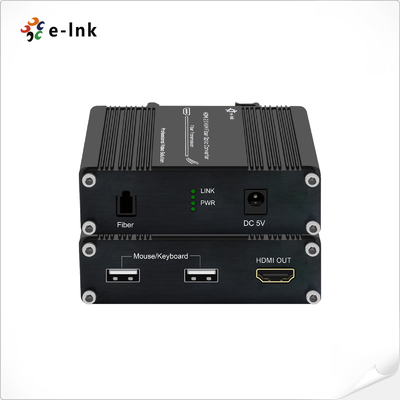

► Remote module connectors: HDMI output for remote display, 2 USB outputs
(keyboard / mouse), fiber optic connector (LC-female), and 5 VDC power connector
(DC-jack-female)
► Simple to install, plug and play
Technical Indexes
| Parameter | Description |
| Video | Standards | HDMI 2.0 and HDCP 2.2 |
| Maximum pixel clock | 600MHz |
| Data speed | 18Gbps(6 Gbps/CH) |
| Resolution range | 4K@60Hz/4K@30Hz/1080p/720p |
| Connector | Female HDMI type A |
| Impedance | 100Ω |
| K/M | Interface | PC: MINI-USB
Keyboard And Mouse: USB-A |
| Optical fiber | Interface | LC connector |
| Fiber type | OM4 Multimode |
| Wavelength | 850nm |
| Interface bandwidth | 18Gbps |
| Transmission distance | OM4 Multimode fiber: 300M |
| Other | Power supply | The power adapter: DC 5V |
| Power dissipation | TX:＜1.5W; RX:＜1W |
| Temperature | Operating: 0℃ ~ +55℃ |
| Humidity | Operating: 5% ~ 90% |
| Dimension (LxWxH) | 93 x 70 x 28(mm) |
| Gross weight | 0.25KG |
| The warranty | 1-year free warranty |
Note: This product supports EDID transparent transmission
Ordering Information
| Model | Description |
| LNK-109KVM | Uncompressed Mini 4K HDMI 2.0 KVM USB over Fiber Optic Extender, OM3/4 Multimode Fiber, LC, 300 meters |

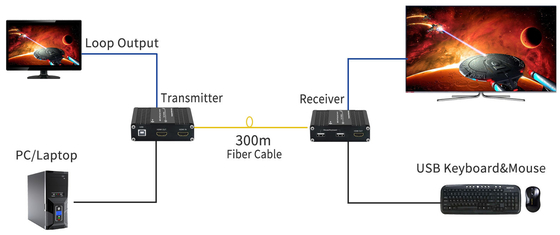

Application
