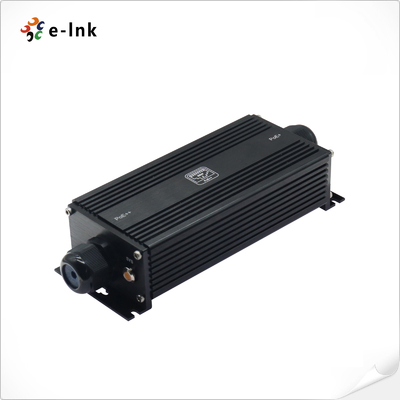

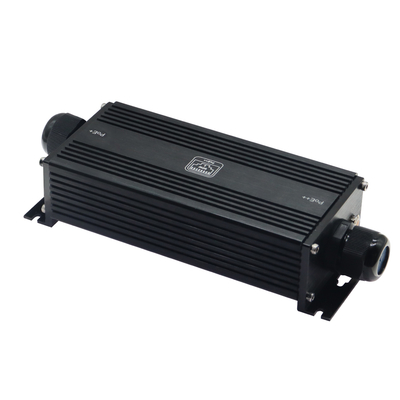

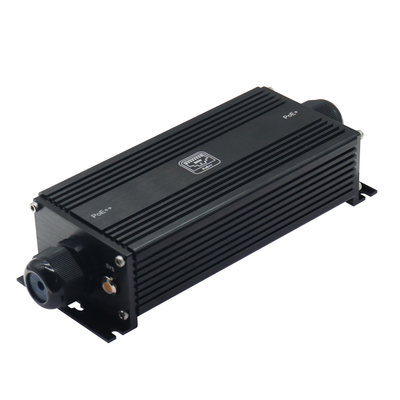

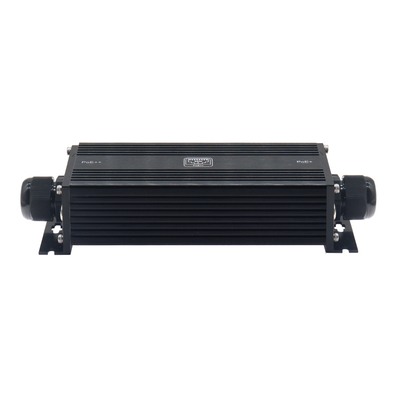

Industrial PoE Extender – 1-in 1-out, Gigabit, 90W, IP67, -40°C to 80°C

Large Image : Industrial PoE Extender – 1-in 1-out, Gigabit, 90W, IP67, -40°C to 80°C

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE/FCC/Rohs
Model Number:	LNK-WP-IPE101

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	Negotiation
Packaging Details:	Industrial Gigabit PoE Extender Standard Export Package
Delivery Time:	2-5 Working days
Payment Terms:	Western Union, L/C, T/T, MoneyGram, Paypal
Supply Ability:	2000 pcs/per month

Contact Now

Detailed Product Description

PoE Standard:	IEEE 802.3af/at/bt	Protection Level:	IP 67
Casing:	Aluminum Case	Weight:	0.6 Kg
Size:	195 X 75 X 46 Mm	PoE Output Power:	Maximum 65W

IP67 Waterproof Industrial Gigabit PoE Extender (1 x Input 1x Output)

overview

LNK-WP-IPE101 is an industrial-grade IP67-rated Gigabit PoE Extender (1-in 1-out, 90W) that utilizes Power over Ethernet technology. It extends 1000Mbps Ethernet signals up to 100 meters, significantly increasing transmission distance while providing standard PoE power supply of 50-57V to communication devices.

Featuring industrial-grade housing and waterproof terminal design with IP67 protection rating, this extender operates within a wide temperature range of -40°C to 80°C, ensuring reliable performance in harsh environments. It is ideally suited for security surveillance and network engineering applications.

Features

IP67-rated aluminum case
10/100/1000Mbps Ethernet Ports
All ports support IEEE 802.3af/at/bt standards
1 x Input, 1 x Output
Enables 100-meter extension of Ethernet connectivity with PoE
Wall-mountable design
Wide operating temperature range: -40°C to 80°C
No external power cable required for installation
Plug-and-play functionality
Supports 2K MAC address table for connecting more
10kB jumbo frame support in 1000Mbps full-duplex mode

Technical Indexes

Ethernet Port
PoE Input Port	1 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands
PoE Output Port	1 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands
Cascade Connection	Support 3 grade
Power over Ethernet
PoE Standard	IEEE 802.3af/at/bt
PoE Power Supply Type	Mid-span and End-span
PoE Pin Assignment	1/2(+), 3/6(-), 4/5 (+), 7/8 (-)
Input Voltage	IEEE802.3 bt 90W
PoE Output Power	Maximum 65W
Single Port PoE Output	Maximum 60W
Switch Property
Standards	IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3ab Gigabit Ethernet
Forwarding Modes	Store and Forward
Transmission Distance	Each extender extends by 100m, max 3 grade Cascade, total 400m.
MAC Table	2K
Switching Capacity	6Gbps
Packet Forwarding Rate	4.46Mpps
Flow Control	IEEE 802.3x pause frame for full duplex, Back pressure for half duplex
Jumbo Frame	10K bytes
Environment
Surge Immunity	6KV, Standard: IEC
ESD Protection	6kV Contact Discharge; 8kV Air Standard: IEC 61000-4-2
Protection Level	IP 67
Explosion-Proof Rating	IK10
Operating Temperature	-40°C to 80°C (-40°F to 176°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Operating Humidity	0~95% (non-condensing)
Physical Parameter

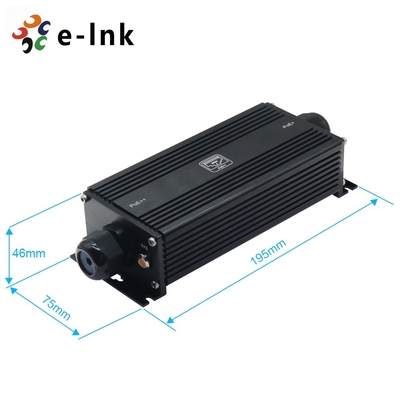

Dimensions (WxDxH)	195 x 75 x 46 mm
Weight	0.6 kg
Casing	Aluminum Case
Mounting Options	Wall-mount
Certiﬁcations
Certiﬁcations	CE, FCC, RoHS

Ordering Information

Model	Description
LNK-WP-IPE101	IP67 Waterproof Industrial Gigabit PoE Extender 1 x Input 1 x Output
Mounting Options	Wall Mount Bracket is included.
