24-Port PoE+ Gigabit Switch + 4 SFP - 802.3at L2+ Managed Rack Mount for Remote Sites

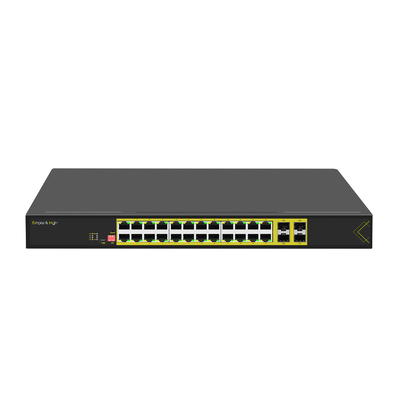

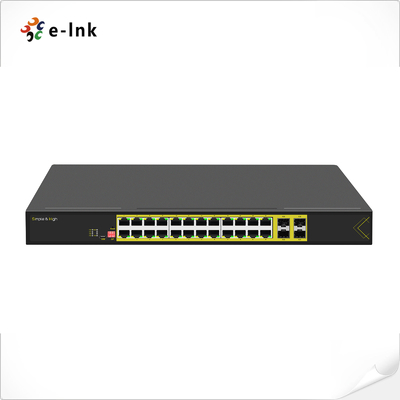

Large Image : 24-Port PoE+ Gigabit Switch + 4 SFP - 802.3at L2+ Managed Rack Mount for Remote Sites

Product Details:

Place of Origin:	China
Brand Name:	E-Link
Certification:	CE/FCC/Rohs/ISO9001
Model Number:	LNK-424M-SFP series

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	Negotiate with the seller
Packaging Details:	Managed Rack Mount SFP Ethernet Switch Standard Export Package
Delivery Time:	2-5 Working Days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000 Per month

Contact Now

Detailed Product Description

Ethernet Port::	24 X 10/100/1000Base-T RJ45	Optical Port::	4 X 1000Base-X SFP
Management Port::	1 X USB-C	Input Power::	AC 100~240V
Dimensions::	440mm X 300mm X 45mm	Mounting Options::	Rackmount

L2+ Managed Rack mount 24-Port 10/100/1000T 802.3at PoE + 4-Port 1000X SFP PoE Switch

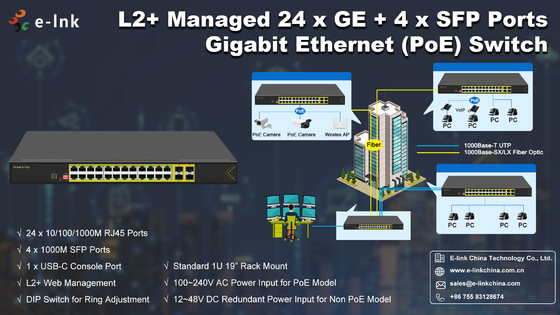

Overview

LNK-424M-SFP series is the L2+ managed rack mount 24-port 10/100/1000Base-T 802.3at PoE + 4-port

1000Base-X SFP Ethernet switch. The switch has 24 TP ports and 4 fiber ports. The TP (RJ45) supports

10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; the 1000Base-X SFP port

supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product

is a great choice for integrating networks consisting of network devices such as IP cameras and wireless

access points between remote locations.

Features

Support 24x10/100/1000Base-T + 4x1000Base-X SFP
10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
IEEE802.3af/at compliant
Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all
9K Bytes Jumbo Frame
IEEE 802.3az Energy Efficient Ethernet (EEE)
Supports 1U 19” Rack mount installation

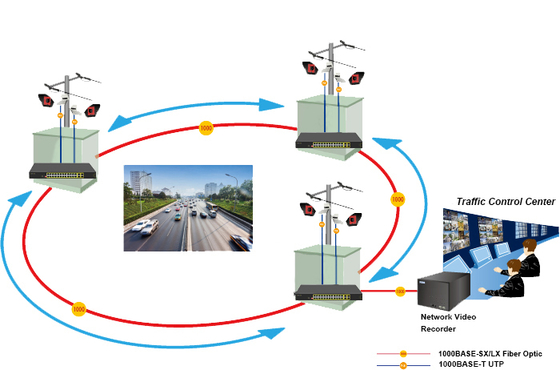

Application

IP Surveillance
Wireless Access Point (WAP) Connectivity
Office & Enterprise Networks
Fiber Uplink & Backbone Expansion

Technical Indexes

Ethernet
Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX/FX
	IEEE802.3ab 1000BASE-T
	IEEE802.3z 1000BASE-X
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	12M bits
Processing Type:	Store-and-Forward
Backplane bandwidth	110Gbps
Max Packet Length:	9K Bytes Jumbo Frame
Address Table Size:	8K MAC Addresses
Interface
Ethernet Port:	24 x 10/100/1000Base-T RJ45
Optical Port:	4 x 1000Base-X SFP
Management Port:	1 x USB-C
PoE (Power over Ethernet)
Standard:	IEEE 802.3at Power over Ethernet Plus
	IEEE 802.3af Power over Ethernet
Port:	RJ45
Power Pin Assignment	1/2(+), 3/6(-), 4/5(+), 7/8(-)
PoE Budget:	Up to 400-watt PoE budget
Environmental
Operating Temperature:	0°C to 55°C (-40°F to 176°F)
Storage Temperature:	-40°C to 75°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	AC 100~240V
Power Consumption:	400W Max.
DIP Switch
4-digit DIP switch function	DIP	Function	Settings
	SW 1	Reserved	ON - Reserved	OFF - Reserved
	SW 2	Ring Management	ON - Disabled	OFF - Enabled
	SW 3	Reserved	ON - Reserved	OFF - Reserved
	SW 4	Reserved	ON - Reserved	OFF - Reserved
LED Indicators:
PWR:	Power Status
SYS	System Status
PoE:	Link/Activity, 1~24
Fiber:	Gigabit SFP Port: F25~F28
Hardware:
Dimensions (L x W x H):	440mm x 300mm x 45mm
Weight:	4.0Kg
Casing:	Metal Case
Mounting Options:	Rackmount
Management Features
System Status	Device Information, Device Status
Port Config	Port Config, DDM, Rate Control, Storm Control, PoE
Link Layer	QoS, VLAN, MAC VLAN, VLAN MAP, IP VLAN, Pro VLAN, IGMP Snooping, Static Multicast List, LLDP, Port Isolate, Port Protect, MAC ACL, IP ACL, Black & White Lists
Link Backup	ERPS, Port Trunking, RSTP, LACP
Access Control	User Password, Access Control, Port Authentication, Authentication DB, MAC Port Locking, MAC Learn Limit
Remote Monitor	SNMP Config
Statistics	Receive Frame, Send Frame, Sum Statistics, MAC Address List
Network Diagnosis	Port Mirroring, Network Diagnosis
Management	Time Config, Device Address, System Information, System Log, File Management
Default IP	192.168.40.253
Default User Name	admin
Default Password	admin
Regulatory Approvals
ISO9001, CE, RoHS, FCC

Ordering Information

Model	Description
LNK-424MP-SFP	L2+ Managed Rack mount 24-Port 10/100/1000T 802.3at PoE + 4-Port 1000X SFP PoE Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Rack mount, mounting clip is included.
Power Options	►Power Cord is included
