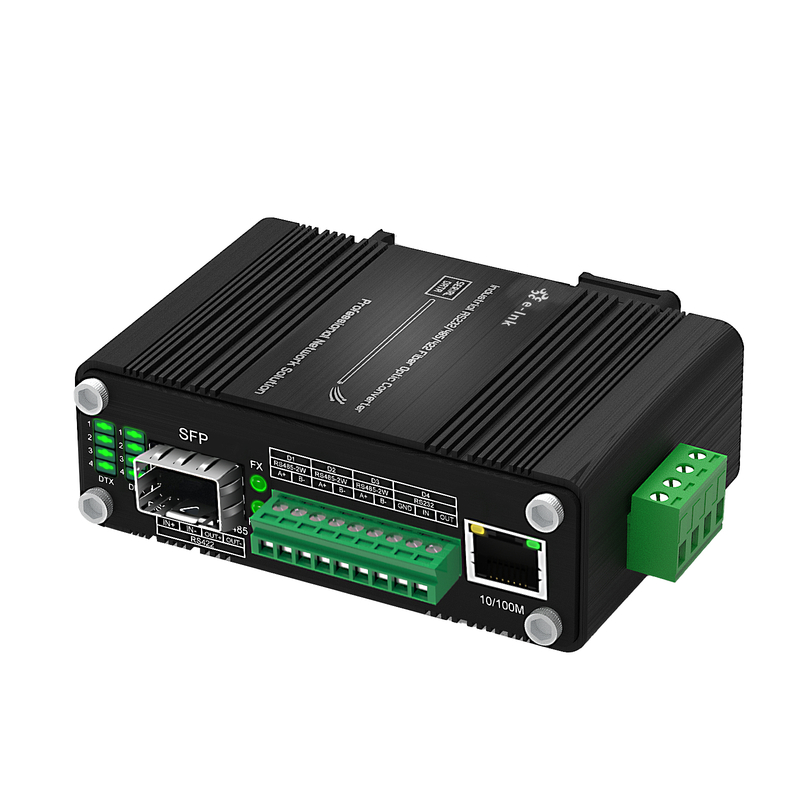

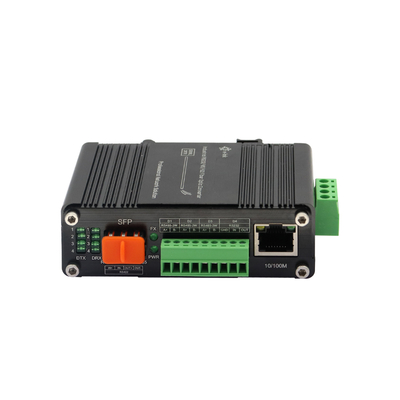

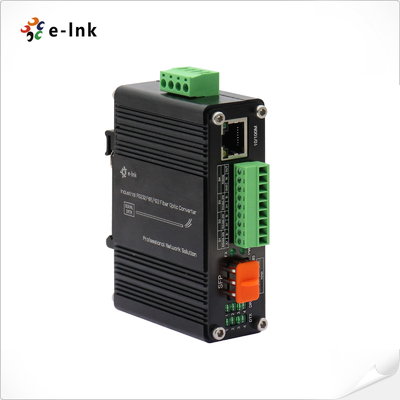

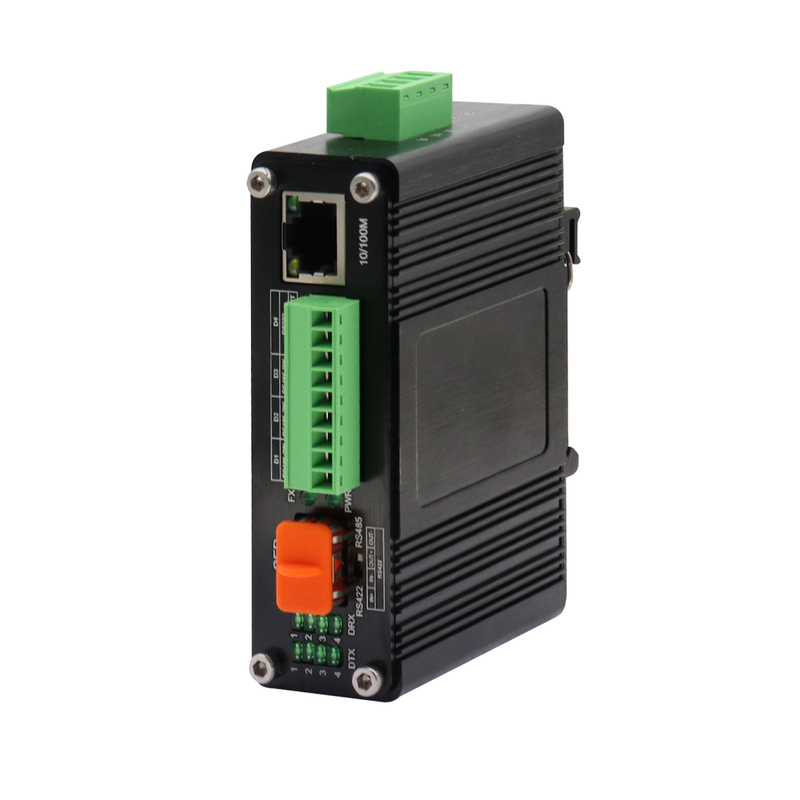

Mini Industrial 10/100Base-T to 100Base-X SFP Fiber Ethernet Media Converter with 1Ch RS232/RS485/RS422
Mini Industrial Fiber Media Converter Overview
LNK-IMCRS1100-SFP is a DIN rail type media converter that supports external SFP Modules
and meets EN55022 standard. It is a hardened grade product whose operating temperature
range is -40°C to +75°C. LNK-IMCRS1100-SFP supports 10/100Base-T and 100Base-X SFP
and RS232/RS485/RS422 serial data. The Ethernet port supports both half-duplex and full-duplex
mode. Users can use different type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as
needed. It converts a standard RS232/RS485/RS422 signal / RJ45 data to a fiber optic link as
to extend the signal up to 2Km on multimode fiber and 80Km on single mode fiber.
Mini Industrial Fiber Media Converter Features
-
1× 10/100BASE-T RJ45 port with auto MDI/MDI-X
-
1× 100Base-FX SFP fiber slot
-
1× multi-protocol serial port (RS232/RS485/RS422)
-
Supports full/half-duplex and auto-negotiation
-
Compliant with IEEE 802.3az Energy Efficient Ethernet (EEE)
-
Diagnostic LED indicators for real-time monitoring
-
Built-in surge and static protection
-
Wide-range 12~48VDC terminal block power input
-

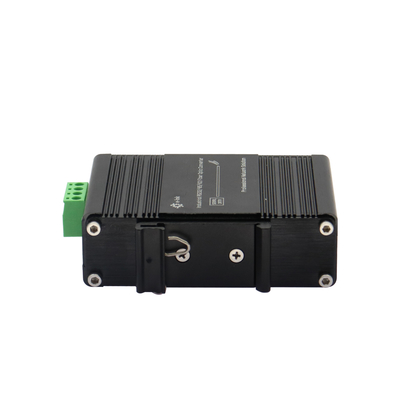

DIN-rail and wall-mount installation support
-
Wide operating temperature: -40°C to 75°C (-40°F to 167°F)
Mini Industrial Fiber Media Converter Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE802.3 10Base-T
|
|
IEEE802.3u 100Base-TX/FX
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE)
|
|
Processing Type:
|
Store-and-Forward
|
|
Forward Filter Rate:
|
14,880pps (10Mbps)
|
|
148,800pps (100Mbps)
|
|
Packet Buffer Memory:
|
1 Mbit
|
|
Max Packet Length:
|
9K Bytes
|
|
Address Table Size
|
2K MAC Addresses
|
|
Interface
|
|
Connector:
|
1x RJ45
|
|
Optical Port:
|
1 x SFP 100Base-FX
|
| Serial Port: |
1 x RS232/RS485/RS422 Industrial Terminal
|
| RS232/RS485/RS422 |
| Serial Interface |
Industrial Terminal |
| Signal Ports |
1Ch RS232 - 1Mbps
1Ch R485 - 1Mbps
2Ch RS485H- 2Mbps
2Ch RS485H can be grouped into 1Ch High Speed RS422
|
| Baud Rate |
RS485/RS422/RS232:4800-460800 |
| Standard |
EIA /TIA RS232/485/422 |
| Serial Distance |
RS232: 15 meters, RS485/422: 1000 meters |
| Rate |
Max 2Mbps |
| RS-232 |
TXD, RXD, GND - Bi-directional |
| RS-485 |
D+, D-, GND - Bi-directional |
| Static protection |
15KV electric static discharge (ESD) protection |
| Surge protection |
1500W/sec surge protection |
|
|
Electrical and Mechanical
|
|
Input Power:
|
12~48VDC, 4-pin terminal block
|
|
Power Consumption:
|
3W Max.
|
|
LED Indicators:
|
|
PWR:
|
Power Status
|
|
FX:
|
Data LINK Status
|
|
10/100M:
|
Ethernet Status
|
|
DTX 1 2 3 4:
|
Serial Data Status
|
|
DRX 1 2 3 4
|
Serial Data Status
|
|
Dimensions (WxDxH):
|
95 x 70 x 30 mm
|
|
Weight:
|
0.25Kg
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
DIN-Rail / Wall-mount
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 75°C (-40°F to 167°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF
|
> 200,000 hrs
|
|
Regulatory Approvals
|
ISO9001, CE, FCC, RoHS |
|
EMI:
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024: 2010
|
|
EMS:
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)
|
Mini Industrial Fiber Media Converter Ordering Information
| Model |
Description |
| LNK-IMCRS1100-SFP |
Mini Industrial 10/100Base-T to 100Base-X SFP Fiber Ethernet Media Converter with 1Ch RS232/RS485/RS422 |
| SFP Options |
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. |
| Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options |
► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
|

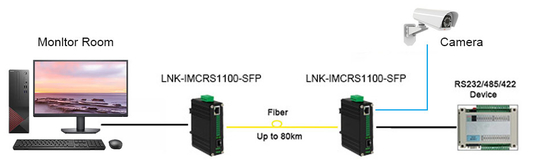

Mini Industrial Fiber Media Converter Application
