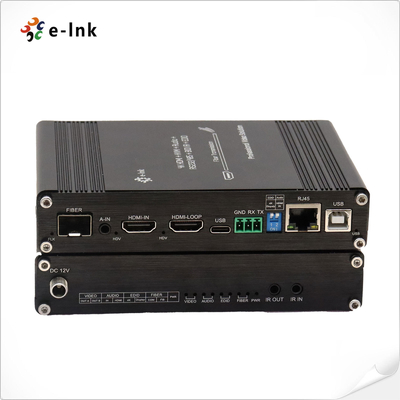

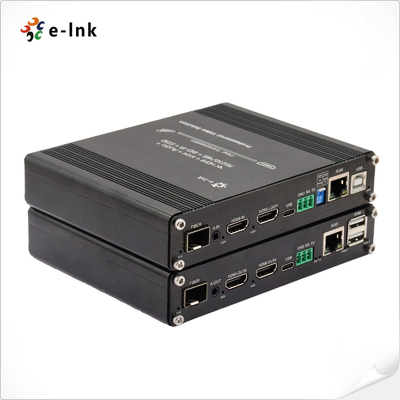

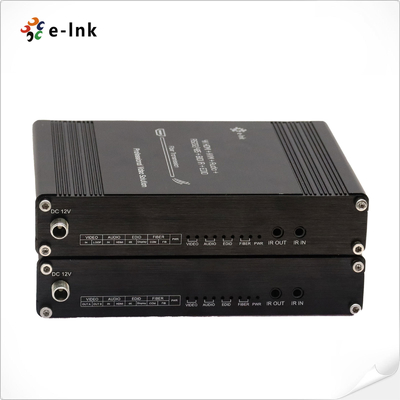

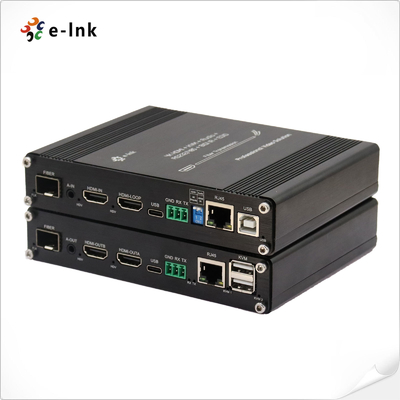

Multi-Function 4K60Hz HDMI Fiber Optic Extender - KVM, IR, RS232, EDID & Network Transmission

Large Image : Multi-Function 4K60Hz HDMI Fiber Optic Extender - KVM, IR, RS232, EDID & Network Transmission

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE FCC RoHS ISO9001
Model Number:	LNK-4KH-1D1U1E1A1R

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	please contact seller
Packaging Details:	HDMI Over Fiber Optic Extender Standard export package
Delivery Time:	3-7 working days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	10000 per month

Contact Now

Detailed Product Description

Video Standards:	HDMI V1.3/1.4/2.0	Fiber Interface:	SFP Modules Included, LC Or SC
Power Supply:	DC 12V/1A	Dimension:	14811528mm
Weight:	1kg	The Warranty:	1-year Warranty

Multi-functional 4K 60Hz HDMI KVM Fiber Extender

Overview

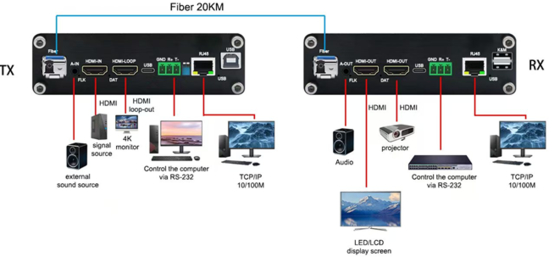

The LNK-4KH-1D1U1E1A1R Fiber optic extender provides extension of HDMI signals long distances

over one fiber optic cable, it supports high resolution up to 4K60Hz HDMI, and with KVM, Audio, RS232

or RS485, 10/100M TCP/IP, IR, EDID function. The extender can use for a wide range of applications

requiring long distance transmission of high resolution with high quality by its good stability and powerful

security.

Features

Support HDMI video resolution up to 4096*2160P@60Hz
Supports video resolutions up to 4K2K@50/60Hz with 4:4:4 chromatic sampling
Complies with HDMI 2.0b, HDCP 2.2, and DVI 1.0 standards
Support HDMI video loop out
Support KVM
Support RS232 or RS485
Support 10/100M TCP/IP
Support Bidi IR
Support DIP Switch with Audio Separation and EDID function

Technical Indexes

Parameter		Description
Transmitter Interfaces	Standards	1 x HDMI 2.0 Input (4K@60Hz) 1 x HDMI 2.0 Loop-out (4K@60Hz) 1 x Audio Input 1 x SFP 1 x RS232/RS485 2 x IR 1 x RJ45(10/100M, TCP/ IP) 1 x USB-B
Receiver Interfaces	Standards	2 x HDMI 2.0 Output (4K@60Hz) 1 x Audio Output 1 x SFP 1 × RS232/RS485 2 × IR 1 x RJ45(10/100M, TCP/ IP) 2 x USB-A
Video Resolution	HDMI	SMPTE:720p\|1080p12160p VESA:800x600\|1024x768\|1280x720\|1280x800\| 1280x960\|1280x1024\|1400x1050\|1600x1200\| 1920x10801920x1200\|2048x1152\|2560x1600\| 3840x1080\|3840x2160\|4096x2160
Video Resolution	Refresh Rate	23.98/24/25/29.97/30/50/59.94/60Hz
Supported Standards	HDMI	1.3,1.4,2.0
Supported Standards	DVI	1.0
Audio	Interface	3.5mm Audio Interface
Audio	Signal type	Operate via DIP switch, Up for HDMI Internal Audio Down for External Audio
KVM	Interface	TX: 1 x USB-B RX: 2 x USB-A
KVM	latency	Minimum latency
RS232/RS485	Interface	Industrial terminal
	Signal direction	RS232 default, RS485 optional
	Baud rate	600~115200bps, 8bit, 1 stop bit, no check.
	Data bits	8
USB-C	Function	Connect PC to check device info, upgrade software and customize resolution
TCP/IP	Interface	RJ45
TCP/IP	Data Rate	10/100Mbps
Fiber	Interface	SFP Modules Included, LC or SC
	Fiber type	MMF or SMF
	Transmission distance	MMF 330M or SMF 20/40/60/80KM
Other	Power supply	DC 12V/1A
	Power dissipation	MAX 10W
	Temperature	Operating: -25℃ ~ +55℃ Storage: -40℃ ~ +85℃
	Humidity	20% ~ 90%
	Weight	1kg
	Dimension (LxWxH)	14811528mm
	The warranty	1-year warranty
	Work Time	7x24 Hours

Ordering Information

Model	Description
LNK-4KH-1D1U1E1A1R	Multifunctional 4K60Hz HDMI Fiber Extender, with KVM, Audio, RS232 or RS485, 10/100M TCP/IP, IR, EDID function, MMF 330M or SMF 20/40/60/80KM, LC or SC.
