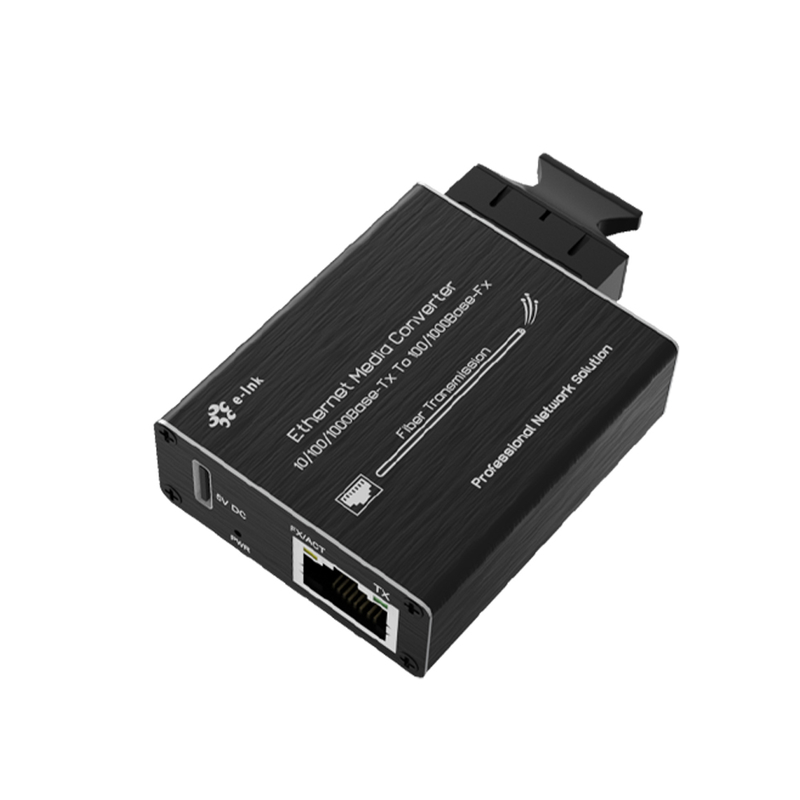

Micro type 10/100/1000Base-Tx to 100/1000Base-Fx Ethernet Media Converter
Mini Ethernet Media Converter Overview
This high-performance media converter fiber networks, converting 10/100/1000Base-T electrical signals
to 100/1000Base-SX/LX optical signals. Compliant with IEEE 802.3/u/z/ab standards,
it extends transmission distances from 100m (copper) up to 20km (120km max with fiber).
Key Features:
✔ Dual-Mode SFP Port – Supports both 100Mbps and 1000Mbps fiber (auto-detection)
✔ Ultra-Compact Design – Space-saving, lightweight, and easy to integrate
✔ Flexible Fiber Options – Multi-mode/Single-mode (dual/single fiber)
✔ Extended Reach – 20km standard (up to 120km with single-mode fiber)
✔ Broad Compatibility – Works with existing 10/100/1000Mbps Ethernet devices
Mini Ethernet Media Converter Features
-
1-Port 10/100/1000BASE-T RJ45 with Auto MDI/MDI-X Function
Provides flexible copper connectivity with automatic cable type detection, eliminating the need for crossover cables and simplifying installation.
-
1 SC Fiber Port with Auto-Detection (100BASE-FX / 1000BASE-X)
Supports dual-mode fiber operation with automatic speed and mode detection, ensuring compatibility with various fiber infrastructures.
-
Compact Micro-Sized Design
Features an ultra-small form factor ideal for space-constrained environments and discreet installations.
-
USB-Powered Operation (5VDC Input)
Enables convenient power sourcing from USB ports or adapters, enhancing portability and deployment flexibility.
-
Auto-Sensing Full/Half-Duplex Support
Automatically detects and configures optimal duplex settings for seamless integration with different network equipment.
-
9K Jumbo Frame Support
Enhances data transmission efficiency for large file transfers and bandwidth-intensive applications.
-
Auto MDI/MDI-X Detection
Simplifies installation by automatically recognizing and adapting to cable wiring configurations.
-
Multiple Fiber Configuration Options
Available in single-mode dual fiber, multi-mode dual fiber, and single-mode single fiber variants to match specific application requirements.
Mini Ethernet Media Converter Technical Indexes
| Parameter |
Specifications |
| Access mode |
10/100/1000Mbps Gigabit Ethernet |
| Standard |
IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet |
| Fiber Port |
1 SC Fiber Port, 100Base-FX or 1000Base-X dual mode (auto detection)
|
| Wavelength |
850nm/1310nm/1550nm |
| Transmission distance |
multi-mode Dual-fiber: 220m (62.5/125μm)/550m (50/125μm)
single mode Dual-fiber: 20/40/60/80 Km
single mode Single fiber: 20/40/60/80 Km
Category-5 twisted pairs: 100m
|
| Port |
One RJ45 port: for connecting with STP/UTP cat5/6 twisted pairs
One optical port: Multi-mode Dual-fiber: SC (50, 62.5/125μm)
Single mode Dual-fiber: SC (9/125μm)
Single mode Single fiber: SC (9/125μm)
|
| Conversion means |
Media conversion |
| LFP |
Not Support |
| BER |
<10-9 |
| MTBF |
100,000 hours |
| LED indicator |
PWR (Power supply)
TX (LINK100/1000, TP cable rate 100/1000M)
FX/ACT (Optical link action /TP cable packet forwarding action)
|
| Power supply |
DC 5V (Type-C) |
| Power consumption |
3W |
| Operating temperature |
0~45ºC |
| Operating humidity |
5%~90% |
| Maintaining temperature |
-40~70ºC |
| Maintaining humidity |
5% ~ 90% non-condensing |
| Dimensions (W x D x H) |
62x 44 x 18 mm |
Mini Ethernet Media Converter Ordering Information
| Model |
Description |
|
|
| LNK-M3011 |
Micro type Media Converter: 10/100/1000Base-T to 100/1000Base-F, demi-monde, 500m, 850nm, SC, standalone, external power adaptor |
| LNK-M3011-20 |
Micro type Media Converter: 10/100/1000Base-T to 100/1000Base-F, single mode, 20km, 1310nm, SC, standalone, external power adaptor |
| LNK-M3011S-20A |
Micro type Media Converter: 10/100/1000Base-T to 100/1000Base-F, WDM (single fiber bi-direction), 20km, 1310nm TX/1550nm RX, SC, standalone, external power adaptor |
| LNK-M3011S-20B |
Micro type Media Converter: 10/100/1000Base-T to 100/1000Base-F, WDM (single fiber bi-direction), 20km, 1550nm TX/1310nm RX, SC, standalone, external power adaptor |
|
|
Mini Ethernet Media Converter Panel & Interface
