Ultra-Compact USB-Powered Gigabit Ethernet Media Converter SFP Media conversion

Large Image : Ultra-Compact USB-Powered Gigabit Ethernet Media Converter SFP Media conversion

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE FCC RoHS ISO9001
Model Number:	LNK-M3011-SFP

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Please contact seller
Packaging Details:	Ultra-Compact USB-Powered Gigabit Ethernet Media Converter SFP Media conversion Standard export package
Delivery Time:	5-10 working days
Payment Terms:	Western Union, MoneyGram, T/T
Supply Ability:	10000 per mouth

Contact Now

Detailed Product Description

Product Name:	Ethernet Gigabit Media Converter	Power Supply:	DC 5~15V (Type C)
Dimension:	78 X 27 X 18 Mm	Power:	3W
Weight:	46g	Temperature:	-40-70℃

Micro Mini 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter

Overview

LNK-M3011-SFP 10/100/1000Mbps adaptive Gigabit Ethernet media converter adopts

advanced switching technology and complies with IEEE802.3, IEEE802.3u, IEEE802.3z

and IEEE802.3ab standards. It supports the conversion between 10Base-T/100Base-TX/1000Base-T

and 100/1000Base-X, and realizes the conversion between electrical signals and optical signals.

It extends the transmission distance of copper cable network to 100 meters

This device supports multi-mode dual-fiber, single-mode dual-fiber and

single-mode single-fiber transmission, and is suitable for various network environments.

When connected to the computer USB port, the converter can automatically power off

when the computer is shut down, which is energy-efficient.

Technical Indexes

Parameter	Specifications
Access mode	10/100/1000Mbps Gigabit Ethernet
Standard	IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet

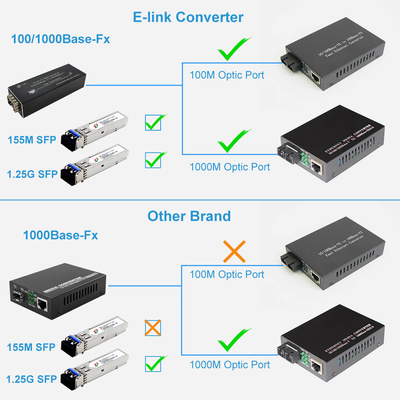

Fiber Port	SFP - 100/1000M adaptive
Wavelength	850nm/1310nm/1550nm (Based on SFP Module used)
Transmission distance	Fiber Cable: Depends on SFP Module Category-5 twisted pairs: 100m
Port	One RJ45 port: for connecting with STP/UTP cat5/6 twisted pairs One Optical port: SFP
Conversion means	Media conversion
LFP	Not Support
BER	<10^-9
MTBF	100,000 hours

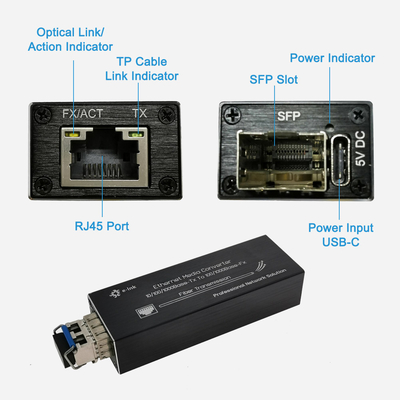

LED indicator	PWR (Power supply) TX (LINK100/1000, TP cable rate 100/1000M) FX/ACT (Optical link action /TP cable packet forwarding action)
Power supply	DC 5V (Type-C)
Power consumption	<3W
Operating temperature	0~45ºC
Operating humidity	5%~90%
Maintaining temperature	-40~70ºC
Maintaining humidity	5% ~ 90% non-condensing
Weight	46g
Dimensions (W x D x H)	78 x 27 x 18 mm

Ordering Information

Item	Description

LNK-M3011-SFP	Micro Mini Media Converter: 10/100/1000Base-T to 100/1000Base-X, SFP slot, not including SFP module, standalone, external power adaptor
