Product Details:
Payment & Shipping Terms:
|
| Video Standards: | DVI 1.0; HDCP 1.2 | Video Maximum Pixel Clock: | 165MHz |
|---|---|---|---|
| Connector: | DVI-D | Operating Temperature: | -5℃ ~ +70℃ |
| Dimensions (WxDxH): | 168*115*28mm | Power Dissipation: | MAX 6W |
| Highlight: | Multi-function DVI Fiber Converter,Cloud managed DVI Fiber Converter,1080P DVI Fiber Converter |
||

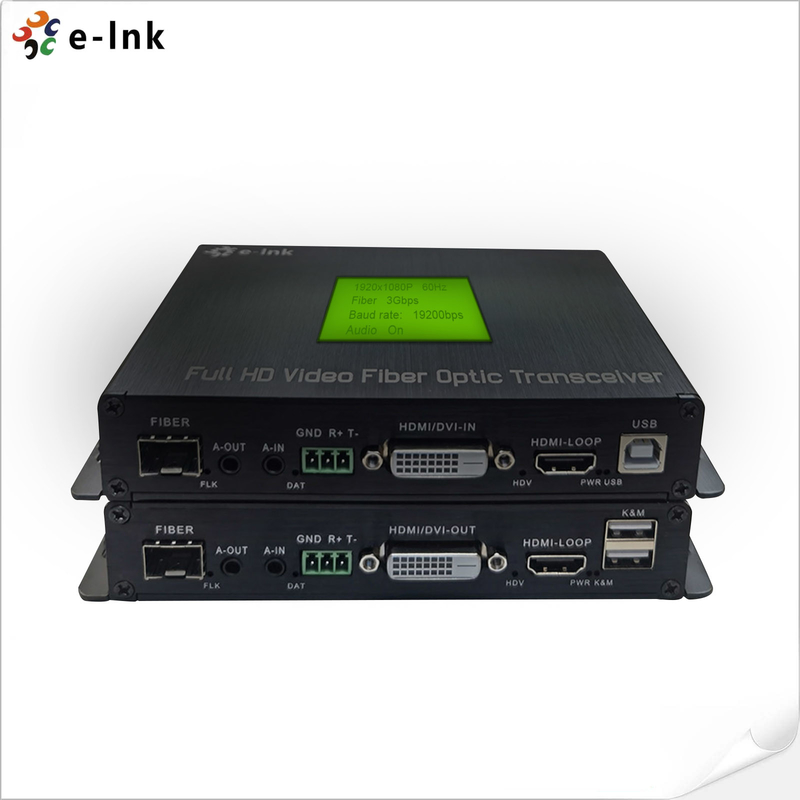

Cloud managed Multi-function DVI Fiber Converter 1Ch 1080P DVI + USB KVM + 1Ch RS232 + 1Ch Bidi Stereo Audio + GPIO
DVI Fiber Extender Advantages
► Transmits DVI video signals up to 20km over one fiber optic cable; Support HDMI loop out
► Support video resolution up to 1920*1080P@60Hz;
► Support keyboard and mouse signal transmission;
► Support external bi-directional stereo audio;
► Support RS232 signal unidirectional transmission, baud rate self-adaptive;
► Support general-purpose input/output (GPIO) signal;
► Compliance with DVI 1.0 and HDCP 1.2 standard;
► Support 4U rack-mount
DVI Fiber Extender Technical Indexes
| Parameter | Description | |
| Video | Standards | DVI 1.0; HDCP 1.2 |
| Maximum pixel clock | 165MHz | |
| Maximum data rate | 2.97Gbps | |
| Resolution |
1920*1080@60Hz 1920*1080@50Hz 1920*1080@30Hz 1920*1080@25Hz 1920*1080@24Hz 1080I@60Hz 1080I@50Hz 1280*720@60Hz 1280*720@50Hz |
|
| Connector | DVI-D | |
| Impedance | 100Ω | |
| Audio | Interface | 3.5mm earphone seat |
| Signal type | Stereo | |
| K/M(Optional) | Interface |
To PC: MINI-USB To keyboard and mouse: USB-A |
| GPIO | Interface | Industrial terminal |
| RS232 | Interface | Industrial terminal |
| Signal direction | Unidirectional | |
| Baud rate | Self-adaptive, Max:115200bps | |
| Data bits | 8 | |
| Optical fiber | Interface | LC connector |
| Fiber type | Single-mode single fiber | |
| Wavelength | Single-mode 1310nm | |
| Interface bandwidth | 3Gbps | |
| Transmission distance | standard 10km | |
| Management |
Cloud management Management Platform |
Manage and monitor working status of The devices. |
| Screen | OLED display |
Display different information of Video, Audio, RS232, Fiber, Power etc |
| Other | Power supply | The power adapter: DC 12V/1A |
| The warranty | 1-year warranty | |
Industrial Ethernet Media Converter Overview

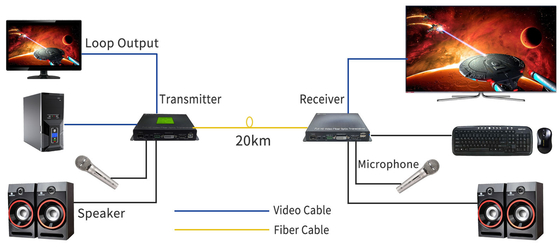

The LNK-KVM-DVI-1D1BA1GO Series are cloud managed multi-function HD Video Fiber optic extender which provides extension of DVI signals long distances over one fiber optic cable, it supports high resolution up to 1080P, KVM, RS232, GPIO signal and external audio transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Ordering Information
| Model | Description |
| LNK-KVM-DVI-1D1BA1GO | 1Ch 1080P DVI + 1Ch USB KVM + 1Ch RS232 + 1Ch Bidi Stereo Audio + 1Ch GPIO over Fiber Extender, HDMI Loop Out, SMF, 20KM |
| LNK-DVI-1D1BA | 1Ch 1080P DVI + 1Ch RS232 + 1Ch Bidi Stereo Audio over Fiber Extender, HDMI Loop Out, SMF, 20KM |
