4K HDMI 1.4 Fiber Optic Extender UHD 2160p over SMF up to 60km

Large Image : 4K HDMI 1.4 Fiber Optic Extender UHD 2160p over SMF up to 60km

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-H4K101
Document:	2E-link Video Transmission ...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pair
Price:	$435-$500
Packaging Details:	Fiber Ethernet Media Converter Standard export package
Delivery Time:	5-12working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal, Credit Card
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Video Standard:	HDMI 1.4, HDCP 1.2	HDMI 1.4, HDCP 1.2:	3840×2160@30Hz, 3D Formats
Interface:	HDMI Type-A (female), 100Ω Impedance	Fiber Connector:	LC, SFP Module Design
Fiber Options:	OM3 MMF Up To 300m; SMF Up To 60km	Power Supply:	DC 5V/2A, Max 4W Consumption
Highlight:	4K HDMI Fiber Optic Extender , HDCP 1.2 HDMI Fiber Optic Extender

4K HDMI 1.4 Fiber Optic Extender UHD 2160p over SMF up to 60km

Overview

The LNK-H4K101 HDMI Fiber Extender transmits 4K UHD and 3D video over a single optical fiber,

delivering lossless image quality up to 60km. With HDMI 1.4 compliance, EDID management, and built-in

ESD protection, it ensures smooth, stable, and secure transmission. Ideal for professional AV, medical

imaging, and security applications requiring long-distance ultra-clear video.

Features

Extends HDMI and 3D video signals up to 60km over single fiber

Supports resolutions up to 3840×2160@30Hz UHD

Compatible with HDMI 1.4 and HDCP 1.2 standards

EDID memory ensures accurate display recognition

Built-in auto adjustment for smooth and clear video output

Integrated ESD protection for system reliability

Easy plug-and-play setup, no driver needed

Technical Indexes

Parameter		Description
Video	Standards	HDMI 1.4; HDCP 1.2
	Maximum pixel clock	340MHz
	Maximum data rate	10.2Gbps
	Resolution range	Up to 3840*2160@30Hz
	Connector	Female HDMI type A
	Impedance	100Ω
Optical fiber	Interface	SFP model – LC connector
	Fiber type	Multi-mode / single-mode (optional)
	Wavelength	Multi-mode 850nm / Single-mode 1310nm(optional)
	Interface bandwidth	10Gbps
	Transmission distance	OM3 multi-mode fiber: maximum 300m, Single-mode fiber: standard 2km；maximum 60km
Other	Power supply	The power adapter: DC 5V/2A
	Power dissipation	Max 4W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	1048928mm

Ordering Information

Item	Description

LNK-H4K101	4K (3840*2160/30P) HDMI Fiber Extender, SFP Port(Excl. SFP), support 10G SFP+ module, including 1 transmitter & 1 receiver, used by pairs P.S: HDCP/EDID/CEC Function is not available when using BIDI SFP+ module

Panel

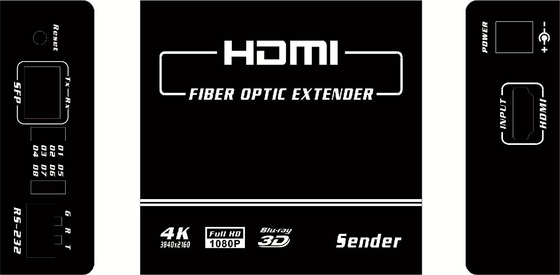

Sender

4K HDMI 1.4 Fiber Optic Extender UHD 2160p over SMF up to 60km 0

Port name	Description
HDMI IN	HDMI signal input
RESET (EDID BOTTON)	An EDID memory built into the Tx module can learn and store the display EDID info.
POWER	Power adapter socket
SFP	SFP model --- LC connector
LED indicator	Description
D1	System power indicator
D2	When press EDID BOTTON, The led will flash 3 seconds
D3	Optical fiber signal connection indicator ON:LOS OFF:OK
D4	BLINK,Source plug in

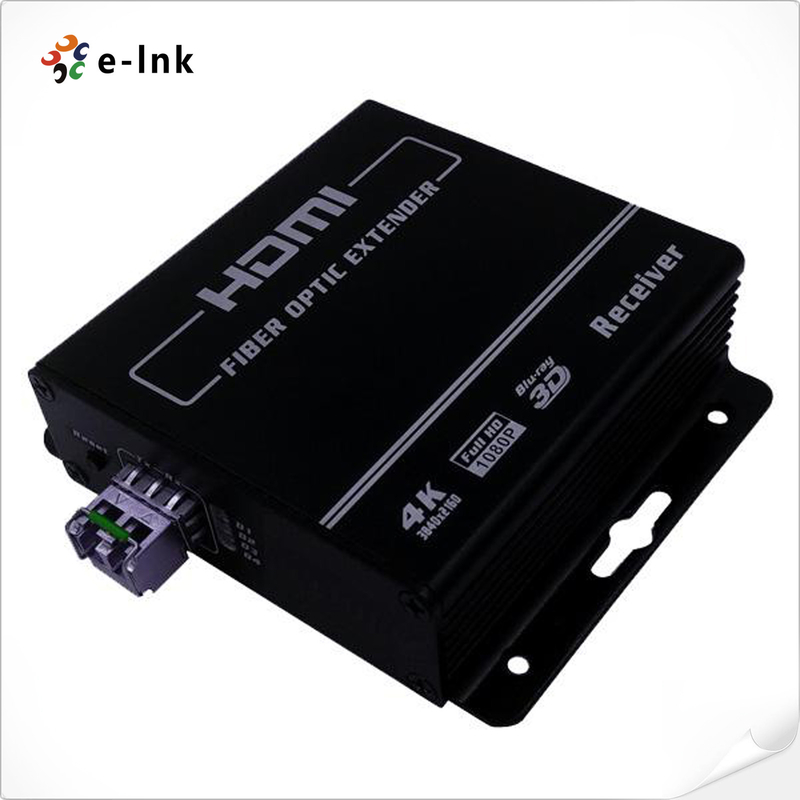

Receiver:

4K HDMI 1.4 Fiber Optic Extender UHD 2160p over SMF up to 60km 1

Port name	Description
HDMI OUT	HDMI signal output
RESET	System reset botton
POWER	Power adapter socket
SFP	SFP model --- LC connector
LED indicator	Description
D1	System power indicator
D2	RECEIVER: Reserve
D3	Optical fiber signal connection indicator ON:LOS OFF:OK
D4	BLINK,SINK plug in
