4K HDMI 2.0 KVM USB Fiber Extender Ultra HD 60Hz over 10km SMF 300m MMF

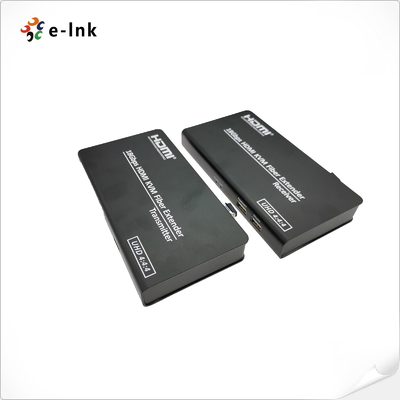

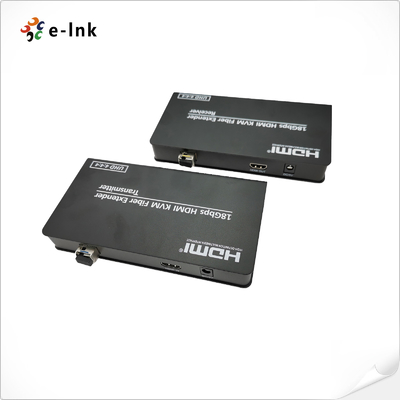

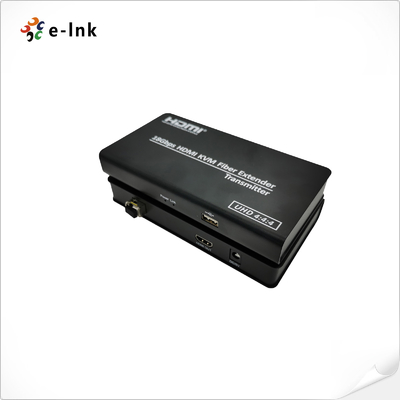

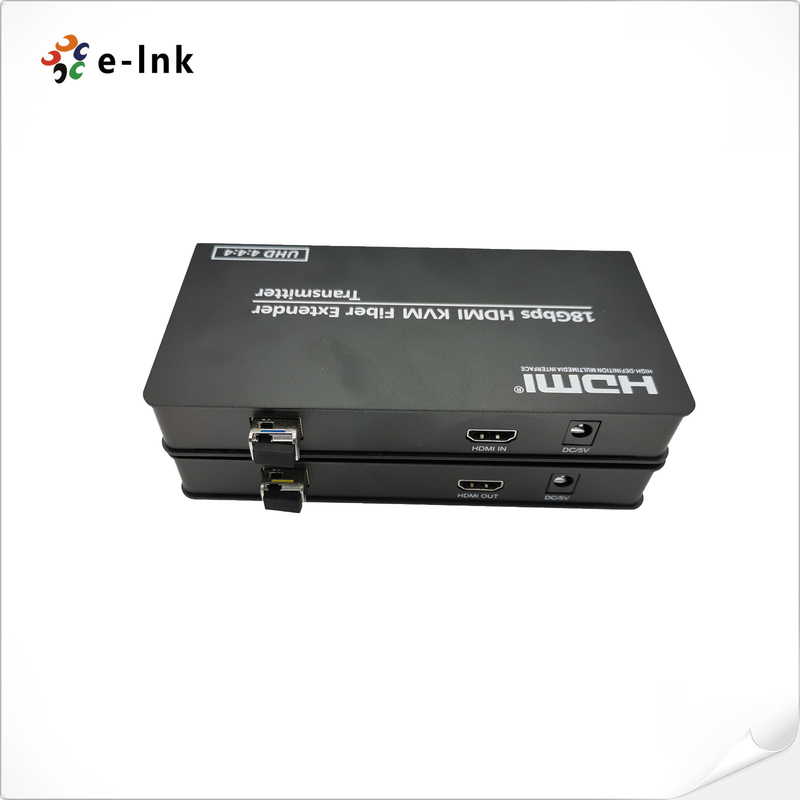

Large Image : 4K HDMI 2.0 KVM USB Fiber Extender Ultra HD 60Hz over 10km SMF 300m MMF

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-HF201KM
Document:	2E-link Video Transmission ...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pair
Price:	$279-$299
Packaging Details:	Fiber Ethernet Media Converter Standard export package
Delivery Time:	5-12working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal, Credit Card
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Video Standard:	HDMI 2.0, HDCP 2.2	Resolution Support:	Up To 4K@60Hz (4096×2160P)
Bandwidth:	18Gbps High-speed Optical Transmission	KVM Ports:	USB Type-A For Keyboard/mouse, Mini-USB For PC
Transmission Distance:	10km (SMF), 300m (OM3 MMF)	Power Supply:	DC 5V, Max 5W Consumption
Highlight:	4K HDMI 2.0 KVM Extender , USB HDMI 2.0 KVM Extender , Fiber Optic HDMI 2.0 KVM Extender

4K HDMI 2.0 KVM USB Fiber Extender Ultra HD 60Hz over 10km SMF 300m MMF

Overview

The LNK-HF201KM HDMI 2.0 KVM Fiber Extender delivers uncompressed 4K UHD video with seamless

keyboard and mouse control. Designed for long-distance transmission, it supports up to 10km over

single-mode fiber or 300m over OM3 multimode fiber. Featuring HDMI 2.0 and HDCP 2.2 compliance,

it ensures superior image clarity, plug-and-play installation, and stable performance for control rooms,

medical imaging, and security monitoring.

Features

Transmits uncompressed 4K@60Hz 4:4:4 HDMI 2.0 video

Supports up to 10km via SMF or 300m via OM3 MMF

Built-in USB KVM for keyboard & mouse extension

Compliant with HDMI 2.0 & HDCP 2.2 standards

Simple plug-and-play installation with stable transmission

Compact, durable design with LC fiber interface

Technical Indexes

Parameter		Description
Video	Standards	HDMI 2.0 and HDCP 2.2
	Maximum pixel clock	600MHz
	Maximum data rate	18Gbps
	Resolution range	800 x 600, 1024 x 768, 1280 x 720, 1280 x 768, 1280 x 800, 1280 x 960, 1280 x 1024, 1360 x 768, 1366 x 768, 1440 x 900, 1600 x 900, 1600 x 1200, 1680 x 1050, 1920 x 1080, 1920 x 1200, 2560 x 1440, 2560 x 1600, 3840 x 2160P, 4096 x 2160P
	Connector	Female HDMI type A
	Impedance	100Ω
K/M	Interface	PC: MINI-USB Keyboard And Mouse: USB-A
Optical fiber	Interface	SFP model – LC connector
	Fiber type	Single-mode or Multimode
	Wavelength	Single-mode 1310nm, Multimode 850nm
	Interface bandwidth	18Gbps
	Transmission distance	OM3 Multimode fiber: 300M Single mode fiber: 10KM
Other	Power supply	The power adapter: DC 5V
	Power dissipation	MAX 5W
	Temperature	Operating: -10℃ ~ +55℃
	Humidity	Operating: 5% ~ 90%
	Dimension (LxWxH)	163 x 86 x 24(mm)
	Gross weight	1.471KG
	The warranty	1 year free warranty

Ordering Information

Model	Description
LNK-HF201KM-M	4K HDMI 2.0 KVM USB over Fiber Optic Extender, OM3 Multimode Fiber, 300 meters
LNK-HF201KM-10	4K HDMI 2.0 KVM USB over Fiber Optic Extender, Single-mode Fiber, 10km
