L3 Managed Switch with 24 10/100/1000BASE-T PoE Ports + 4 10G SFP Ports

Name: L3 Managed Switch with 24 10/100/1000BASE-T PoE Ports + 4 10G SFP Ports
Brand: E-link
SKU: TS-M324GP-4XSFP
Rating: 4.5 (158 reviews)

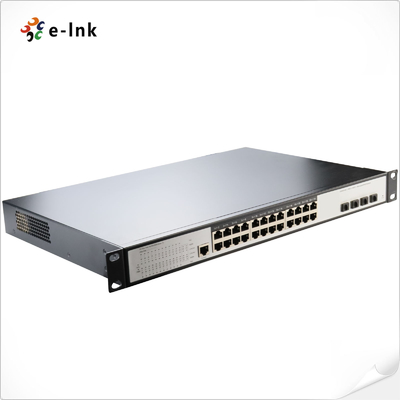

Large Image : L3 Managed Switch with 24 10/100/1000BASE-T PoE Ports + 4 10G SFP Ports

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	TS-M324GP-4XSFP

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	Ethernet PoE Switch Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Product Name:	28 Port PoE Switch	Weight:	4500g
Operating Temperature:	0℃~55℃	Power:	MAX Power 400W
Saving Temp:	-40℃~75℃	Dimensions:	4440mm X 290mm X 45mm
Highlight:	10G SFP Ports L3 Managed Switch , 4 10G SFP L3 Managed Switch

Ethernet PoE Switch's Product Description:

There are 24 10/100/1000BASE-T ports featuring 36-watt 802.3at PoE+, and 4 extra Gigabit TP/SFP combo interfaces on this Ethernet PoE Switch. Each port of There are 24 10/100/1000BASE-T ports featuring 36-watt 802.3at PoE+, and 4 extra 10G SFP+ fiber slots in this Ethernet PoE Switch . Every Gigabit port of this Ethernet PoE Switch offers 36 watts of power, with a total power budget of up to 400 watts for different types of PoE applications being employed. is provided to IP security surveillance for small businesses and enterprises.

Because this Ethernet PoE Switch has reliable design and is easy to use, it is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.

Ethernet PoE Switch's Features:

Ethernet PoE Switch performs the following characteristics:

► 24-Port 10/100/1000BASE-T RJ45 copper with IEEE 802.3at/af Power over Ethernet Injector function

► RJ45 console interface for basic management and setup

► Web smart management for easy application.

► Bandwidth management based on port input and output

► SNMP V1/V2/V3 management

► Support loop protection, automatic recovery

► Plug & play, no configuration required.

Support loop protection, automatic recovery

Ethernet PoE Switch's echnical Parameters:

Packet buffer	12Mbits
MAC address table	16K
Transmission mode	Store and Forward (full/half duplex mode)
PoE Standard	24x IEEE 802.3af /IEEE 802.3at PoE
Power budget	Max. PoE output power budget 30W
Power	Connect-always
RJ45	Link/Act: connect-always; Data exchange-twinkle Speed light: 100Mbps-always; 10Mbps-twinkle
Fiber	Link/Act: connect-always; Data exchange-twinkle
Protection grade	IP30

Ethernet PoE Switch's Applications:

L3 Managed Switch with 24 10/100/1000BASE-T PoE Ports + 4 10G SFP Ports 1

Ethernet PoE Switch's Support and Services:

Ethernet PoE Switch technical support and service include:

24/7 technical support
On-site troubleshooting and repairs
Remote technical support
Firmware updates and upgrades
Hardware replacement
Maintenance and preventional care
Customized system integration and optimization services

Ethernet PoE Switch’s Packing and Shipping:

Ethernet PoE Switch Packaging and Shipping:

Each Ethernet PoE Switch is wrapped individually in a cardboard box with a foam inserted to protect the switch during shipping.
The box is then placed in a larger, outer box with additional packing materials to ensure the switch remains undamaged during transit.
The box is then sealed and shipped to the customer by a reliable shipping carrier.

Ethernet PoE Switch's Ordering Information:

Model	Description
TS-M324GP-4XSFP	L3 24-Port 10/100/1000T 802.3at PoE + 4-Port 10G SFP+ Managed Switch, total power budget of up to 400 watts
Mounting Options	► Desktop or Rack Mounting Installation
SFP+ Options	► SFP+ option. Please select your SFP on our SFP Options Page
	► SFP+ module is to be purchased separately.
