L2+ Combo Managed Ethernet Switch with 24 10/100/1000T Ports+ 4Gigabit TP/SFP Ports

Name: L2+ Combo Managed Ethernet Switch with 24 10/100/1000T Ports+ 4Gigabit TP/SFP Ports
Brand: E-link
SKU: TS-M324G-4G4SFP
Rating: 5 (112 reviews)

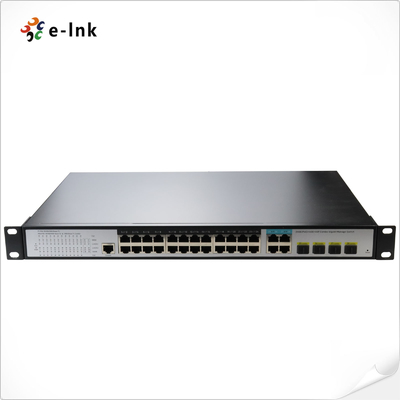

Large Image : L2+ Combo Managed Ethernet Switch with 24 10/100/1000T Ports+ 4Gigabit TP/SFP Ports

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	TS-M324G-4G4SFP

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	Fiber Optic Switch Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Chat Now

Detailed Product Description

Product:	28 Port Ethernet Switch	Weight:	3600g
Working Temperature:	0℃~50℃	Power:	Built-in Power AC 100~240V
Saving Temperature:	-40℃~75℃	Dimensions:	4.40cm X 2.30cm X 0.45cm

Fiber Optic Switch's Product Description:

There are 24 10/100/1000Base-TX ports and 4 Gigabit TP/SFP combo ports on this Fiber Optic Switch, a Managed Ethernet switch . This Fiber Optic Switch, 28-port WEB Smart Gigabit Switches fill the gap between unmanaged and fully managed switches.The reason why this Fiber Optic Switch is designed is that growing businesses want to maange their network without the cost and complexity of a full Layer 2 management implementation.

Fiber Optic Switch's Features:

Fiber Optic Switch have the following features:

► 24-Port 10/100/1000Base-T RJ45

► 4-Port 10/100/1000Mbps TP and SFP shared combo interfaces, supporting 100/1000Mbps dual mode

► RJ45 console interface for basic management and setup

► Web smart management for easy application.

► Bandwidth management based on port input and output

► Support loop protection, automatic recovery

Fiber Optic Switch's echnical Parameters:

RJ45 port and speed	24x10/100/1000Base-TX
Fiber port and speed	4xGigabit TP/SFP Combo
Packet buffer	4Mbits
MAC address table	8K
Transmission mode	Store and Forward (full/half duplex mode)
Power	Connect-always
RJ45	Link/Act: connect-always; Data exchange-twinkle Speed light: 100Mbps-always; 10Mbps-twinkle
Fiber	Link/Act: connect-always; Data exchange-twinkle

Fiber Optic Switch's Applications:

L2+ Combo Managed Ethernet Switch with 24 10/100/1000T Ports+ 4Gigabit TP/SFP Ports 1

Fiber Optic Switch's Support and Services:

Fiber Optic Switch technical support and service includes:

24/7 technical support
On-site troubleshooting and repairs
Remote technical support
Firmware updates and upgrades
Hardware replacement
Maintenance and preventional care
Customized system integration and optimization services

Fiber Optic Switch’s Packing and Shipping:

Fiber Optic Switch Packaging and Shipping:

Every Fiber Optic Switch is wrapped individually in a cardboard box with a foam inserted to protect the switch when shipping.
The box is then placed in a larger, outer box with additional packing materials to ensure the switch remain undamaged during transit.
The box is then sealed and shipped to the customer via a reliable shipping carrier.

Fiber Optic Switch's Ordering Information:

Model	Description
TS-M324G-4G4SFP	L2+ 24-Port 10/100/1000T + 4-Port Gigabit TP/SFP Combo Managed Ethernet Switch
Mounting Options	► Desktop or Rack Mounting Installation
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
	► SFP module is to be purchased separately.
