L2+ Combo Managed Switch with 24 10/100/1000T PoE Ports+ 4 Gigabit TP/SFP Ports

Name: L2+ Combo Managed Switch with 24 10/100/1000T PoE Ports+ 4 Gigabit TP/SFP Ports
Brand: E-link
SKU: TS-M324GP-4G4SFP
Rating: 4.6 (162 reviews)

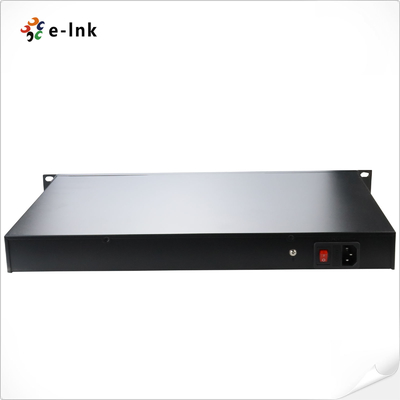

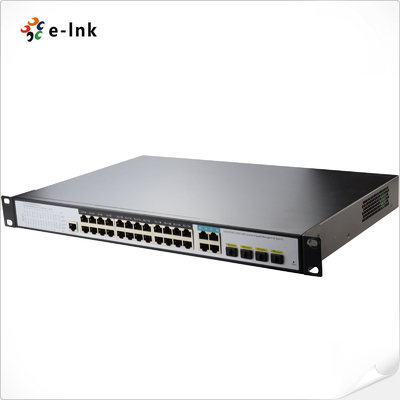

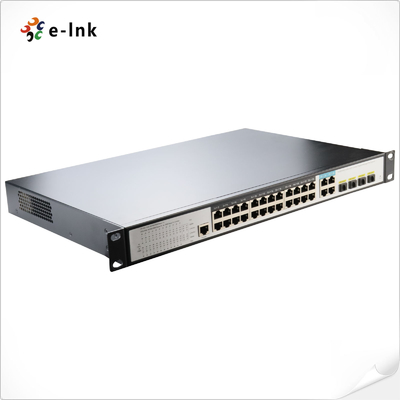

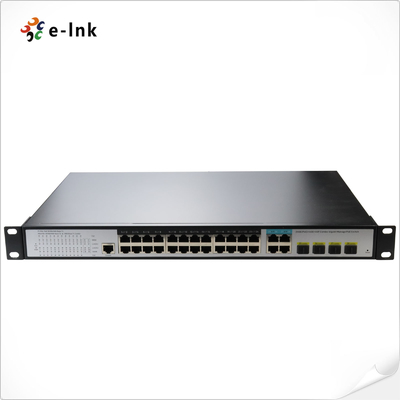

Large Image : L2+ Combo Managed Switch with 24 10/100/1000T PoE Ports+ 4 Gigabit TP/SFP Ports

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	TS-M324GP-4G4SFP

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	Ethernet PoE Switch Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Product Name:	28 Port PoE Switch	Weight:	3600g
Operating Temperature:	-20℃~55℃	Power:	MAX Power 400W
Saving Temp:	-40℃~75℃	Dimensions:	440mm X 290mm X 45mm

Ethernet PoE Switch's Product Description:

There are 24 10/100/1000BASE-T ports featuring 36-watt 802.3at PoE+, and 4 extra Gigabit TP/SFP combo interfaces on this Ethernet PoE Switch. Each port of this Ethernet PoE Switch provides 36 watts of power, with a total power budget of up to 400 watts for the different types of PoE applications being employed. A quick, safe and cost-effective Power over Ethernet network solutionthis Ethernet PoE Switch is provided to IP security surveillance for small businesses and enterprises.

Ethernet PoE Switch's Features:

Ethernet PoE Switch performs the following characteristics:

► 24-Port 10/100/1000BASE-T RJ45 copper with IEEE 802.3at/af Power over Ethernet Injector function

► 4-Port 10/100/1000Mbps TP and SFP shared combo interfaces, supporting 100/1000Mbps dual mode

► RJ45 console interface for basic management and setup

► Web smart management for easy application.

► Bandwidth management based on port input and output

► SNMP V1/V2/V3 management

► Support loop protection, automatic recovery

Ethernet PoE Switch's echnical Parameters:

Transmission mode	Store and Forward (full/half duplex mode)
Exchange property	Delay time: < 7μs Backplane bandwidth: 56Gbps
PoE	24x IEEE 802.3af /IEEE 802.3at PoE
RJ45	Link/Act: connect-always; Data exchange-twinkle Speed light: 100Mbps-always; 10Mbps-twinkle
Fiber	Link/Act: connect-always; Data exchange-twinkle
Protection grade	IP30

Ethernet PoE Switch's Applications:

L2+ Combo Managed Switch with 24 10/100/1000T PoE Ports+ 4 Gigabit TP/SFP Ports 1

Ethernet PoE Switch's Support and Services:

Ethernet PoE Switch technical support and service include:

24/7 technical support
On-site troubleshooting and repairs
Remote technical support
Firmware updates and upgrades
Hardware replacement
Maintenance and preventional care
Customized system integration and optimization services

Ethernet PoE Switch’s Packing and Shipping:

Ethernet PoE Switch Packaging and Shipping:

Each Ethernet PoE Switch is packaged individually in a cardboard box with a foam insert to protect the switch during shipping.
The box is then placed in a larger, outer box with additional packing materials to ensure the switch remains undamaged during transit.
The box is then sealed and shipped to the customer via a reliable shipping carrier.

Ethernet PoE Switch's Ordering Information:

Model	Description
TS-M324GP-4G4SFP	L2+ 24-Port 10/100/1000T 802.3at PoE + 4-Port Gigabit TP/SFP Combo Managed Switch, total power budget of up to 400 watts
Mounting Options	► Desktop or Rack Mounting Installation
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
	► SFP module is to be purchased separately.
