Industrial Video Ethernet Switch: 4x10/100M Ethernet + 1xVideo + 1xRS485 Data + 1xGigabit Fiber

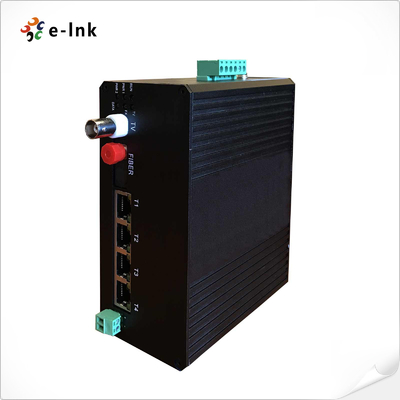

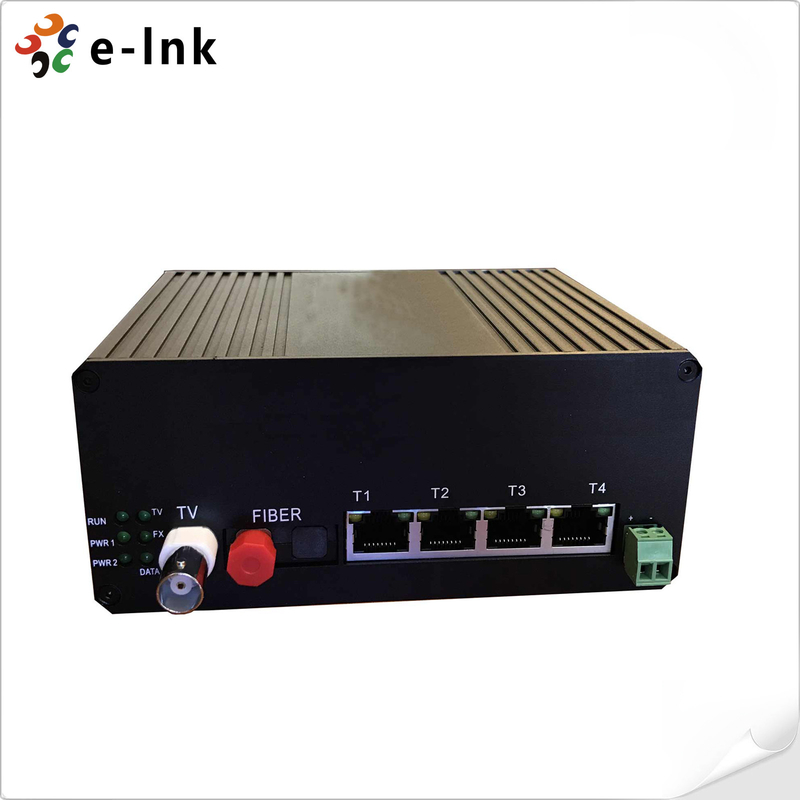

Large Image : Industrial Video Ethernet Switch: 4x10/100M Ethernet + 1xVideo + 1xRS485 Data + 1xGigabit Fiber

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE, RoHS, FCC, ISO9001
Model Number:	LNK-GY4E1V1D

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	To be negotiated
Packaging Details:	Standard Export Package
Delivery Time:	5-12working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal, Credit Card
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Interfaces:	4 RJ45 Ports/1 BNC Port/1 Data Port/1 Fiber Port	Installation:	Din-Rail Mounting, Wall Mounting
Operating Temperature:	-40℃-85℃	Weight:	690g
Dimensions (WxDxH):	138mm(L) X 112mm(W) X 60mm(H)	Input Voltage:	24VDC(18-36VDC), Redundant Dual Inputs

Industrial Video Ethernet Switch: 4x10/100M Ethernet + 1xVideo + 1xRS485 Data + 1xGigabit Fiber

Industrial Ethernet Switch Advantages

► Support 1536 bytes frame; with 1Mbit built-in frame memory

► 4Ethernet Ports support 10/100M auto-negotiation , Full/Half duplex mode, auto-MDI-MDI-X

► Support 1024 MAC address, with automatic MAC address learning and update functions

► Suitable for DSLAM bandwidth expansion over the existing fiber optical cable

► Automatically select the Store and Forward mode or Cut-Through mode to reduce the delay;

► Support LED to monitor each port’s working state

► Terminal Block Power Input

► Super lightening protection, IP40 protection

Industrial Ethernet Switch Technical Indexes

Parameter	Specifications
Ports	1 x Gigabit Fiber Port (FC default) 4 x 10/100M Ethernet Port with physical isolation to share 100M speed 1 x Analog Video 1 x RS485 Return Data
Physical Characteristics	Housing: Aluminum Alloy material with IP40 Protection Dimension: 138mm(L) X 112mm(W) X 60mm(H) Weight: 690g Installation: Din-Rail mounting, Wall mounting
Interfaces	4 RJ45 Ports Comply with IEEE802.3, IEEE802.3u, 10/100Base-T(X) 10/100Base-T(X) auto negotiation speed Full/Half duplex mode Auto MDI-MDI-X connection Up to 100M Cat-5 transmission distance 1 BNC Port Video format PAL/NTSC/SECAM Video Impedance 75Ω 1 Data Port Data Format RS485 1 Fiber Port Comply with IEEE802.3u, 1000Base-FX Rate: 1000Mbps Wavelength: 1310nm/1550nm Up to 500m transmission distance with multi-mode Up to 20km,40km,60km,80km transmission distance with single-mode SC/ST/FC interfaces optional
Power	Input Voltage: 24VDC(18-36VDC), Redundant dual inputs Input Current: <0.5A @24VDC Overload Current Protection: Support Reverse Polarity Protection: Support Redundant Protection: Support Connection: 6-pin terminal blocks
Warranty	5-year

Industrial Ethernet Switch Overview

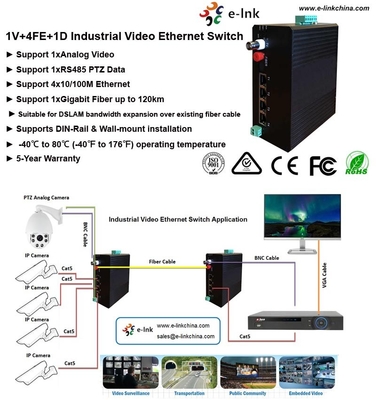

LNK-GY4E1V1D Series physical isolation Ethernet switch is designed for hardened industrial environment. which provides 4x10/100M Ethernet + 1xVideo + 1xRS485 + 1xGigabit Fiber. The physical isolated Industrial Ethernet Switch can transmit 4channel separate and fully isolated 10/100M Ethernet. It's ideal for building a internal network and public network at the same time. And it's also suitable for 4 highly isolated networks occasions and suitable for DSLAM bandwidth expansion without changing the original fiber optical cable.
