Product Details:
Payment & Shipping Terms:
|
| Switch Fabric: | 20Gbps/non-blocking | Operating Temperature: | -40°C To 80°C (-40°F To 176°F) |
|---|---|---|---|
| Input Power: | 44~57VDC (Terminal Block) | Dimensions (WxDxH): | 3.03 X 1.48 X 4.21 In (77 X 37.5 X 107mm) |
| Weight: | 0.3Kg | Installation: | DIN-Rail Or Wall Mounting |

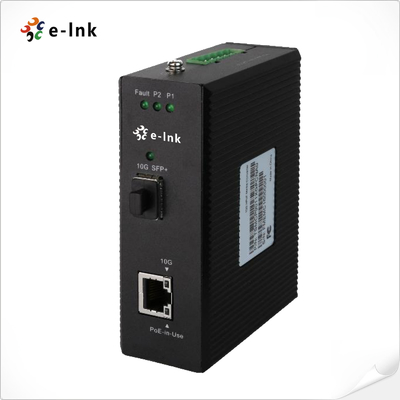

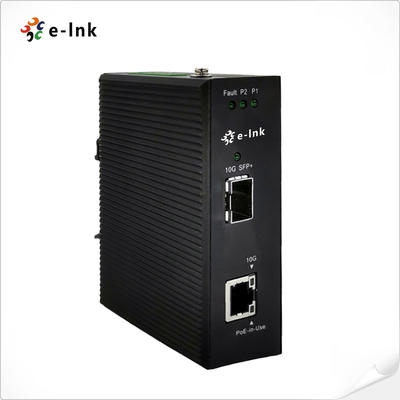

Industrial 10GBase-X SFP+ to 10G/5G/2.5G/1G/100M Base-T 802.3bt PoE++ Media Converter
Industrial Ethernet Switch Advantages
► One 10G/5G/2.5G/1G/100M Base-T RJ45 interface with IEEE 802.3bt PoE++ injector function
► One 10GBASE-X SFP+ slot interface
► Complies with IEEE 802.3bt PoE++ Type-4 PS
► Supports PoE Power up to 90 watts for PoE port
► 44~57V DC redundant power with reverse polarity protection
► Supports DIN-Rail and Wall-Mount installation
► Compact fanless design avoids overheating
► IP40 rugged high-strength metal case
Industrial Ethernet Switch Technical Indexes
| Flow Control: | IEEE 802.3x pause frame for full duplex |
| Network Cables |
10G/5G/2.5G/1G/100M Base-T: 10G - Cat 6A/7 5G - Cat 6/6A/7 2.5G/1G - Cat 5e/6/6A/7 100M – Cat 5/5e/6/6A/7 Cat 5/5e/6/6A/7 UTP cable (max 100 meters) EIA/TIA-568 100-ohm STP (max 100 meters) 10GBase-LR/SR/BX: 50/125um or 62.5/125um multi-mode fiber optic cable, up to 300m 9/125um single-mode fiber optic cable, up to 80km |
| Interface | |
| Connector: | 1 x 10G/5G/2.5G/1G/100M Base-T RJ45 interface with IEEE 802.3bt PoE++ injector function |
| Optical Port: | 1 x 10GBase-X SFP+ interface |
| PoE (Power over Ethernet) | |
| Standard: |
IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt Power over Ethernet Plus Plus |
| Port: | RJ45 |
| PoE Power Output: | 802.3bt PoE++ : 90W |
| PoE Power Supply Type: | End-span + mid-span |
| Power Pin Assignment: |
End-span: 1/2 (-), 3/6 (+); mid-span: 4/5 (+), 7/8 (-) |
| PoE Power Budget: | 90 watts@44~57V DC input |
| MTBF | > 100,000 hrs |
| Electrical and Mechanical | |
| Power Consumption: |
System ON without loading: 48V DC: 4.36W Full loading with PoE++: 48V DC: 98W |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| Casing: | Aluminum Case |

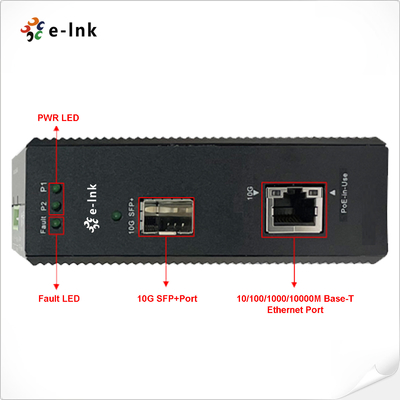

| LED Indicators: | |
| P1/P2: | Power Status |
| Fault: | Fault Alarm |
| 10G: | 10G Ethernet Link Status |
| 10G SFP+: | 10G SFP+ Link Status |
Industrial Ethernet Switch Overview

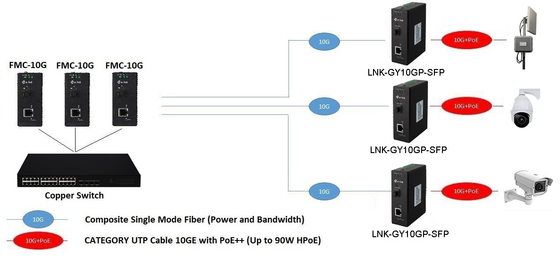

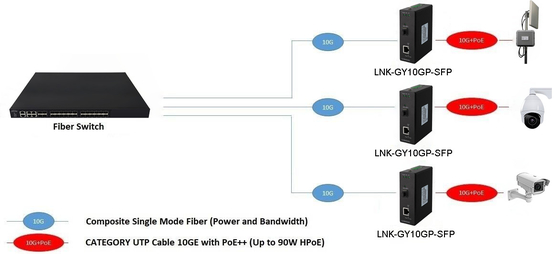

The E-link 10G HPoE Media Converter is the smallest industrial-grade 10G Ethernet media converter (from 10000Base-X SFP+ to 10G/5G/2.5G/1G/100M Base-T Copper) with 802.3bt Power over Ethernet Plus Plus (PoE++) injector function to deliver up to 90W of power output and high data transmission speed to PDs (powered devices) installed in a remote area where sufficient and reliable power input is required, providing non-blocking wire-speed performance and great flexibility for 10G Ethernet extension in harsh industrial environment. Customers who are planning for Wi-Fi 6, point-to-point wireless links, and other bandwidth-demanding technologies are looking for connectivity solutions that can grow with them as their technology needs evolve. These customers – universities, commercial buildings, campus environments, stadiums, senior living communities, resorts, and the like – need both 10G speeds and 90W PoE++ (HPoE) power output. However, current media converter options in the market are expensive and limited. E-link is solving for more bandwidth and more power at the edge with the industry’s first HPoE 10G media converter solution.
Ordering Information
| Model | Description |
| LNK-GY10GP-SFP | Industrial 10GBase-X SFP+ to 10G/5G/2.5G/1G/100M Base-T 802.3bt PoE++ Media Converter |
| SFP+ Options | ► SFP+ option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP+ module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed; |
| Power Options | ► 120W/2.5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately |
