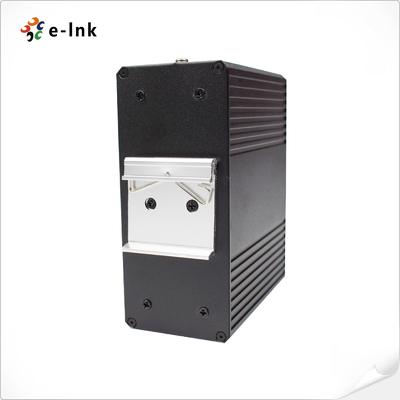

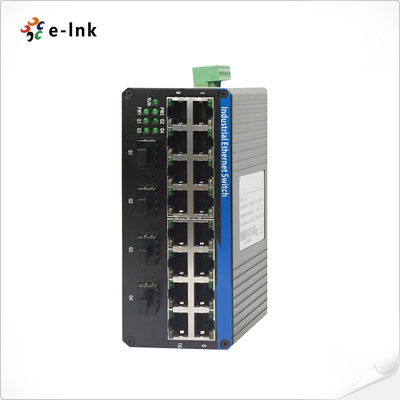

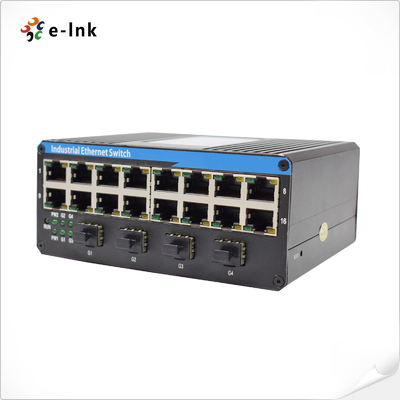

16-port 10/100Base-T + 4-port 1000Base SFP Industrial Ethernet Switch

Name: 16-port 10/100Base-T + 4-port 1000Base SFP Industrial Ethernet Switch
Brand: E-link
SKU: LNK-GY416-SFP
Rating: 4.7 (197 reviews)

Large Image : 16-port 10/100Base-T + 4-port 1000Base SFP Industrial Ethernet Switch

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE, RoHS, FCC, ISO9001
Model Number:	LNK-GY416-SFP

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	To be negotiated
Packaging Details:	Standard Export Package
Delivery Time:	5-12working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal, Credit Card
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Fiber Ports:	4 X 1000BASE-SFP Ports	Operating Temperature:	-40°C To 80°C (-40°F To 176°F)
Input Power:	24VDC(18~36V DC)	Dimensions (WxDxH):	138 X 112 X 60 Mm
Weight:	0.67Kg	Installation:	DIN-Rail Or Wall Mounting

16-port 10/100Base-T + 4-port 1000Base SFP Industrial Ethernet Switch

Industrial Ethernet Switch Advantages

►16x10/100Base-TX ports and 4x1000Base-FX ports

►10/100M auto-negotiation, Full/Half duplex mode, auto-MDI-MDI-X

►SFP Fiber Port can be SMF, MMF

► Super lightening protection, IP40 protection

► Excellent heat elimination without cooling fan

►Redundant dual DC power inputs

Industrial Ethernet Switch Technical Indexes

Parameter	Specifications
Standard	IEEE 802.3 for 10Base-T, IEEE 802.3u for 100Base-TX and 100Base-FX, IEEE 802.3x for Flow control
Switch Properties	MAC Table Size: 2K Packet Buffer Size: 1Mbit Processing Type: Store and Forward Exchange Properties: 148800pps (100M)
RJ45 port rate	16 x RJ45 Ports: 10/100BaseT(X) auto connection, Full/Half duplex or force work mode, and support MDI/MDI-X connection
Fiber Ports	4 x 1000BASE-SFP ports
Transmission	Twisted pair: 100m (Standard CAT5/CAT5e cable) Fiber: Depends on SFP

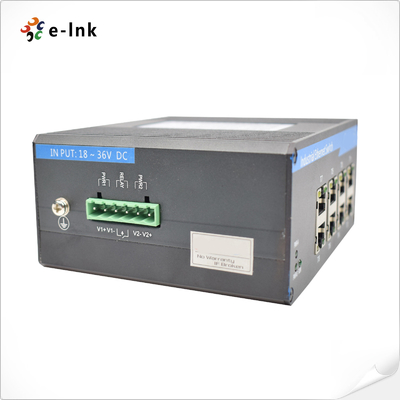

Power Input options	Input Voltage: 24VDC (18~36V DC), Redundant dual inputs Opposite connection protection
Power Consumption	Max. 7 watts/23.9BTU (Ethernet full loading)
Environmental Limits	Operating Temperature: -40℃ to +80℃ Storage Temperature: -45℃ to +85℃ Relative Humidity: 5% to 95% (non-condensing)

Industrial Ethernet Switch Overview

LNK-GY416-SFP Series Hardened Industrial Ethernet Switch is specially designed for industrial application, which provides fast and stable media conversion between 16x10/100BaseT(X) and 4x1000BaseFX. It also meets the requirements of long distance, high speed, and wide broadcast.

Due to its wide operating temperature range, alloy aluminum shell, and other superior industrial-grade design features that resist vibration and shock, it ensures continuous operation of your industrial automation applications in various harsh environments.

16-port 10/100Base-T + 4-port 1000Base SFP Industrial Ethernet Switch 0
