Product Details:
Payment & Shipping Terms:
|
| Fiber Ports: | 4 X SFP Ports (1000Base-SFP) | Operating Temperature: | -40°C To 80°C (-40°F To 176°F) |
|---|---|---|---|
| Input Power: | 24VDC(18~36V DC) | Dimensions (WxDxH): | 138 X 112 X 60 Mm |
| Weight: | 0.64Kg | Installation: | DIN-Rail Or Wall Mounting |

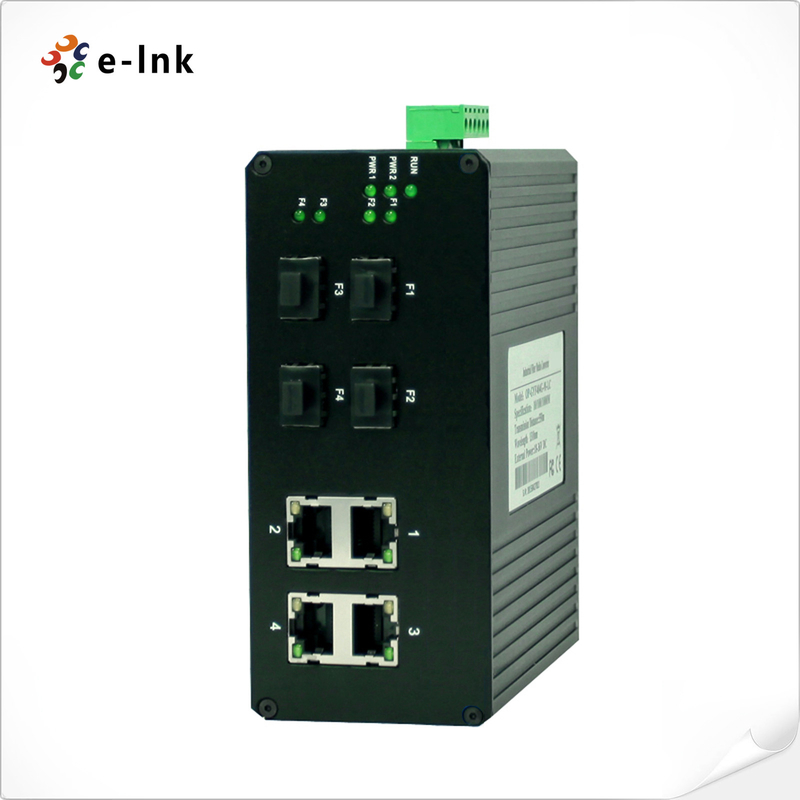

4G+4 SFP Gigabit Industrial Ethernet Switch
Industrial Ethernet Switch Advantages
►All Gigabit Ethernet ports for 4 Copper and 4 SFP
►SFP sockets for easy and flexible fiber expansion
►Support IEEE802.3, IEEE802.3x, IEEE802.3u Standard
►Support full-duplex and half-duplex and its auto-sensed
►Support auto-sense of MDI/MDI-X, facilitating system commissioning and installation
► Designed for industrial applications. IP40 protection, Aluminum Alloy
Industrial Ethernet Switch Technical Indexes
| Parameter | Specifications |
| Standard |
IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet), IEE802.3z 1000BASE-SX/LX(Gigabit-Ethernet), IEEE802.3x (Flow Control), IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree |
| RJ45 port rate | 4 x RJ45 Ports: 10/100/1000BaseT(X) auto connection, Full/Half duplex or force work mode, and support MDI/MDI-X connection |
| Fiber Ports | 4 x SFP ports (1000Base-SFP) |
| Power Input options |
Input Voltage: 24VDC(18~36V DC) Opposite connection protection |
| Environmental Limits |
Operating Temperature: -40℃ to +80℃ Storage Temperature: -45℃ to +85℃ Relative Humidity: 5% to 95% (non-condensing) |
| Mechanical Dimension |
Dimensions:138 x 112 x 60 mm House Protection: IP40 protection, Aluminium Alloy Installation: DIN-Rail or wall mounting Weight: 640g |
| Approvals |
EMI: FCC Part 15 Subpart B Class A,EN 55022 Class A EMS: • EN61000-4-2 (ESD),Level 3 • EN61000-4-3 (RS),Level 3 • EN61000-4-4 (EFT),Level 3 • EN61000-4-5 (Surge),Level 3 • EN61000-4-6 (CS),Level 3 • EN61000-4-8,Level 3 Shock: IEC 60068-2-27 Free Fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
Industrial Ethernet Switch Overview

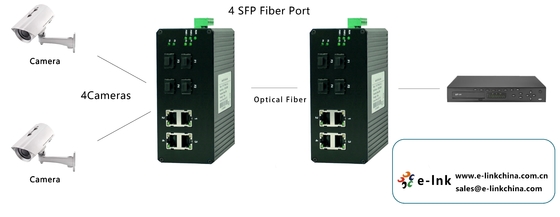

LNK-GY404G-SFP supports 8 Gigabit ports with 4 x Ethernet and 4 x SFP. To create reliability in your network, the LNK-GY404G-SFP comes equipped with a proprietary redundant network protocol, which offers users a straightforward method to set up a redundant Ethernet network featuring an ultra-fast recovery time of less than 20 milliseconds.Furthermore, LNK-GY404G-SFP also supports many advanced network standards to optimize network performance, ease maintenance issues, and secure network safety.
