Industrial 6-Port PoE+ Fast Ethernet Switch with 2 Fiber Uplinks 30W per Port
Overview

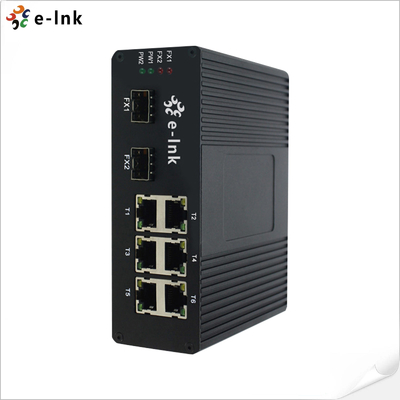

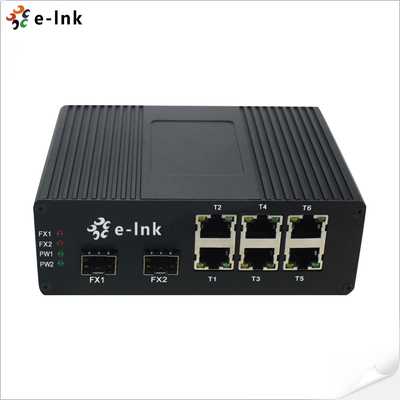

The LNK-GY206GP-SFP is a rugged industrial-grade PoE+ Fast Ethernet switch featuring 6 RJ45
PoE+ ports and 2 fiber uplink ports. Each copper port supports up to 30W IEEE 802.3at PoE+,

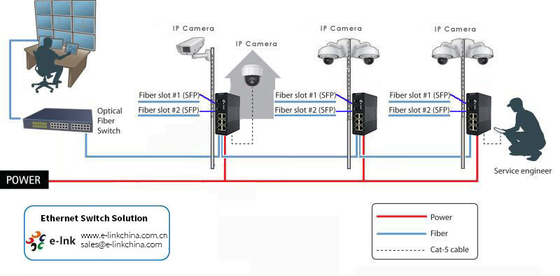

allowing seamless power and data delivery to IP cameras, access points, and other powered devices.
With a wide operating temperature range (-40°C to +80°C), redundant 48–57VDC power inputs,
and DIN-rail/wall-mount installation options, this switch ensures stable performance in demanding
industrial and outdoor environments.
Features
6×10/100Base-TX PoE+ ports (30W each) + 2×100Base-FX fiber uplinks
Compliant with IEEE 802.3af/at PoE standards, supports Alternative B mode
High power budget up to 253W for multiple powered devices
Flexible fiber options: SFP, SC, FC, or ST connectors
Redundant 48–57VDC power inputs for uninterrupted operation
-40°C to +80°C industrial temperature range for harsh environments

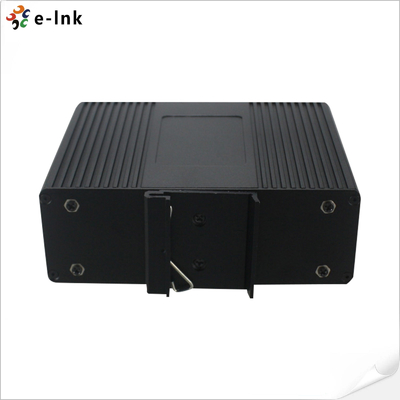

Compact metal enclosure, supports DIN-rail or wall mounting
Plug & Play design, no configuration required
ESD, surge, and overload protection for field reliability
Technical Indexes
| Ethernet |
| Standards: |
IEEE802.3 10BASE-T |
| IEEE802.3u 100BASE-TX/FX |
| IEEE802.3x Flow Control |
| IEEE802.3af Power over Ethernet |
| IEEE802.3at Power over Ethernet |
| Forward & Filtering Rate: |
14,880pps (10Mbps) |
| 148,800pps (100Mbps) |
| Packet Buffer Memory: |
512K bits |
| Processing Type: |
Store-and-Forward |
| Address Table Size: |
1024 MAC Addresses |
| Interface |
| Connector: |
6 x RJ45 |
| Optical Port: |
2 x 100Base-FX (SFP, SC, FC, ST Optional) |
| Environmental |
| Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: |
5% to 95% non-condensing |
| MTBF |
> 200,000 hrs |
| Electrical and Mechanical |
| Input Power: |
48~57VDC , Redundant Power (6-pin Terminal Block) |
| Power Consumption: |
253W Max. (PoE in use) |
| 5W Max. (PoE not in use) |
| Standard: |
IEEE802.3af/at |
| PoE: |
| Port: |
RJ45 Port 1 ~ Port 6 |
| Max. Power per Port: |
30W Max per port (Alternative B Mode) |
| Protection: |
| Power Input Overload: |
Automatic Resettable |
| Reverse Polarity: |
Present |
| LED Indicators: |
| Power: |
Power1, Power2 Status |
| PoE: |
Per Port Status |
| Ethernet(Per Port): |
Link/Activity |
| Fiber: |
FX1, FX2 |
| Dimensions (WxDxH): |
50 x 108 x 139 mm |
| Weight: |
0.6Kg |
| Casing: |
Metal Case |
| Mounting Options: |
DIN-Rail / Wall-mount |
| Regulatory Approvals |
| ISO9001 |
| EN55022:2010+AC: 2011, Class A |
| EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
| EN 61000-3-3: 2013 |
| EN55024:2010 |
| IEC 61000-4-2: 2008 (ESD) |
| IEC 61000-4-3: 2010 (RS) |
| IEC 61000-4-4: 2012 (EFT) |
| IEC 61000-4-5: 2014 (Surge) |
| IEC 61000-4-6: 2013 (CS) |
| IEC 61000-4-8: 2009 (PFMF) |
Ordering Information
| Model |
Description |
| LNK-GY206P |
Industrial Ethernet Switch: 6-port 10/100Base-TX (6-port PoE+) + 2-port 100BASE-FX Fiber, Multimode, Dual Fiber, SC, 2KM |
| LNK-GY206P-20 |
Industrial Ethernet Switch: 6-port 10/100Base-TX (6-port PoE+) + 2-port 100BASE-FX Fiber, Single Mode, Dual Fiber, SC, 20KM |
| LNK-GY206PS-20 |
Industrial Ethernet Switch: 6-port 10/100Base-TX (6-port PoE+) + 2-port 100BASE-FX Fiber, Single Mode, Single Fiber, SC, 20KM |
| LNK-GY206PF-20 |
Industrial Ethernet Switch: 6-port 10/100Base-TX (6-port PoE+) + 2-port 100BASE-FX Fiber,Single Mode, Single Fiber, FC, 20KM |
| LNK-GY206P-SFP |
Industrial 6-port 10/100BASE-T (6-port PoE+) + 2-port 100BASE SFP Ethernet Switch |
| SFP Options |
► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. |
| Mounting Options |
► Default DIN-Rail Bracket installed, Wall Mount Bracket is included. |
| Power Options |
► 240W/5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
