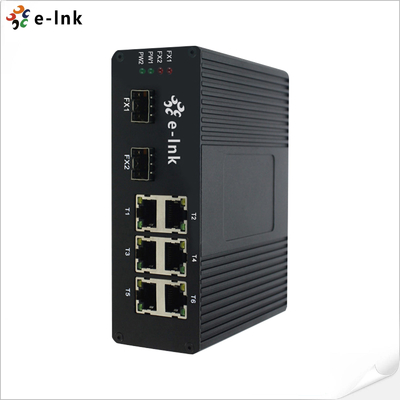

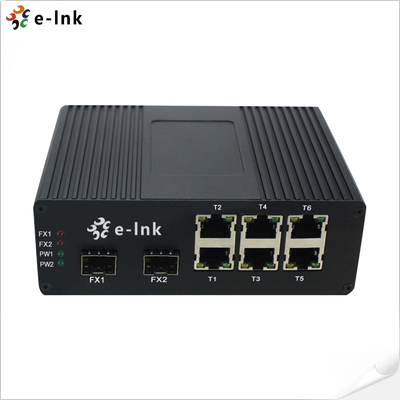

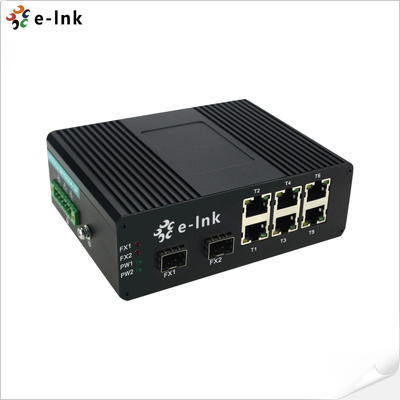

Industrial 8-Port Fast Ethernet Switch with 2 Fiber Uplinks Wide Temp Range

Large Image : Industrial 8-Port Fast Ethernet Switch with 2 Fiber Uplinks Wide Temp Range

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	CE, RoHS, FCC, ISO9001
Model Number:	LNK-GY206
Document:	1E-link Communication & Net...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	To be negotiated
Packaging Details:	Ethernet Switch Standard Export Package
Delivery Time:	5-8 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal, Credit Card
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Connector:	6 X RJ45	Optical Port:	2 X 100Base-FX (SFP, SC, FC, ST Optional)
Operating Temperature:	-40°C To 80°C (-40°F To 176°F)	Input Power:	12~58VDC , Redundant Power (6-pin Terminal Block)
Dimensions (WxDxH):	50 X 108 X 139 Mm	Weight:	0.6Kg
Highlight:	6-port industrial Ethernet switch , 10/100Base-T fiber optic switch , 2-port 100BASE-FX network switch

Industrial 8-Port Fast Ethernet Switch with 2 Fiber Uplinks Wide Temp Range

Overview

The LNK-GY206 Series is a rugged 8-port industrial Fast Ethernet switch designed for reliable data

transmission in harsh environments. Featuring 6 copper ports and 2 fiber uplinks, it ensures stable

network connectivity over long distances. With wide temperature tolerance, redundant power inputs, and

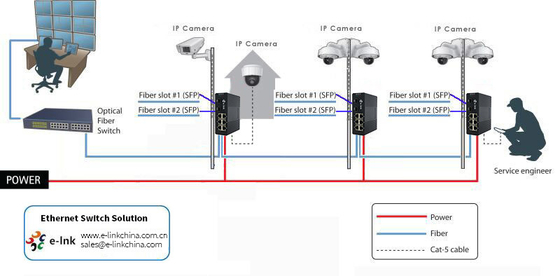

DIN-rail/wall mounting options, it’s an ideal choice for industrial automation, surveillance, and

transportation networks.

Features

6×10/100Base-TX + 2×100Base-FX ports for flexible fiber or copper networking

SFP, SC, FC, or ST fiber interfaces for single or multimode fiber options

Redundant 12–58VDC power inputs ensure uninterrupted operation

-40°C to +80°C industrial-grade temperature range

Auto MDI/MDIX and flow control for seamless device compatibility

Compact metal housing, supports DIN-rail or wall-mount installation

Low power consumption (≤5W) with overcurrent and reverse polarity protection

Plug & Play, no configuration required

Technical Indexes

Ethernet
Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX/FX
	IEEE802.3x Flow Control
Forward & Filtering Rate:	14,880pps (10Mbps)
Forward & Filtering Rate:	148,800pps (100Mbps)
Packet Buffer Memory:	512K bits
Processing Type:	Store-and-Forward
Address Table Size:	1024 MAC Addresses
Interface
Connector:	6 x RJ45
Optical Port:	2 x 100Base-FX (SFP, SC, FC, ST Optional)
Ethernet Port	RJ45 Port 1 ~ Port 8
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	12~58VDC , Redundant Power (6-pin Terminal Block)
Power Consumption:	5W Max.
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
LED Indicators:
Power:	Power1, Power2 Status
Ethernet(Per Port):	Link/Activity
Fiber:	FX1, FX2
Dimensions (WxDxH):	50 x 108 x 139 mm
Weight:	0.6Kg
Casing:	Metal Case

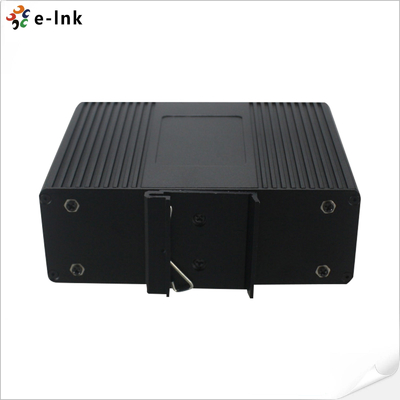

Mounting Options:	DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-GY206	Industrial Ethernet Switch:6-Port 10/100Base-TX + 2-port 100BASE-FX Fiber, Multimode, Dual Fiber, SC, 2KM
LNK-GY206-20	Industrial Ethernet Switch: 6-Port 10/100Base-TX + 2-port 100BASE-FX Fiber, Single Mode, Dual Fiber, SC, 20KM
LNK-GY206S-20	Industrial Ethernet Switch: 6-Port 10/100Base-TX + 2-port 100BASE-FX Fiber, Single Mode, Single Fiber, SC, 20KM
LNK-GY206F-20	Industrial Ethernet Switch: 6-Port 10/100Base-TX + 2-port 100BASE-FX Fiber, Single Mode, Single Fiber, FC, 20KM
LNK-GY206-SFP	Industrial 6-port 10/100BASE-T + 2-port 100BASE SFP Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	► Power Supply is to be purchased separately.
