E-link China Technology Co.,Ltd.
Professional Fiber Optical Communication and CCTV Security Transmission Product Manufacturer
|
Product Details:
Payment & Shipping Terms:
|
| Connector: | 3 Bits Terminal Block | MAC Address: | 8K |
|---|---|---|---|
| Operating Temperature: | -20~60℃ (wide Temperature Optional) | Input Power: | 110~220VDC（100~300VDC）Or100~240VAC（85~264VAC） |
| Dimensions (WxDxH): | 440 X 275 X 44.5mm | Weight: | 7.8 Kg (Gross Weight) |

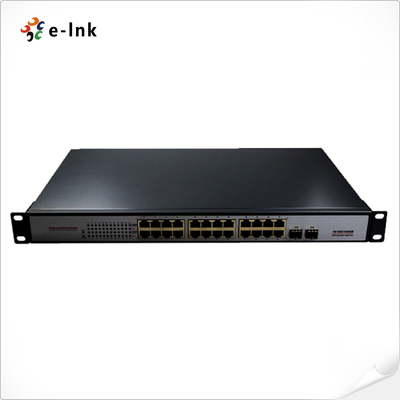

10/100/1000Mbps PoE-PSE Fiber to Copper Ethernet Switch: 2 SFP + 24 PoE
Industrial Ethernet Switch Advantages
► Support 24pcs RJ45 fast Ethernet ports and 2pcs fiber ports (SC, ST or SFP Optional)
► Support IEEE802.3/802.3u/802.3x/IEEE802.3af/IEEE802.3at
► Support broadcast storm shield
► DC110～220V or AC100～240V 3 bits terminal block power input
► No fan, low consumption,EMC-4 grade design
► IP30 protection, metal shell
► Over voltage protection
► All port anti-lighting (6KV)
Industrial Ethernet Switch Technical Indexes
| Standard | IEEE802.3, IEEE802.3u, IEEE802.3x |
| Flow control | IEEE802.3x |
| MAC address | 8K |
| Interface | |
| RJ45 Ports | 10/100/1000M auto connection, Full/Half duplex or force work mode, and support MDI/MDI-X connection |
| Fiber Ports | 1000Base-FX ports (SC/ST optional) |
| Console port | RS232, RJ45 |
| LED indicator | PWR, SYS, Link/ACT |
| PoE | |
| PoE Ports | Port1-24 support POE |
| PoE Standard | IEEE802.3at (25.5W for each POE port) |
| PoE Max power | 600W |
| Power | |
| Input power | 110~220VDC(100~300VDC)Or100~240VAC(85~264VAC) |
| Input current | 0.25A(@110VAC/VDC) |
| Connector | 3 bits terminal block |
| Environmental | |
| Storage Temperature | -40~85℃ |
| Relative Humidity | 5%~95%(non-condensing) |
| Mechanical | |
| Shell | IP30protection, metal case |
| Installation | 19” 1U rack |
Industrial Ethernet Switch Overview

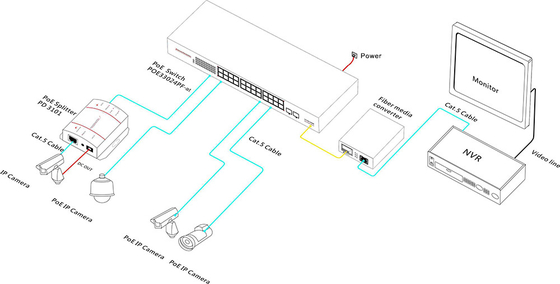

LNK-2024GP-SFP is a type of plug-and-play unmanaged POE Ethernet switch, which supports 24 10/100/1000Base-T(x) + 2 1000Base-FX interfaces. With PoE, installation of network devices such as IP surveillance cameras, wireless access points, IP phones, and other PoE enabled devices in hard-to-reach, outdoor, and remote areas is simplified. No fan, low consumption and industrial grade design. It has a more stable work capability and can also offer a wide temperature range (up to -40°C to 75°C) to accommodate applications in various industrial environments.
Ordering Information
| Model | Description |
| LNK-2024GPF-SFP | Unmanaged 24-Port PoE Switch: 24x 10/100/1000M Ethernet ports + 2x Gigabit TP/SFP combo ports, and 1-24 ports supports IEEE802.3af POE international standard, each port power is 15.4W, whole power is 400W |
| LNK-2024GPT-SFP | Unmanaged 24-Port PoE Switch: 24x 10/100/1000M Ethernet ports + 2x Gigabit TP/SFP combo ports, and 1-24 ports supports IEEE802.3at POE international standard, each port power is 25.5W, whole power is 650W |
