Product Details:
Payment & Shipping Terms:
|
| Connector: | 10 X 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X Ports | Switch Fabric: | 20Gbps/non-blocking |
|---|---|---|---|
| Operating Temperature: | -40°C To 80°C (-40°F To 176°F) | Input Power: | 12~48VDC ,Redundant Power With Polarity Reverses Protection Function |

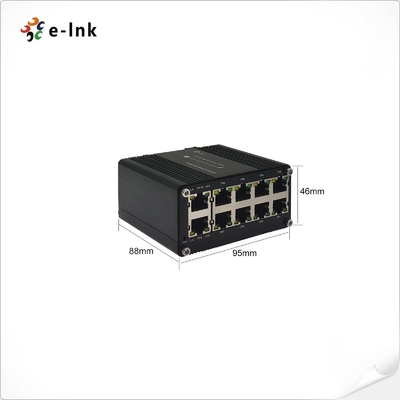

| Power Consumption: | <10W | Dimensions (WxDxH): | 95 X 88 X 46mm |
| Weight: | 0.3Kg |

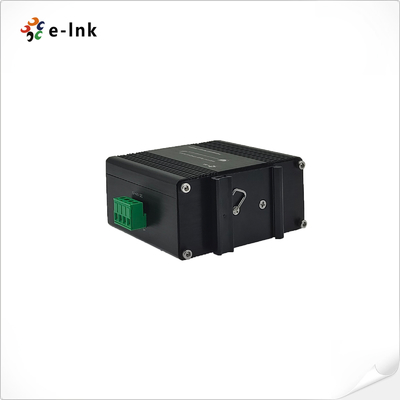

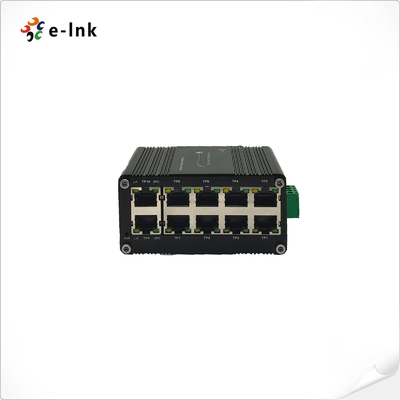

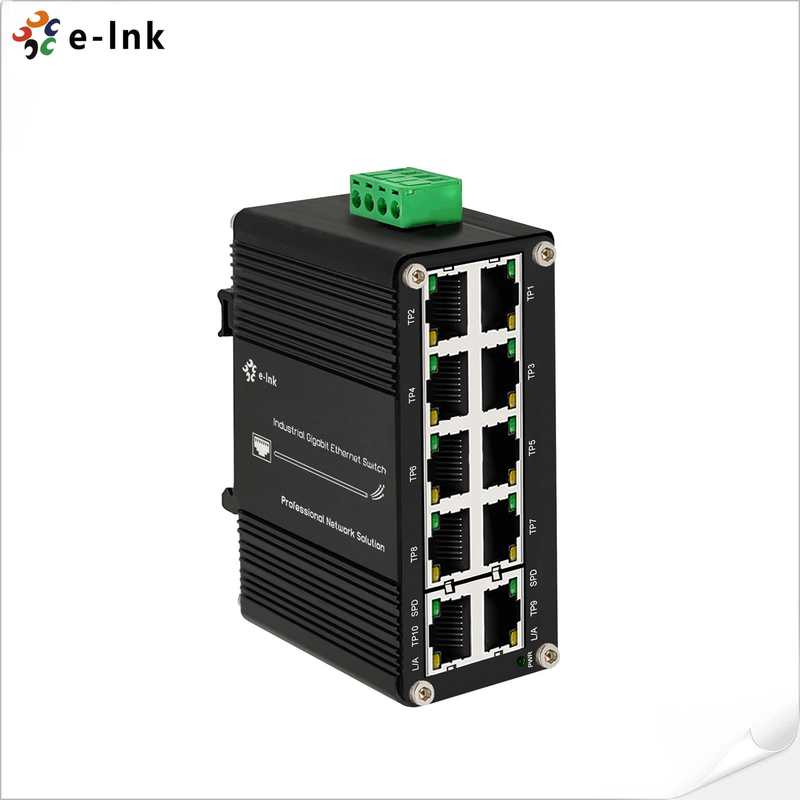

Mini Industrial 10-Port 10/100/1000T Compact Ethernet Switch
Industrial Ethernet Switch Advantages
► 10-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function
► Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex
► Supports 802.3x Flow control
► Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)
► Supports DIN-Rail and Wall-mount installation
► Industry standard design, dustproof and close design IP40, rugged high-strength metal case
Industrial Ethernet Switch Technical Indexes
| Ethernet | |
| Standards: | IEEE 802.3 Ethernet |
| IEEE 802.3u Fast Ethernet | |
| IEEE 802.3ab Gigabit Ethernet | |
| IEEE 802.3x Full-Duplex Flow Control | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Packet Buffer: | 2Mbits |
| Packet Length: | 9216bytes |
| MAC Address Table: | 4K entries |
| Switch Fabric: | 20Gbps/non-blocking |
| Switch Throughput (packet per second) | 14.88Mpps@64bytes |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| LED Indicators: | |
| PWR | Power |
| L/A | Link/Activity |
| SPD | Data Rate |
Industrial Ethernet Switch Overview
LNK-IMC010G Series is a Mini Industrial 10-Port 10/100/1000T Gigabit Ethernet Switch with 12~48VDC wide range power input. This unmanaged industrial Ethernet switch is designed to match the critical industrial standards. Due to its reliable and straightforward operation, resistance to vibration and shock, and wide operating temperature range, it is capable of adapting to a diverse range of harsh environments. The switch meets CE and FCC standards, has successfully undergone a 100% burning test to guarantee its suitability for industrial applications, and is an excellent, cost-effective option for industrial Ethernet connections.
Ordering Information
| Model | Description |
| LNK-IMC010G | Mini Industrial 10-Port 10/100/1000T Gigabit Ethernet Switch |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► Power Supply is to be purchased separately |
