Industrial 6-Port Fast Ethernet PoE Switch with 3 Fiber Uplinks 30W/Port

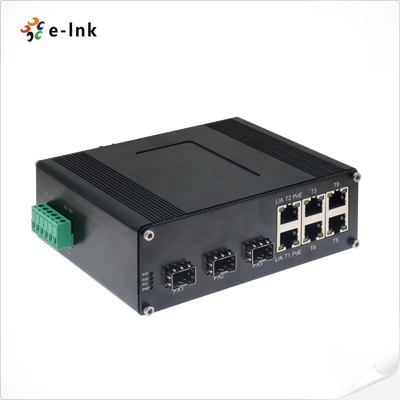

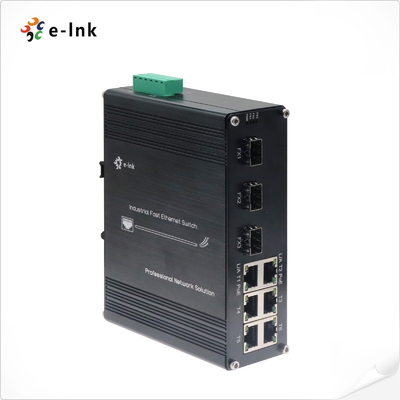

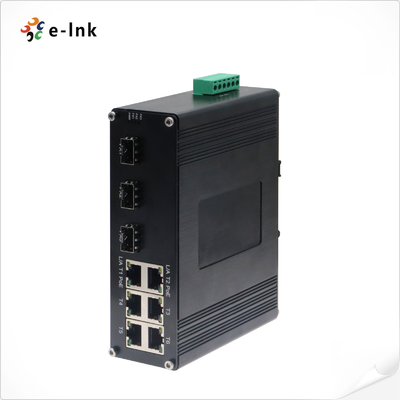

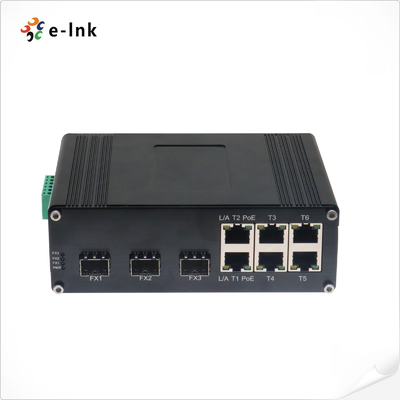

Large Image : Industrial 6-Port Fast Ethernet PoE Switch with 3 Fiber Uplinks 30W/Port

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	CE, RoHS, FCC, ISO9001
Model Number:	LNK-IMC306P
Document:	1E-link Communication & Net...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	$115-$150
Packaging Details:	Industrial PoE Switch Standard Export Package
Delivery Time:	5-12working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal, Credit Card
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Connector:	6 X RJ45	Optical Port:	3 X 100Base-FX (SFP, SC, FC, ST Optional)
Operating Temperature:	-40°C To 80°C (-40°F To 176°F)	Input Power:	48~57VDC, Redundant Power (6-pin Terminal Block)
Dimensions (WxDxH):	150 X 115 X 50 Mm	Weight:	0.6Kg
Highlight:	Industrial 6-port PoE Ethernet switch , 10/100T 802.3af/at PoE switch , 3-port 100BASE-FX industrial switch

Industrial 6-Port Fast Ethernet PoE Switch with 3 Fiber Uplinks 30W/Port

Overview

The LNK-IMC306P is a compact industrial-grade PoE switch featuring six Fast Ethernet PoE+ ports and

three fiber uplinks. Each RJ45 port delivers up to 30W power for IP cameras, access points, and other

devices, while the fiber interfaces extend network reach across long distances. With redundant power,

fanless metal housing, and wide -40°C to 80°C operation, this switch ensures stable connectivity in

security monitoring, factory automation, and remote site networking.

Features

PoE Power Delivery: 6×10/100Mbps RJ45 ports with IEEE 802.3af/at PoE+ support
Fiber Uplinks: 3×100Base-FX ports with SFP/SC/FC/ST options for flexible deployment
Rugged Reliability: Aluminum case, fanless design, redundant DC input
Industrial-Grade: Wide operating temperature (-40°C to +80°C), MTBF >200,000 hrs
Efficient Networking: Store-and-forward, IEEE 802.3x flow control, EEE power saving
Secure & Protected: Overload auto-recovery, reverse polarity protection, EMC immunity

Technical Indexes

Ethernet
Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX/FX
	IEEE802.3x Flow Control
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
Forward & Filtering Rate:	14,880pps (10Mbps)
Forward & Filtering Rate:	148,800pps (100Mbps)
Packet Buffer Memory:	512K bits
Processing Type:	Store-and-Forward
Address Table Size:	1024 MAC Addresses
Interface
Connector:	6 x RJ45
Optical Port:	3 x 100Base-FX (SFP, SC, FC, ST Optional)
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	48~57VDC, Redundant Power (6-pin Terminal Block)
Power Consumption:	180W Max. (PoE in use)
Power Consumption:	5W Max. (PoE not in use)
Standard:	IEEE802.3af/at
PoE:
Port:	RJ45 Port 1 ~ Port 6
Max. Power per Port:	30W Max per port (Alternative B Mode)
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
LED Indicators:
Power:	PWR Status
PoE:	Per Port Status
Ethernet (Per Port):	Link/Activity
Fiber:	FX1, FX2, FX3
Dimensions (WxDxH):	150 x 115 x 50 mm
Weight:	0.6Kg
Casing:	Aluminum Case

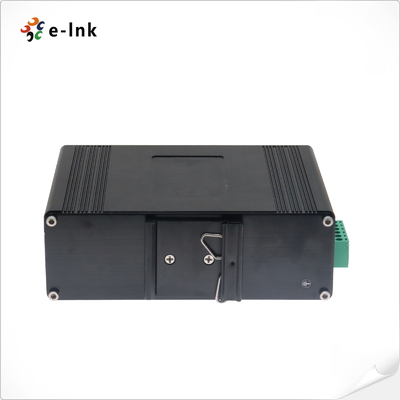

Mounting Options:	DIN-Rail
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC306P	Industrial Ethernet Switch: 6-Port 10/100Base-TX (6-port PoE+) + 3-port 100BASE-FX Fiber, Multimode, Dual Fiber, SC, 2KM
LNK-IMC306P-20	Industrial Ethernet Switch: 6-Port 10/100Base-TX (6-port PoE+) + 3-port 100BASE-FX Fiber, Single Mode, Dual Fiber, SC, 20KM
LNK-IMC306PS-20	Industrial Ethernet Switch: 6-Port 10/100Base-TX (6-port PoE+) + 3-port 100BASE-FX Fiber, Single Mode, Single Fiber, SC, 20KM
LNK-IMC306PF-20	Industrial Ethernet Switch: 6-Port 10/100Base-TX (6-port PoE+) + 3-port 100BASE-FX Fiber, Single Mode, Single Fiber, FC, 20KM
LNK-IMC306P-SFP	Industrial 6-port 10/100BASE-T (6-port PoE+) + 3-port 100BASE SFP Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed.
Power Options	► 240W/5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	► Power Supply is to be purchased separately.
