Industrial 8-Port PoE+ Gigabit Switch with 2×SFP Fiber Uplinks 30W/Port

Large Image : Industrial 8-Port PoE+ Gigabit Switch with 2×SFP Fiber Uplinks 30W/Port

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	E-link
Certification:	CE, RoHS, FCC, ISO9001
Model Number:	LNK-IMC208GP
Document:	1E-link Communication & Net...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	$120-$155
Packaging Details:	Industrial PoE Switch Standard Export Package
Delivery Time:	5-12working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal, Credit Card
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Connector:	8 X RJ45	Optical Port:	2 X 100/1000Base-FX (SFP, SC, FC, ST Optional)
Input Power:	48~57VDC, Redundant Power (6-pin Terminal Block)	Power Consumption:	253W Max(PoE In Use)/5W Max. (PoE Not In Use)
Dimensions (WxDxH):	150 X 115 X 50 Mm	Weight:	0.6Kg
Highlight:	Industrial 8-port PoE switch , Gigabit Ethernet PoE switch , 802.3at industrial network switch

Industrial 8-Port PoE+ Gigabit Switch with 2×SFP Fiber Uplinks 30W/Port

Overview

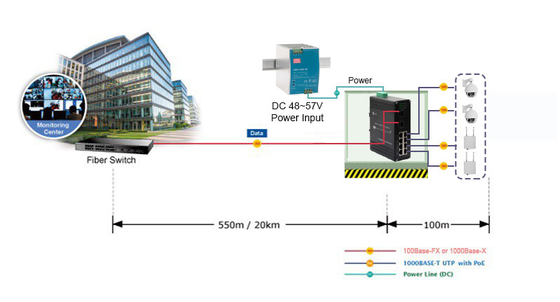

The LNK-IMC208GP is a rugged industrial-grade PoE+ Ethernet switch equipped with 8 Gigabit copper

ports and 2 dual-rate fiber uplinks. Each RJ45 port delivers up to 30W of IEEE 802.3at power, making it

ideal for IP cameras, access points, and IoT devices. Built for reliability, it supports redundant DC power,

wide -40°C to 80°C operation, and DIN-rail mounting—perfect for surveillance, automation, and remote

networking in harsh environments.

Features

High-Power PoE+: 8×Gigabit ports with 30W PoE each (up to 240W total)

Fiber Uplinks: 2×100/1000 FX ports with SFP/SC/FC/ST options

Strong Reliability: Fanless aluminum housing, DIN-rail mount, redundant power

Industrial Design: Wide operating range -40°C to +80°C, MTBF >200,000 hrs

Efficient Networking: Supports jumbo frames (9K), IEEE 802.3az energy saving

Robust Protection: Overload auto-reset, reverse polarity safeguard, EFT/ESD immunity

Technical Indexes

Ethernet
Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX/FX
	IEEE802.3ab 1000BASE-T
	IEEE802.3z 1000BASE-X
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	2.75M bits
Processing Type:	Store-and-Forward
Max Packet Length:	9K Bytes Jumbo Frame
Address Table Size:	4K MAC Addresses
Interface
Connector:	8 x RJ45
Optical Port:	2 x 100/1000Base-FX (SFP, SC, FC, ST Optional)
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	48~57VDC, Redundant Power (6-pin Terminal Block)
Power Consumption:	253W Max. (PoE in use)
Power Consumption:	5W Max. (PoE not in use)
Standard:	IEEE802.3af/at
PoE:
Port:	RJ45 Port 1 ~ Port 8
Max. Power per Port:	30W Max per port
Power Pin Assignment	1/2(+), 3/6(-) or 4/5(+), 7/8(-)
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
LED Indicators:
Power:	Power1, Power2 Status
PoE:	Per Port Status
Ethernet(Per Port):	Link/Activity
Fiber:	FX1, FX2
Dimensions (WxDxH):	150 x 115 x 50 mm
Weight:	0.6Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail mount
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC208GP	Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE+) + 2-port 100/1000BASE-X Fiber, Multimode, Dual Fiber, SC, 550m
LNK-IMC208GP-20	Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE+) + 2-port 100/1000BASE-X Fiber, Single Mode, Dual Fiber, SC, 20KM
LNK-IMC208GPS-20	Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE+) + 2-port 100/1000BASE-X Fiber, Single Mode, Single Fiber, SC, 20KM
LNK-IMC208GPF-20	Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE+) + 2-port 100/1000BASE-X Fiber, Single Mode, Single Fiber, FC, 20KM
LNK-IMC208GP-SFP	Industrial 8-port 10/100/1000BASE-T (8-port PoE+) + 2-port 100/1000BASE SFP Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed
Power Options	► 240W/5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	► Power Supply is to be purchased separately.
