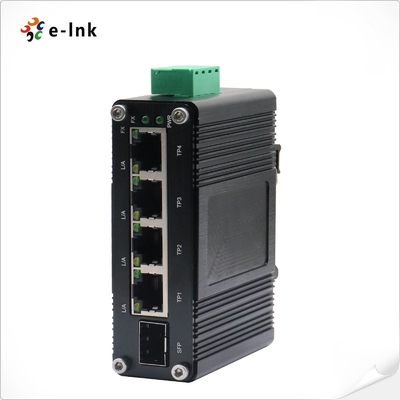

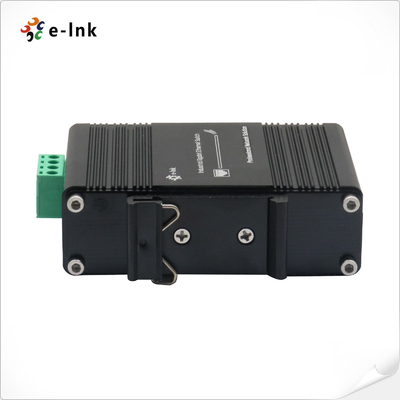

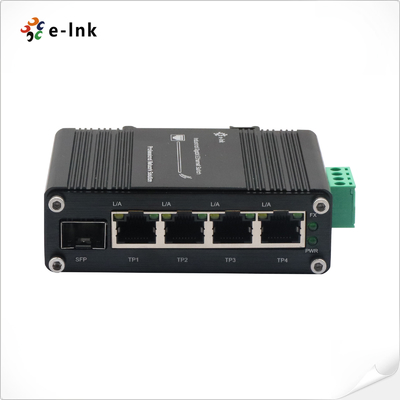

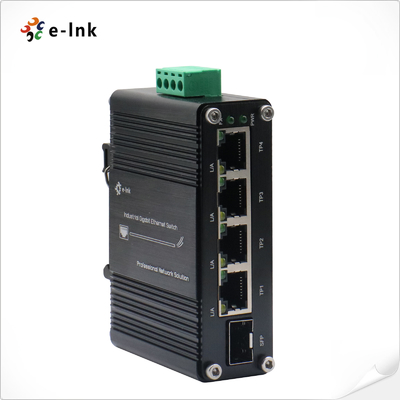

Mini Industrial 4-Port 10/100/1000T + 1-Port 100/1000X SFP Gigabit Ethernet Switch
Overview
The LNK-IMC104G-SFP is a compact unmanaged industrial switch with 4 Gigabit copper ports and 1
dual-speed 100/1000X SFP slot. Built with a rugged IP40-rated metal housing, it is designed to
withstand extreme environments from -40°C to +80°C. Featuring flexible fiber uplink, wide 12–48VDC
power input, and plug-and-play operation, this switch delivers reliable and energy-efficient Ethernet
connectivity for industrial automation, surveillance, and remote networking applications.
Features
4× 10/100/1000Mbps RJ45 + 1× 100/1000Mbps SFP fiber port (auto-detect)
Wide-range 12–48VDC terminal block power input
Rugged IP40 aluminum enclosure, compact and durable design
Extended operating temperature: -40°C to +80°C
Supports IEEE 802.3x flow control & IEEE 802.3az Energy Efficient Ethernet
20Gbps backplane switching capacity with non-blocking performance
DIN-rail or wall-mount installation for flexible deployment
Low power consumption <6W, high MTBF >200,000 hrs
Technical Indexes
Ethernet | |
Standards: | IEEE 802.3 Ethernet |
IEEE 802.3u Fast Ethernet | |
IEEE 802.3ab Gigabit Ethernet | |
IEEE 802.3x Full-Duplex Flow Control | |
IEEE 802.3az Energy Efficient Ethernet (EEE) | |
Forward & Filtering Rate: | 14,880pps (10Mbps) |
148,800pps (100Mbps) | |
1,488,000pps (1000Mbps) | |
Packet Buffer: | 1Mbits |
Packet Length: | 10Kbytes |
MAC Address Table: | 8K |
Switch Fabric: | 10Gbps/non-blocking |
Exchange Property | Backplane bandwidth: 20Gbps; |
Connector: | 4 10/100/1000BASET RJ45 auto-MDI/MDI-X ports |
Interface | |
Connector: | 4 x RJ45 |
Optical Port: | 1 x SFP 1000Base-X or 100Base-FX (auto detection) |
Environmental | |
Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
Relative Humidity: | 5% to 95% non-condensing |
MTBF | > 200,000 hrs |
Electrical and Mechanical | |
Input Power: | 12~48VDC (Terminal Block) |
Power Consumption: | <6W |
Power Input Overload: | Automatic Resettable |
Reverse Polarity: | Present |
Dimensions (WxDxH): | 95 x 70x 29mm |
Weight: | 0.25Kg |
Casing: | Aluminum Case |
Mounting Options: | DIN-Rail / Wall-mount |
LED Indicators: | |
PWR: | Power |
L/A: | Link/Activity |
SPD | Data Rate |
Regulatory Approvals | |
ISO9001 | |
EN55022:2010+AC: 2011, Class A | |
EN 61000-3-2: 2006+A1: 2009+A2: 2009 | |
EN 61000-3-3: 2013 | |
EN55032:2017 | |
IEC 61000-4-2: 2008 (ESD) | |
IEC 61000-4-3: 2010 (RS) | |
IEC 61000-4-4: 2012 (EFT) | |
IEC 61000-4-5: 2014 (Surge) | |
IEC 61000-4-6: 2013 (CS) | |
IEC 61000-4-8: 2009 (PFMF) |
Ordering Information
Model | Description |
LNK-IMC104G-SFP | Mini Industrial 4-Port 10/100/1000T + 1-Port 100/1000X SFP Gigabit Ethernet Switch |
SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
► SFP module is to be purchased separately. | |
Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
Power Options | ► Power Supply is to be purchased separately |
