Product Details:
Payment & Shipping Terms:
|
| Input Signals: | HDMI | Power: | 5V DC |
|---|---|---|---|
| Fiber Connector: | 1 X LC Connector | Operation Temperature: | -20°C To + 70°C |
| Size: | 2.24 X 0.6 X 0.55 In (57x16x14mm) | Weight: | 0.1 Kg / 0.22 Lb |
Mini 4K/30Hz HDMI over Single-Core Multimode Fiber Extender
Mini Fiber Extender Advantages
► Supports HDMI Video up to 4K/30H
► No Settings or Adjustments Necessary
► Adopt WDM technology to realize high-definition audio and video transmission through a single OM3 multi-mode optical fiber
► Supports up to 300m distance with OM3, 400m with OM4, 500m with OM5 fiber
► Integrated USB Connector for Power
► Low power consumption, only the RX module (Display side) needs external power supply
► Hot-Pluggable
► The TMDS signal is transmitted through a multimode optical fiber, which has good anti-interference performance
Mini Fiber Extender Technical Indexes
| Type of Extender | Mini 4K/30Hz HDMI over Single-Core Multimode Fiber Extender |
| Input Signals | HDMI |
| Signal Support | HDMI 1.4 HDMI format standard |
| Video Support | 4K@30Hz/1080p/1080i/720p |
| Audio Support | Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) |
| Website Specifications | Color space 444, 420, 400 |
| Fiber Connector | 1 x LC Connector |
| Transmission Rate | 10.2Gbps(3.4Gbps/CH) |
| Transmission Distance | 300m with OM3 fiber, 400m with OM4 fiber, 500m with OM5 fiber |
| Operating Temperature | -20°C to + 70°C |
| Storage Temperature | -40°C to + 85°C |
| Humidity | to 90% RH (non-condensing) |
| Safety Approvals | CE, RoHS, FCC |
| Dimension (WxDxH) | 2.24 x 0.6 x 0.55 in (57x16x14mm) |
| Weight | 0.1 kg / 0.22 lb |
| Operation Voltage | 5VDC |
| Operation Current | TX+RX: 75mA |
| Power Supply | Power Input +5VDC, 0.85A (Universal Type 50/60Hz, 100~240VAC) |
| Note | The module does not support HDCP and EDID transparent transmission |

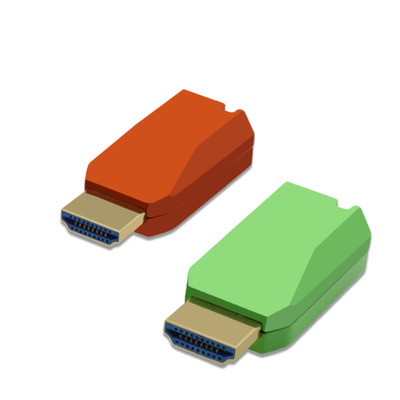

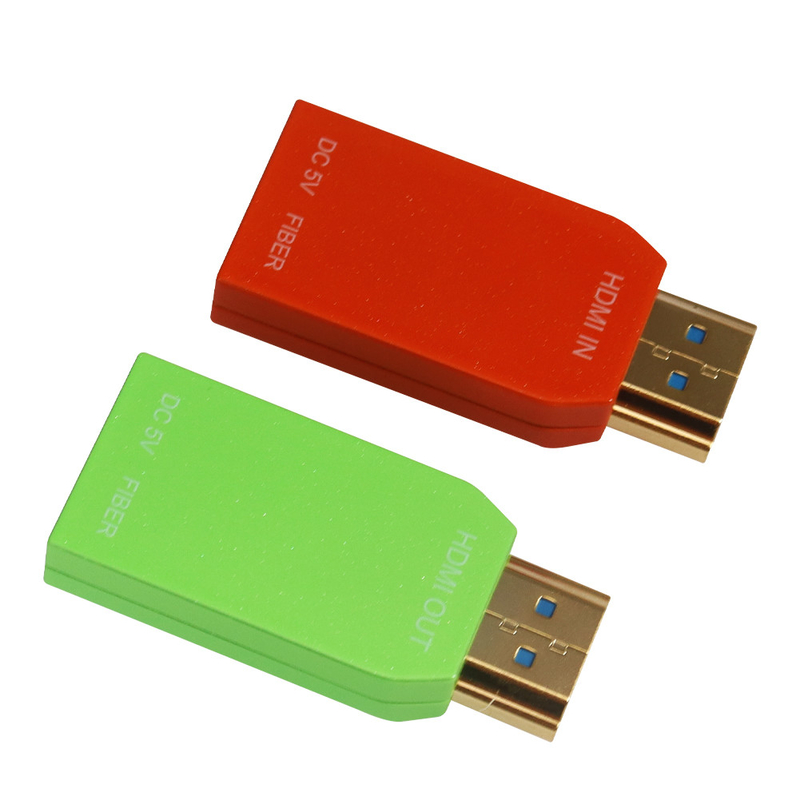

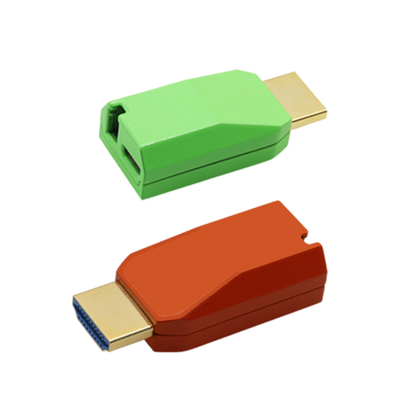

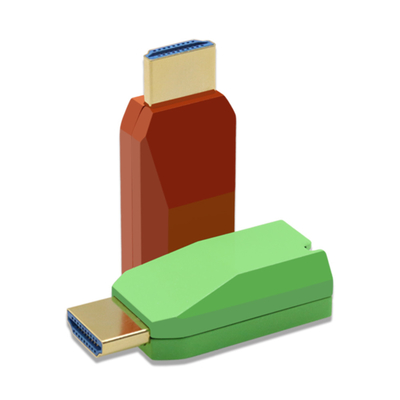

Mini Fiber Extender Overview
The LNK-108M is a mini 4K/30Hz HDMI over Single-Core MM fiber extender that is pluggable directly into your device. Extend your 4K video source over fiber up to 500m (with OM5 fiber) to your desired display with this incredibly compact set. The set ensures secure data transmission with minimal RFI/EMI emissions and maintains video quality without any degradation, as it does not contain any copper conductors.
The 4K HDMI optical fiber extenders are enclosed HDMI optical modules designed to support transmission of an uncompressed lossless HDMI 1.4 signal over OM5 multimode optical fiber at 850nm, up to distances of 500m, at a resolution of 4Kx2K. LNK-108M-T converts an HDMI signal to a single 10Gb/s serial data stream for transmission over single optical fibers. LNK-108M-R converts the serial data back to an HDMI signal. The transceivers meet RoHS compliance standards and are lead-free, adhering to the requirements of Europe and China. This product is perfect for applications such as large-screen displays, conferencing systems, and home entertainment. The device possesses anti-interference capabilities, ensuring the stability of the signal.
Ordering Information
| Model | Description |
| LNK-108M |
Mini 4K/30Hz HDMI over Single-Core Multimode Fiber Extender, LC, including 1 transmitter & 1 receiver, used by pairs, USB Power Input Distance: 300m with OM3 fiber, 400m with OM4 fiber, 500m with OM5 fiber |
