Mini 4K/60Hz HDMI2.0 over Single-Core Multimode Fiber Optic Extender

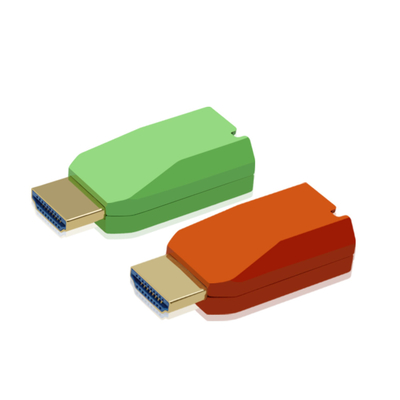

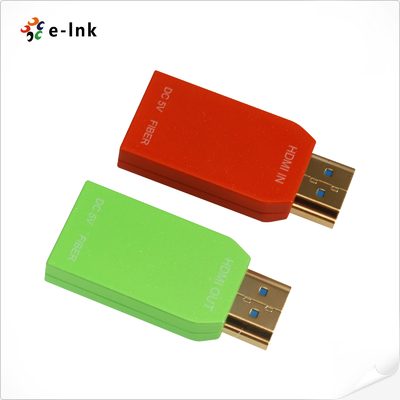

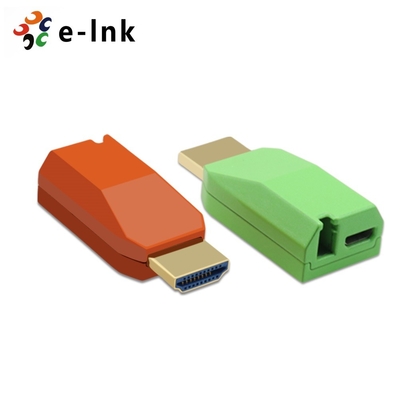

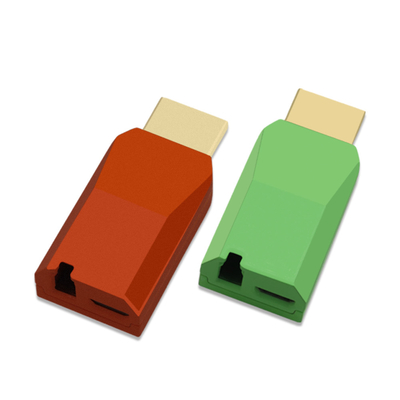

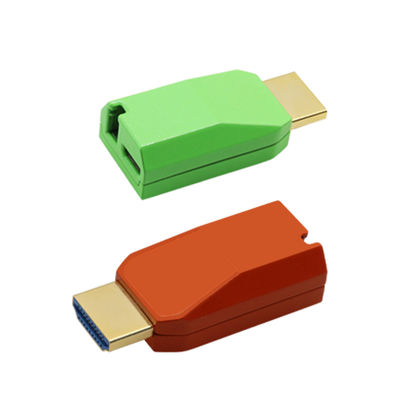

Large Image : Mini 4K/60Hz HDMI2.0 over Single-Core Multimode Fiber Optic Extender

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	CE, RoHS, FCC, ISO9001
Model Number:	LNK-109M
Document:	2E-link Video Transmission ...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pair
Price:	$240-$290
Packaging Details:	HDMI Over Fiber Optic Extender Standard Export Package
Delivery Time:	5-8 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal
Supply Ability:	1000PCS/Month

Contact Now

Detailed Product Description

Type:	Mini HDMI 2.0 Fiber Extender	Resolution:	4K@60Hz / 4K@30Hz / 1080p
Audio:	Dolby TrueHD, DTS-HD, PCM 2CH	Connector:	1 × LC (Multimode Fiber)
Max Distance:	300m (OM4 Fiber)	Operating Temp:	-40°C To +70°C
Highlight:	Mini HDMI fiber optic extender , 4K 60Hz HDMI2.0 extender , single-core multimode fiber extender

Mini 4K/60Hz HDMI2.0 over Single-Core Multimode Fiber Optic Extender

Overview

The LNK-109M is a lightweight HDMI 2.0 fiber extender designed for transmitting uncompressed 4K/60Hz

video and immersive audio through a single-core multimode fiber. Supporting distances up to 300m with

OM4 fiber, it ensures smooth, interference-free signal delivery. With plug-and-play simplicity,

EDID/HDCP/CEC pass-through, and ultra-low power design, it is perfect for professional AV systems,

large-screen displays, and home entertainment setups.

Features

Delivers true 4K UHD video at 60Hz (YUV 4:4:4)

Single LC connector, up to 300m over OM4 fiber

Transparent EDID, HDCP, and CEC support

TX powered via HDMI port, RX powered via Micro USB

Compact, hot-pluggable design for easy installation

Strong EMI/RFI immunity, ensuring stable transmission

Low power consumption: <1.2W total (TX+RX)

Ideal for conference rooms, control centers, and theaters

Technical Indexes

Type of Extender	Mini 4K/60Hz HDMI2.0 over Single-Core Multimode Fiber Extender
Input Signals	HDMI2.0
Signal Support	HDMI 2.0 HDMI format standard
Video Support	4K@60Hz/4K@30Hz/1080p/1080i/720p
Audio Support	Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)
Website Specifications	Color space 444, 420, 400
EDID	Support
HDCP	Support

CEC	Support
Fiber Connector	1 x LC Connector
Transmission Rate	18Gbps(6Gbps/CH)
Transmission Distance	OM4 Multi Mode, up to 984ft (300M)
Operating Temperature	-40 .C to + 70 .C
Storage Temperature	-20 .C to + 85 .C
Humidity	to 90% RH (non-condensing)
Safety Approvals	CE, RoHS, FCC
Dimension (WxDxH)	2.24 x 0.6 x 0.55 in (57x16x14mm)
Weight	0.1 kg / 0.22 lb
Operation Voltage	5VDC
Operation Current	TX:150mA
Power Supply	TX: 5V (take power from the HDMI interface on the Source side, some devices cannot provide sufficient power supply, need to connect external power supply) RX: need external power supply 5V, use Micro USB charging cable
Power Consumption	TX: <800mW; RX: <400mW

Ordering Information

Model

Description

LNK-109M

Mini 4K/60Hz HDMI2.0 over Single-Core Multimode Fiber Extender, OM4 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, used by pairs, USB Power Input

Application

Mini 4K/60Hz HDMI2.0 over Single-Core Multimode Fiber Optic Extender 0
