Product Details:
Payment & Shipping Terms:
|
| Forward & Filtering Rate:: | 14,880pps (10Mbps)/148,800pps (100Mbps)/1,488,000pps (1000Mbps) | Connector: | 8 X RJ45 |
|---|---|---|---|
| Optical Port: | 2 X 100/1000Base-X SFP | Operating Temperature: | -40°C To 80°C (-40°F To 176°F) |
| Input Power: | 12~48VDC, Redundant Power (4-pin Terminal Block) | Power Consumption: | 5W Max |
| Dimensions (WxDxH): | 95 X 63 X 46 Mm | Weight: | 300g |

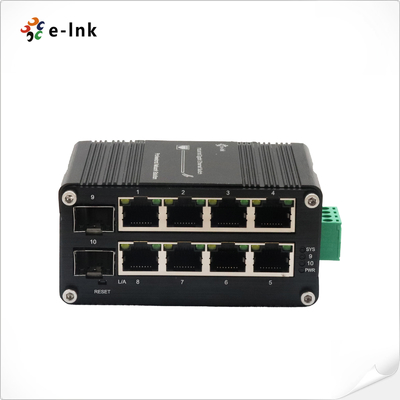

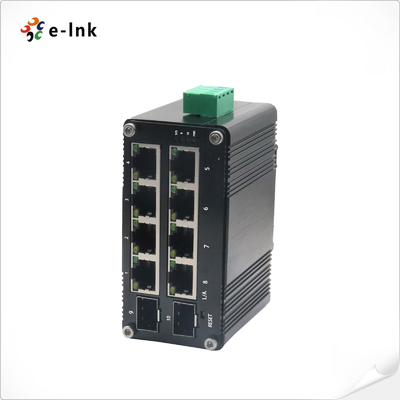

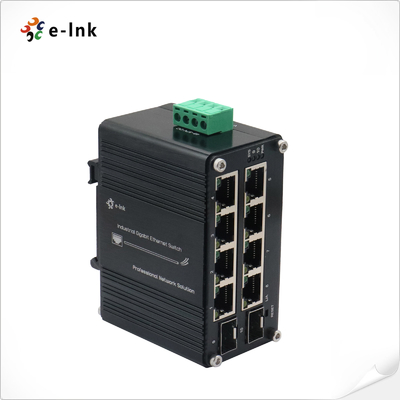

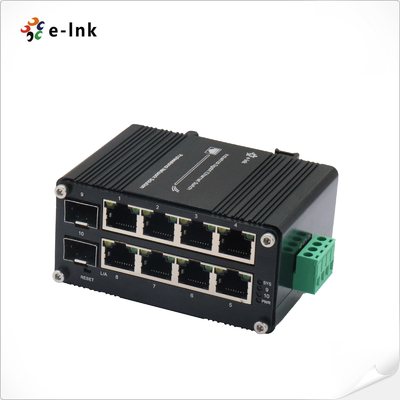

Mini Industrial Managed 8-Port 10/100/1000T + 2-Port 100/1000X SFP Ethernet Switch
Industrial Ethernet Switch Advantages
► 8x10/100/1000Base-TX + 2x100/1000Base-X SFP
► 10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Supports WEB Management
► Support IEEE802.3/802.3u/802.3ab/802.3z/802.3x store and forward mode
► Support IEEE 802.3D/W/S standard STP/RSTP protocol
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Redundant Power Inputs
► Supports DIN-Rail installation
Industrial Ethernet Switch Technical Indexes
| Backplane bandwidth | 20Gbps |
| Packet Buffer Memory: | 9216 bits |
| Processing Type: | Store-and-Forward |
| Max Packet Length: | 9K Bytes Jumbo Frame |
| Address Table Size: | 4K MAC Addresses |
| Interface | |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| LED Indicators: | |
| PWR: | Power Status |
| Ethernet (Per Port): | Link/Activity |
| Fiber: | Gigabit SFP Port: F9~F10 |
| Casing: | Aluminum Case |
| Software Features | |
| Multicast Support | Support IGMP Snooping V1/V2/V3 |
| VLAN | Support IEEE 802.1Q 4K VLAN |
| QOS | Support Port, 1Q, ACL, DSCP, CVLAN, SVLAN, DA, SA, Port Priority, Queue Weight |
| Diagnostic Maintenance | Support port mirroring, Syslog, Ping |
| Management Function | WEB |
| Security | Broadcast/Multicast Storm Protection, MAC filtering, MAC Constraint |
Industrial Ethernet Media Converter Overview

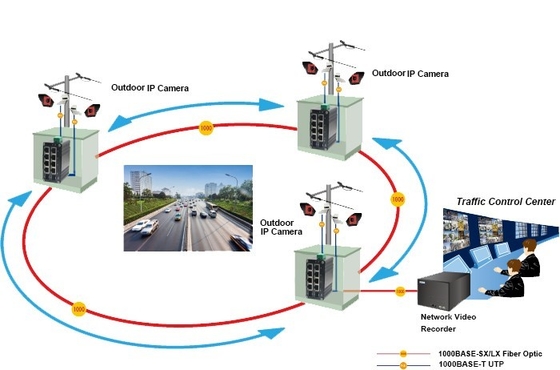

LNK-IMC208SGP-SFP is a managed industrial network switch featuring 8 ports of 10/100/1000Base-TX and 2 ports of 100/1000Base-X SFP. The switch provides 8 port RJ45 Ethernet ports. The 2-port 100/1000Base-X SFP supports 1 or 2 core Single-mode or Multi-mode fiber. Due to its reliable design and user-friendliness, the product stands out as an excellent option for connecting networks comprising devices like IP cameras and wireless access points across remote sites.
Ordering Information
| Model | Description |
| LNK-IMC208SG-SFP | Mini Industrial Managed 8-Port 10/100/1000T + 2-Port 100/1000X SFP Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
