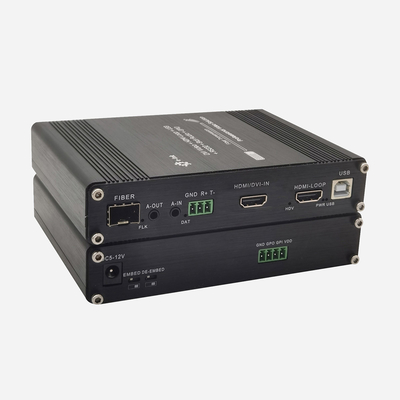

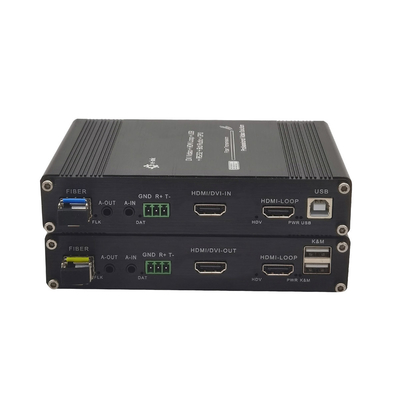

1Ch 1080P HDMI + 1Ch USB KVM + 1Ch RS232 + 1Ch Bidi Stereo Audio plus 1Ch GPIO over Fiber Extender

Large Image : 1Ch 1080P HDMI + 1Ch USB KVM + 1Ch RS232 + 1Ch Bidi Stereo Audio plus 1Ch GPIO over Fiber Extender

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-KVM-HDMI-1D1BA1GO

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	HDMI Over Fiber Optic Extender Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Product Name:	HDMI Over Fiber Optic Extender	Power Supply:	The Power Adapter: DC 12V/1A
Power Dissipation:	MAX 6W	Dimension:	148 X 115 X 28 (mm)
Connector:	Female HDMI Type A	Operating Temperature:	-5℃ ~ +70℃

HDMI Over Fiber Optic Extender's Product Description:

The LNK-KVM-HDMI-1D1BA1GO Fiber optic extender provides extension of HDMI signals long distances over one fiber optic cable. This HDMI Over Fiber Optic Extender supports high resolution up to 1080P, KVM, RS232, GPIO signal and external audio transmission function. This HDMI Over Fiber Optic Extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

1Ch 1080P HDMI + 1Ch USB KVM + 1Ch RS232 + 1Ch Bidi Stereo Audio plus 1Ch GPIO over Fiber Extender 0

HDMI Over Fiber Optic Extender's Features:

► Transmits HDMI video signals up to 20km over one fiber optic cable

► Support video resolution up to 1920*1080P@60Hz

► Support keyboard and mouse signal transmission

► Support external stereo audio bi-directional transmission

► Support RS232 signal unidirectional transmission, baud rate can be up to 460,800bps

► Support general-purpose input/output (GPIO) signal

► Support HDMI loop out

► Auto EDID can be disabled via DIP switch

► Compliance with HDMI 1.0 and HDCP 1.2 standard

► High compatibility can auto-match source and display device

► Built-in automatic adjustment system, make the image smooth, clear and stable

► Built-in ESD protection system

HDMI Over Fiber Optic Extender's Technical Parameters:

Video	Standards	HDMI V1.3
	Maximum pixel clock	165MHz
	Maximum data rate	2.97Gbps
	Connector	HDMI
	Impedance	100Ω
Audio	Interface	3.5mm earphone seat
K/M	Interface	To PC: MINI-USB To keyboard and mouse: USB-A
GPIO	Interface	Industrial terminal
RS232	Interface	Industrial terminal
	Signal direction	Unidirectional
	Baud rate	Self-adaptive, Max: 460,800bps
	Data bits	8
Optical fiber	Interface	LC connector
	Fiber type	Single-mode single fiber
	Wavelength	Single-mode 1310nm
	Interface bandwidth	3Gbps

HDMI Over Fiber Optic Extender's Application:

1Ch 1080P HDMI + 1Ch USB KVM + 1Ch RS232 + 1Ch Bidi Stereo Audio plus 1Ch GPIO over Fiber Extender 1

HDMI Over Fiber Optic Extender‘s Support and Services:

HDMI Over Fiber Optic Extender technical support and services include:

24/7 online technical support
Free installation services
Onsite technical support
Regular system updates and upgrades
Training and education

HDMI Over Fiber Optic Extender's Packing and Shipping:

HDMI Over Fiber Optic Extender is packaged for shipping in a strong, corrugated box designed to ensure safe transport and handling. The interior is filled with protective foam inserts to help cushion the product against shock and vibration, while the exterior of the box is clearly labeled with product and shipping information.

HDMI Over Fiber Optic Extender's Ordering Information:

Model	Description
LNK-KVM-HDMI-1D1BA1GO	1Ch 1080P HDMI + 1Ch USB KVM + 1Ch RS232 + 1Ch Bidi Stereo Audio + 1Ch GPIO over Fiber Extender, HDMI Loop Out, SMF, 20KM
LNK-HDMI-1D1BA	1Ch 1080P HDMI + 1Ch RS232 + 1Ch Bidi Stereo Audio over Fiber Extender, HDMI Loop Out, SMF, 20KM
