1Ch HDMI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender

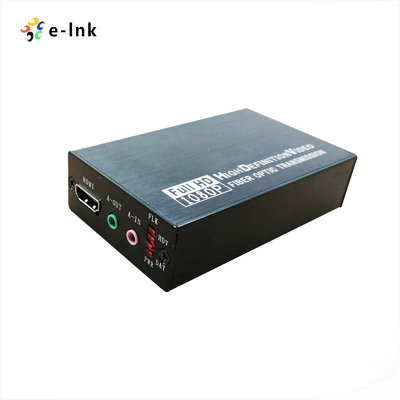

Large Image : 1Ch HDMI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-HF100DA

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	HDMI Over Fiber Optic Extender Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Product Name:	HDMI Over Fiber Optic Extender	Power Supply:	DC 5~12V

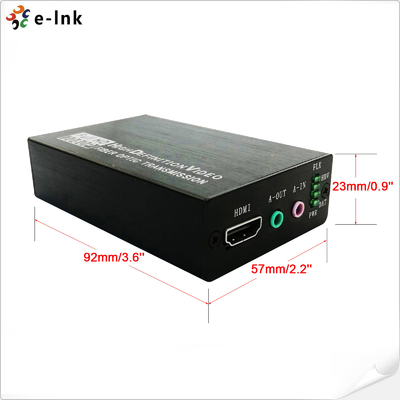

Maximum Data Rate:	6.75Gbps	Dimension:	92 X 57 X 23 (mm)
Connector:	Female HDMI Type A	Operating Temperature:	-20°C To + 70°C

HDMI Over Fiber Optic Extender's Product Description:

The LNK-HF100DA Series HDMI Fiber optic extender provides extension of HDMI, bidirectional audio and RS232 over one fiber optic cable. This HDMI Over Fiber Optic Extender supports HDMI1.4 mode. This HDMI Over Fiber Optic Extender is fully compatible with HDMI 1.4b, HDMI 1.4b 3D and HDCP 1.4, high resolution up to 1920*1200@60Hz. This HDMI Over Fiber Optic Extender can be applied in a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

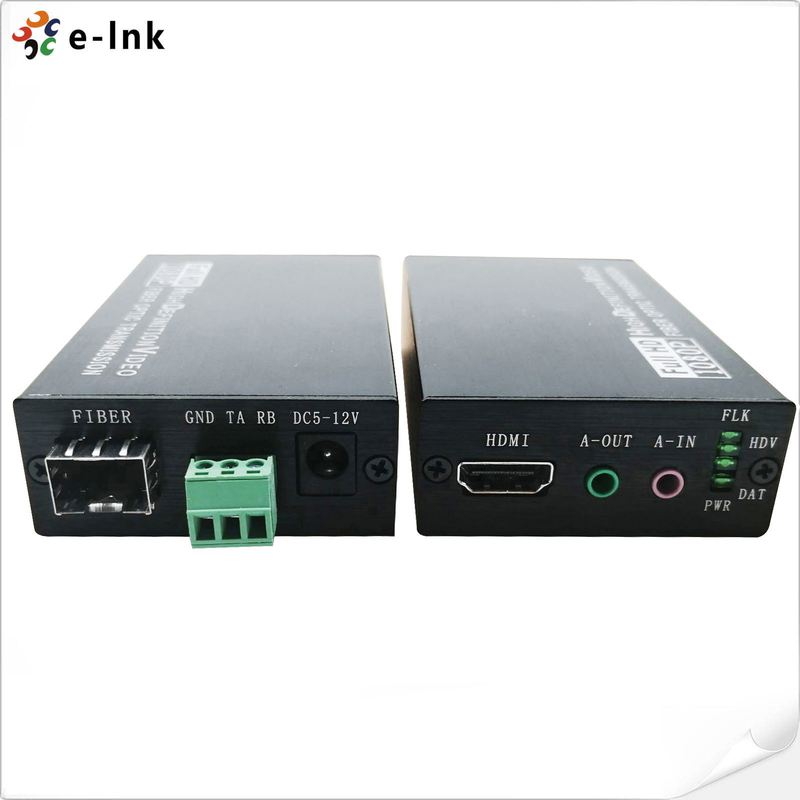

1Ch HDMI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender 0

HDMI Over Fiber Optic Extender's Features:

► Transmits HDMI video signals, RS232 and audio up to 20km over a single fiber cable;

► Support resolution up to 1920*1200@60Hz ;

► Special support 1600*1200 @60HZ

► Support external bidirectional stereo audio transmission;

► Compliance with HDMI 1.4B 3D and HDCP 1.2 standard;

► Single-port HDMI 1.4b receiver

► High compatibility, can auto-match source and display device;

► Built-in automatic adjustment system, make the image smooth, clear and stable;

► Built-in ESD protection system;

► Simple to install, plug and play;

► Support EDID

HDMI Over Fiber Optic Extender's Technical Parameters:

Video	Standards	HDMI1.4B 3D; HDCP1.4
	Maximum pixel clock	165MHz
	Maximum data rate	6.75Gbps
	Connector	Female HDMI type A
	Impedance	100Ω
Audio	Interface	3.5MM external stereo audio
	Transmitter	1Ch Input + 1Ch Ouptut
	Receiver	1Ch Input + 1Ch Ouptut
RS232	Interface	3-Pin Terminal Block
	Baud Rate	≤115200bps
Optical fiber	Interface	SFP model – LC connector
	Fiber type	Single-mode
	Wavelength	850nm/1310nm/1550nm
	Interface bandwidth	3Gbps

HDMI Over Fiber Optic Extender's Application:

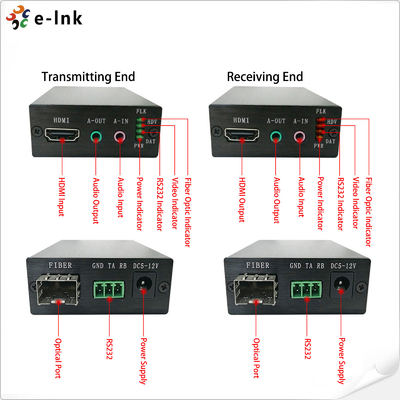

1Ch HDMI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender 1

HDMI Over Fiber Optic Extender‘s Support and Services:

HDMI Over Fiber Optic Extender technical support and services include:

24/7 online technical support
Free installation services
Onsite technical support
Regular system updates and upgrades
Training and education

HDMI Over Fiber Optic Extender's Packing and Shipping:

HDMI Over Fiber Optic Extender is packaged for shipping in a strong, corrugated box designed to ensure safe transport and handling. The interior is filled with protective foam inserts to help cushion the product against shock and vibration, while the exterior of the box is clearly labeled with product and shipping information.

HDMI Over Fiber Optic Extender's Ordering Information:

Model	Description
LNK-HF100DA	1Ch HDMI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender, LC(SFP), Multi-mode fiber, 500m, including 1 transmitter & 1 receiver, used by pairs
LNK-HF100DA-20	1Ch HDMI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender, LC(SFP), Single-mode fiber, 20km, including 1 transmitter & 1 receiver, used by pairs
