Product Details:
Payment & Shipping Terms:
|
| Product Name: | HDMI Over Fiber Optic Extender | Power Supply: | DC 5V |
|---|---|---|---|

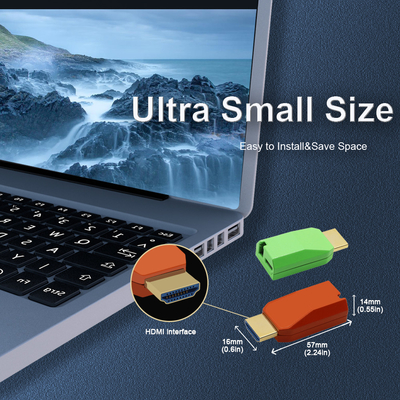

| Gross Weight: | 0.1 Kg / 0.22 Lb | Dimension: | 2.24 X 0.6 X 0.55 In (57x16x14mm) |
| Signal Support: | HDMI 2.0 HDMI Format Standard | Operating Temperature: | -20°C To + 70°C |
HDMI Over Fiber Optic Extender's Product Description:

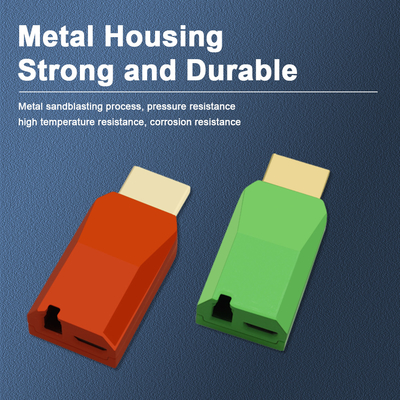

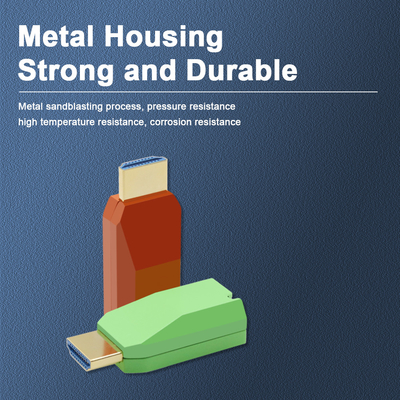

The LNK-201M is a mini 8K/60Hz HDMI2.1 over Single-Core MM compact fiber extender that is pluggable directly into your device. This HDMI Over Fiber Optic Extender extends your 4K video source over fiber up to 100m to your desired display with this incredibly compact set. This HDMI Over Fiber Optic Extender also promotes secure data with negligible RFI/EMI emissions or loss of video quality due to no copper conductor present.
This HDMI Over Fiber Optic Extender is enclosed HDMI optical modules designed to support transmission of an uncompressed lossless HDMI 2.1 signal over OM5 multimode optical fiber at 850nm, up to distances of 100m, at a resolution of 8K/60Hz. LNK-201M-T converts an HDMI signal to a single 48Gb/s serial data stream for transmission over single optical fibers. LNK-201M-R converts the serial data back to an HDMI signal. This HDMI Over Fiber Optic Extender is RoHS compliant and lead-free per requirements in Europe and China. This HDMI Over Fiber Optic Extender is ideal for large-screen display, conferencing systems and home entertainment and so on.
► Supports HDMI2.1 Video up to 8K/60Hz (Y:U:V 4:4:4)
► No Settings or Adjustments Necessary
► Adopt WDM technology to realize high-definition audio and video transmission through a single OM5 multi-mode optical fiber
► Supports up to 100m Transmission Distance with OM5 multimode fiber
► Standard HDMI2.1 Connector

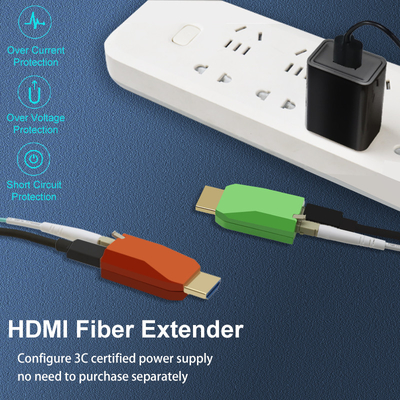

► Integrated USB Connector for Power
► Hot-Pluggable
► The TMDS signal is transmitted through a multimode optical fiber, which has good anti-interference performance
► Uses Small, Reliable LC Optical Connector
► Support EDID, HDCP, CEC transparent transmission
| Video Support |
8K@60Hz/4K@120Hz/1080p/1080i/720p Up to 7680x4320@60Hz |
| Audio Support | Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) |
| Website Specifications | Color space 444, 420, 400 |
| EDID, HDCP, CEC | Support |
| Fiber Connector | 1 x LC Connector |
| Transmission Rate | 48Gbps |
| Transmission Distance | OM5 Multi Mode, up to 100M |
| Operating Temperature | -40°C to + 70°C |
| Storage Temperature | -20°C to + 85°C |
| Humidity | to 90% RH (non-condensing) |
| Safety Approvals | CE, RoHS, FCC |
| Operation Current | TX:150mA |
HDMI Over Fiber Optic Extender technical support and services include:
| Model | Description |
| LNK-201M | Mini 8K/60Hz HDMI2.1 over Single-Core Multimode Fiber Extender, OM5 Multi-mode Fiber, 100 meters, LC, including 1 transmitter & 1 receiver, used by pairs, USB Power Input |
