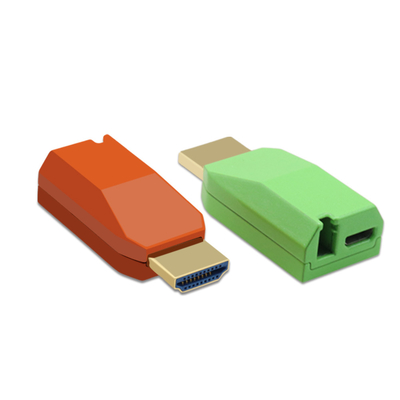

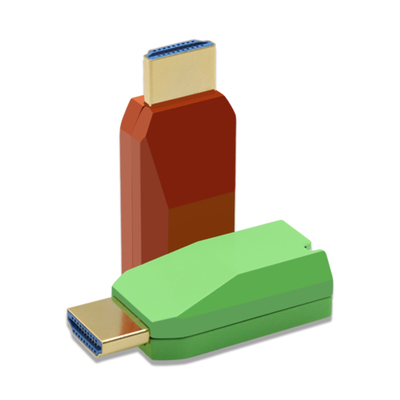

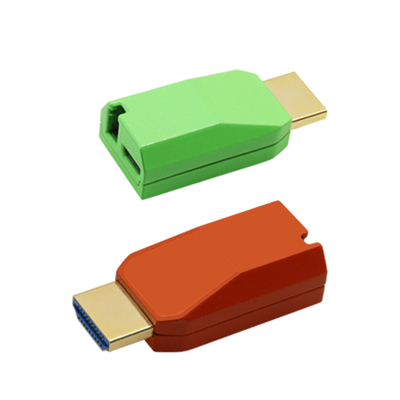

Micro Pluggable 4K/60Hz HDMI2.0 over Single-Core Multimode Fiber Extender

Micro Pluggable 4K/60Hz HDMI2.0 over Single-Core Multimode Fiber Extender
Micro Pluggable 4K/60Hz HDMI2.0 over Single-Core Multimode Fiber Extender Micro Pluggable 4K/60Hz HDMI2.0 over Single-Core Multimode Fiber Extender Micro Pluggable 4K/60Hz HDMI2.0 over Single-Core Multimode Fiber Extender Micro Pluggable 4K/60Hz HDMI2.0 over Single-Core Multimode Fiber Extender

Large Image :  Micro Pluggable 4K/60Hz HDMI2.0 over Single-Core Multimode Fiber Extender

Product Details:
Place of Origin: China
Brand Name: E-link
Certification: ISO9001, CE, RoHS, FCC
Model Number: LNK-109M
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiation
Packaging Details: HDMI Over Fiber Optic Extender Standard Export Package
Delivery Time: 3~5 working days
Payment Terms: Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability: 5000pcs per month
Detailed Product Description
Product Name: HDMI Over Fiber Optic Extender Power Supply: DC 5V
Gross Weight: 0.1 Kg / 0.22 Lb Dimension: 2.24 X 0.6 X 0.55 In (57x16x14mm)
Signal Support: HDMI 2.0 HDMI Format Standard Operating Temperature: -20°C To + 70°C

HDMI Over Fiber Optic Extender's Product Description:

   The LNK-109M is a mini 4K/60Hz HDMI2.0 over Single-Core MM compact fiber extender that is pluggable directly into your device. This HDMI Over Fiber Optic Extender Extends your 4K video source over fiber up to 984ft/300m to your desired display with this incredibly compact set. This HDMI Over Fiber Optic Extender also promotes secure data with negligible RFI/EMI emissions or loss of video quality due to no copper conductor present.

   This HDMI Over Fiber Optic Extenderextenders are enclosed HDMI optical modules designed to support transmission of an uncompressed lossless HDMI 2.0 signal over multimode optical fiber at 850nm, up to distances of 300m. LNK-109M-T converts an HDMI signal to a single 18Gb/s serial data stream for transmission over single optical fibers. LNK-109M-R converts the serial data back to an HDMI signal.
Micro Pluggable 4K/60Hz HDMI2.0 over Single-Core Multimode Fiber Extender 0

  HDMI Over Fiber Optic Extender's Features:

Supports HDMI2.0 Video up to 4K/60Hz (Y:U:V 4:4:4)

No Settings or Adjustments Necessary

Adopt WDM technology to realize high-definition audio and video transmission through a single OM4 multi-mode optical fiber

► Supports up to 300m Transmission Distance with OM4 multimode fiber

Standard HDMI2.0 Connector

Integrated USB Connector for Power

Hot-Pluggable

► The TMDS signal is transmitted through a multimode optical fiber, which has good anti-interference

performance

Uses Small, Reliable LC Optical Connector
      ► Support EDID, HDCP, CEC transparent transmission

HDMI Over Fiber Optic Extender's Technical Parameters:

Video Support4K@60Hz/4K@30Hz/1080p/1080i/720p
Audio SupportDolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)
Website SpecificationsColor space 444, 420, 400
Fiber Connector1 x LC Connector
Transmission Rate18Gbps(6Gbps/CH)
Transmission DistanceOM4 Multi Mode, up to 984ft (300M)
Operating Temperature-40 .C to + 70℃
Storage Temperature-20 .C to + 85
Humidityto 90% RH (non-condensing)
Safety ApprovalsCE, RoHS, FCC

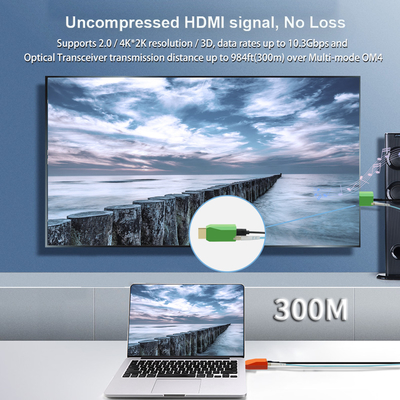

HDMI Over Fiber Optic Extender's Application:









Micro Pluggable 4K/60Hz HDMI2.0 over Single-Core Multimode Fiber Extender 1

HDMI Over Fiber Optic Extender‘s Support and Services:

HDMI Over Fiber Optic Extender technical support and services include:

  • 24/7 online technical support
  • Free installation services
  • Onsite technical support
  • Regular system updates and upgrades
  • Training and education

HDMI Over Fiber Optic Extender's Packing and Shipping:

    HDMI Over Fiber Optic Extender is packaged for shipping in a strong, corrugated box designed to ensure safe transport and handling. The interior is filled with protective foam inserts to help cushion the product against shock and vibration, while the exterior of the box is clearly labeled with product and shipping information.

HDMI Over Fiber Optic Extender's Ordering Information:



Model



Description



LNK-109M

Mini 4K/60Hz HDMI2.0 over Single-Core Multimode Fiber Extender, OM4 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, used by pairs, USB Power Input
