Micro Pluggable 4K/30Hz HDMI over Single-Core Multimode Fiber Extender

Large Image : Micro Pluggable 4K/30Hz HDMI over Single-Core Multimode Fiber Extender

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-108M

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	HDMI Over Fiber Optic Extender Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Product Name:	HDMI Over Fiber Optic Extender	Power Supply:	DC 5V

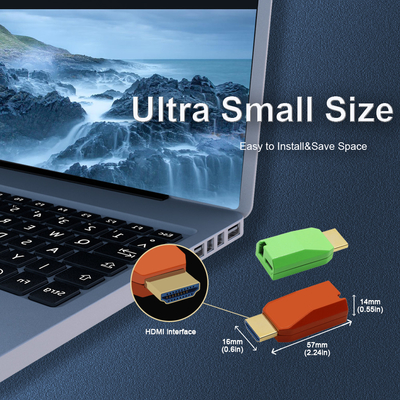

Gross Weight:	0.1 Kg / 0.22 Lb	Dimension:	2.24 X 0.6 X 0.55 In
Signal Support:	HDMI 1.4 HDMI Format Standard	Operating Temperature:	-20°C To + 70°C

HDMI Over Fiber Optic Extender's Product Description:

The LNK-108M is a mini 4K/30Hz HDMI over Single-Core MM fiber extender that is pluggable directly into your device. This HDMI Over Fiber Optic Extender Extends your 4K video source over fiber up to 500m (with OM5 fiber) to your desired display with this incredibly compact set. This HDMI Over Fiber Optic Extender also promotes secure data with negligible RFI/EMI emissions or loss of video quality due to no copper conductor present.

This HDMI Over Fiber Optic Extender is enclosed HDMI optical modules designed to support transmission of an uncompressed lossless HDMI 1.4 signal over OM5 multimode optical fiber at 850nm, up to distances of 500m, at a resolution of 4Kx2K. This HDMI Over Fiber Optic Extender converts an HDMI signal to a single 10Gb/s serial data stream for transmission over single optical fibers. This HDMI Over Fiber Optic Extender converts the serial data back to an HDMI signal.

Micro Pluggable 4K/30Hz HDMI over Single-Core Multimode Fiber Extender 0

HDMI Over Fiber Optic Extender's Features:

► Supports HDMI Video up to 4K/30Hz

► No Settings or Adjustments Necessary

► Adopt WDM technology to realize high-definition audio and video transmission through a single OM3 multi-mode optical fiber

► Supports up to 300m distance with OM3, 400m with OM4, 500m with OM5 fiber

► Standard HDMI1.4 Connector

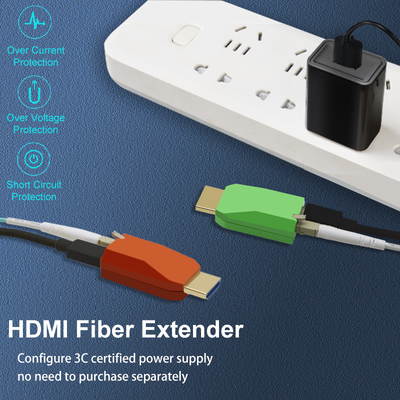

► Integrated USB Connector for Power

► Low power consumption, only the RX module (Display side) needs external power supply

► Hot-Pluggable

► The TMDS signal is transmitted through a multimode optical fiber, which has good anti-interference performance

► Uses Small, Reliable LC Optical Connector

HDMI Over Fiber Optic Extender's Technical Parameters:

Video Support	4K@30Hz/1080p/1080i/720p
Audio Support	Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)
Website Specifications	Color space 444, 420, 400
Fiber Connector	1 x LC Connector
Transmission Rate	10.2Gbps(3.4Gbps/CH)
Transmission Distance	300m with OM3 fiber, 400m with OM4 fiber, 500m with OM5 fiber
Storage Temperature	-40°C to + 85°C
Humidity	to 90% RH (non-condensing)
Safety Approvals	CE, RoHS, FCC

HDMI Over Fiber Optic Extender's Application:

Micro Pluggable 4K/30Hz HDMI over Single-Core Multimode Fiber Extender 1

HDMI Over Fiber Optic Extender‘s Support and Services:

HDMI Over Fiber Optic Extender technical support and services include:

24/7 online technical support
Free installation services
Onsite technical support
Regular system updates and upgrades
Training and education

HDMI Over Fiber Optic Extender's Packing and Shipping:

HDMI Over Fiber Optic Extender is packaged for shipping in a strong, corrugated box designed to ensure safe transport and handling. The interior is filled with protective foam inserts to help cushion the product against shock and vibration, while the exterior of the box is clearly labeled with product and shipping information.
