Mini 4K/60Hz HDMI 2.0 KVM USB to Fiber Optic Extender

Large Image : Mini 4K/60Hz HDMI 2.0 KVM USB to Fiber Optic Extender

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-109KVM

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	HDMI Over Fiber Optic Extender Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Product Name:	HDMI Over Fiber Optic Extender	Power Supply:	DC 5V
Gross Weight:	0.25KG	Dimension:	93 X 70 X 28(mm)
Connector:	Female HDMI Type A	Operating Temperature:	0℃ ~ +55℃

HDMI Over Fiber Optic Extender's Product Description:

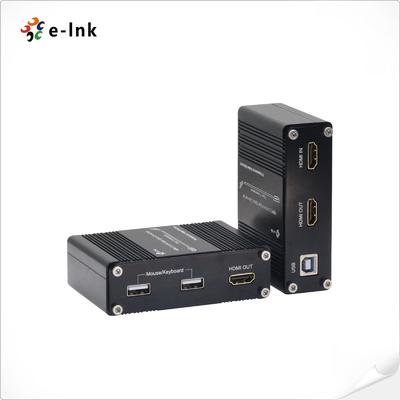

This HDMI Over Fiber Optic Extender consists of a Transmitter and a Receiver unit which allow you to extend HDMI 2.0 and USB HID signals up to 300 meters (984 feet) over LC OM4 MM Fiber Optic Cabling. This HDMI Over Fiber Optic Extender delivers up to 4K 60Hz UHD picture quality to your remote display with support for 4:4:4 chroma sampling.

The Transmitter uses a distribution chip to make one HDMI input become two outputs, one output uses Wavelength-division multiplexing technology to convert four high-speed differential signals into optical fiber output through the photoelectric conversion engine, and the other output is local output. The Receiver restores the signal input from the optical fiber to HDMI output.

Mini 4K/60Hz HDMI 2.0 KVM USB to Fiber Optic Extender 0

HDMI Over Fiber Optic Extender's Features:

► Transmits 4K HDMI2.0 video signals up to 300 meters over OM4 MMF

► Support keyboard and mouse signal transmission

► Uncompressed HDMI 2.0 video transmission up to 4K@60Hz 4:4:4

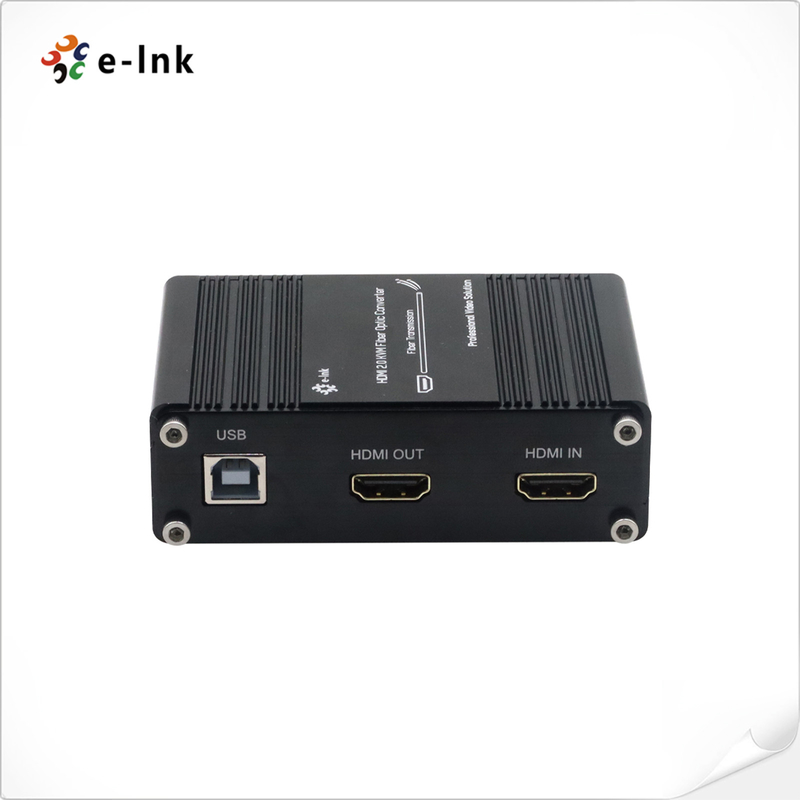

► Transmitter support local loop output

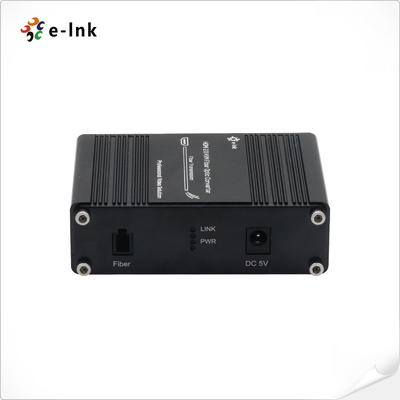

► Local module connectors: HDMI input, USB input (type B-female) for keyboard / mouse, fiber optic connector (LC-female), and 5 VDC power connector (DC-jack-female)

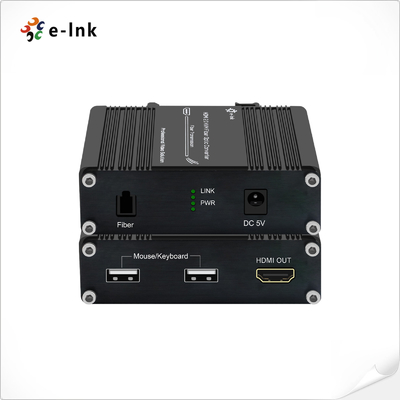

► Remote module connectors: HDMI output for remote display, 2 USB outputs (keyboard / mouse), fiber optic connector (LC-female), and 5 VDC power connector (DC-jack-female)

► Simple to install, plug and play

HDMI Over Fiber Optic Extender's Technical Parameters:

Video	Standards	HDMI 2.0 and HDCP 2.2
	Maximum pixel clock	600MHz
	Data speed	18Gbps(6 Gbps/CH)
	Resolution range	4K@60Hz/4K@30Hz/1080p/720p
	Impedance	100Ω
K/M	Interface	PC: MINI-USB Keyboard And Mouse: USB-A
Optical fiber	Interface	LC connector
	Fiber type	OM4 Multimode
	Wavelength	850nm
	Interface bandwidth	18Gbps
	Transmission distance	OM4 Multimode fiber: 300M

HDMI Over Fiber Optic Extender's Application:

Mini 4K/60Hz HDMI 2.0 KVM USB to Fiber Optic Extender 1

HDMI Over Fiber Optic Extender‘s Support and Services:

HDMI Over Fiber Optic Extender technical support and services include:

24/7 online technical support
Free installation services
Onsite technical support
Regular system updates and upgrades
Training and education

HDMI Over Fiber Optic Extender's Packing and Shipping:

HDMI Over Fiber Optic Extender is packaged for shipping in a strong, corrugated box designed to ensure safe transport and handling. The interior is filled with protective foam inserts to help cushion the product against shock and vibration, while the exterior of the box is clearly labeled with product and shipping information.
