Micro 4K HDMI Fiber Extender with RS232 & External Audio

Name: Micro 4K HDMI Fiber Extender with RS232 & External Audio
Brand: E-link
SKU: LNK-MHRA4K
Rating: 4.8 (182 reviews)

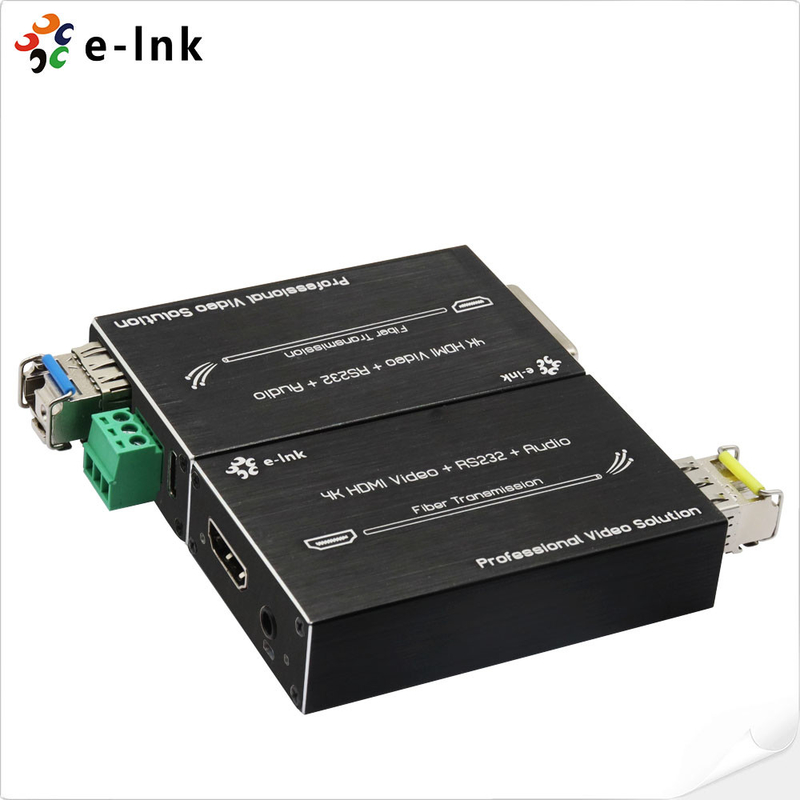

Large Image : Micro 4K HDMI Fiber Extender with RS232 & External Audio

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-MHRA4K

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation

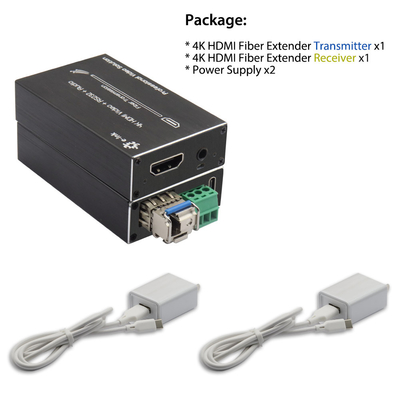

Packaging Details:	HDMI Over Fiber Optic Extender Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Product Name:	HDMI Over Fiber Optic Extender	Power Supply:	5V DC, USB Typ-C
Weight:	60g / 0.13 Lb	Dimension:	2.87 X 1.73 X 0.69in (73x44x17mm)
Warranty:	5 Years	Storage Temperature:	-20 To + 80°C

HDMI Over Fiber Optic Extender's Product Description:

The LNK-MHRA4K Series 4K HDMI Fiber Extender are designed to support transmission of an uncompressed lossless HDMI 1.4a signal, RS232 signal and stereo audio over optical fiber up to distances of 80km, at a resolution of maximum 4K*2K@60Hz, YUV 4:2:0.

The Transmitter converts an HDMI signal to a single 10Gb/s serial data stream for transmission over optical fiber. The Receiver converts the serial data back to an HDMI signal. This HDMI Over Fiber Optic Extender is RoHS compliant and lead-free per requirements in Europe and China. This HDMI Over Fiber Optic Extenderis ideal for large-screen display, conferencing systems and home entertainment and so on. The device has the ability of anti-interference, to ensure the stability of the signal.

Micro 4K HDMI Fiber Extender with RS232 & External Audio 0

HDMI Over Fiber Optic Extender's Features:

► HDMI 1.4a and HDCP1.2 Support

► Uncompressed transmission, No delay, No losses

► DDC HPDT Signal Support

► Data rate up to 10.2Gbps

► Transmission distance up to 80km over fiber cable

► Supports All Modes up to maximum 4K*2K@60Hz, YUV 4:2:0

► Support external stereo audio

► Support Serial RS232 Signal

► Hot-Pluggable, EMI/RFI Resistant

► Miniature form factor for ease of use and installation

► Operating Case Temperature: -10~50°C

HDMI Over Fiber Optic Extender's Technical Parameters:

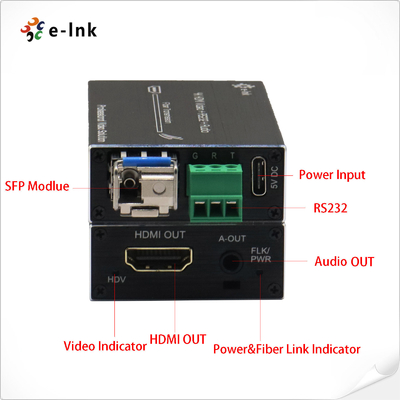

Audio Interface	3.5MM external stereo audio
RS232	3 Pin terminal, Baud rate ≤ 38400
Fiber Connector	SFP/LC
Bandwidth	10.2Gbps
Transmission Distance	300m (Over OM3 Fiber)
	Up to 80km (Over Single-mode Fiber)
Operating Temperature	-10 to + 50°C
Storage Temperature	-20 to + 80°C
Humidity	5% to 90% RH (non-condensing)
MTBF	100,000 hours

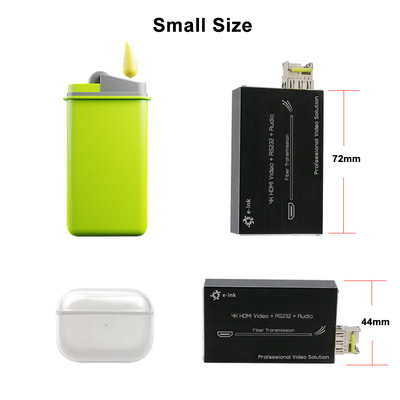

Dimension (WxDxH)	2.87 x 1.73 x 0.69in (73x44x17mm)
Weight	60g / 0.13 lb

HDMI Over Fiber Optic Extender's Application:

Micro 4K HDMI Fiber Extender with RS232 & External Audio 1

HDMI Over Fiber Optic Extender‘s Support and Services:

Industrial Ethernet PoE Switch technical support and services include:

24/7 online technical support
Free installation services
Onsite technical support
Regular system updates and upgrades
Training and education

HDMI Over Fiber Optic Extender's Packing and Shipping:

Industrial Ethernet PoE Switch is packaged for shipping in a strong, corrugated box designed to ensure safe transport and handling. The interior is filled with protective foam inserts to help cushion the product against shock and vibration, while the exterior of the box is clearly labeled with product and shipping information.

HDMI Over Fiber Optic Extender's Ordering Information:

Model	Description
LNK-MHRA4K-MM	Mini HDMI Fiber Extender: 1Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio + Backwards RS232, OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, 5V DC Type-C Power Input
LNK-MHRA4K-S20	Mini HDMI Fiber Extender: 1Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio + Backwards RS232, Single-mode Fiber, 20km, LC, including 1 transmitter & 1 receiver, 5V DC Type-C Power Input
LNK-MHRA4K-S40	Mini HDMI Fiber Extender: 1Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio + Backwards RS232, Single-mode Fiber, 40km, LC, including 1 transmitter & 1 receiver, 5V DC Type-C Power Input
LNK-MHRA4K-S80	Mini HDMI Fiber Extender: 1Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio + Backwards RS232, Single-mode Fiber, 80km, LC, including 1 transmitter & 1 receiver, 5V DC Type-C Power Input
