Product Details:
Payment & Shipping Terms:
|

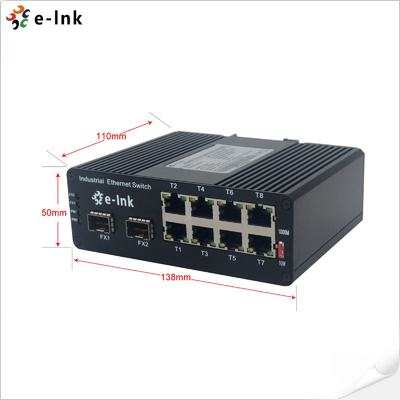

| Product Name: | Industrial Ethernet POE Switch | Dimensions: | 139mm×109mm×50mm |
|---|---|---|---|
| Voltage Range: | DC48V~57V | Optical Port: | FX1, FX2 |
| Warranty: | 5 Years | Storage Temperature: | -40°C To 85°C (-40°F To 185°F) |

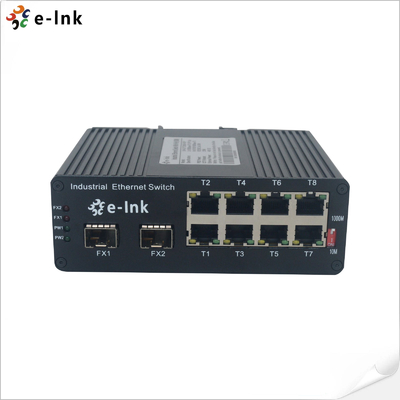

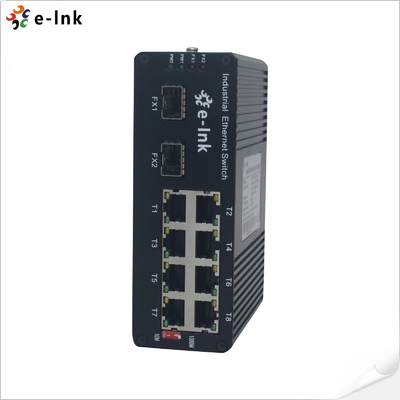

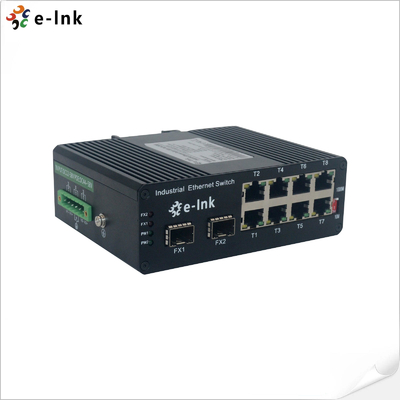

LNK-GYT208GP-SFP Series is 250m Industrial PoE Switch with 8 ports 10/100/1000Base-TX and 2 port 1000Base-SFP. This Industrial Ethernet PoE Switch provides 8 ports PoE+ function for kinds of Powered Devices to receive power as well as data over the RJ-45 cable. The 1000Base-SFP supports 1 or 2 core Single-mode or Multi-mode fiber. This Industrial Ethernet PoE Switch fully combines the characteristics of security surveillance, provides fast packet forwarding ability and abundant backplane bandwidth, which ensures clear image and fluent transmission. Inserted static, surge protection circuit can improve product stability.
► Transmission distance 250m, it can be flexible installation for wireless AP and surveillance project
► It will give the speed of 10Mbps at 250meter when connect IP cameras
► 8 10/100/1000Base-TX + 2 1000Base-FX
► 10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Supports IEEE 802.3at PoE+ (30W per port)
► Supports 802.3x Flow control
► 9K Bytes Jumbo Frame
► Redundant Power Inputs
► Supports Wall-mount and DIN-Rail installation
► -40°C to 80°C (-40°F to 176°F) operating temperature
| Power | Power Supply | Industrial Power Adaptor |
| Voltage range | DC48V~57V | |
| Consumption | ＜5W , PoE output < 240W | |
| Ethernet | Ethernet Port |
1～8 ports: default mode: 10/100/1000BASE-TX; CCTV mode:10BASE-T; SFP:1000BASE-X |
| Transmission Distance |
Downlink port: default mode: 0～100m; CCTV mode - Cat6: 220m, Cat7: 250m SFP: depends on SFP module performance |
|
| Cable | Cat6/7 network cable | |
| PoE Protocol | IEEE802.3af/at protocol | |
| PoE Power Supply | End-span | |
|
Ethernet Exchange Specification |
Ethernet Standard |
IEEE802.3 10BASE-T; IEEE802.3u 100BASE-TX; IEEE802.3ab 1000BASE-TX; IEEE802.3z 1000-SX/LX; IEEE802.3 X |
| Packet Buffer | 2.75M | |
| MAC Address | 4K | |
| Optical Port | FX1, FX2 |
Industrial Ethernet PoE Switch technical support and services include:
| Model | Description |
| LNK-GYT208GP-SFP | 8-Port 10/100/1000Base-T PoE(up to 250m) + 2-Port 1000Base-X SFP Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed, Wall Mount Bracket is included. |
| Power Options | ►240W/5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
