Industrial 4-port 10/100/1000BASE-T plus 2-port 1000BASE-SFP 250m PoE Switch

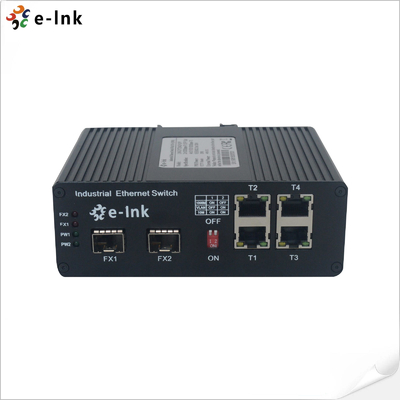

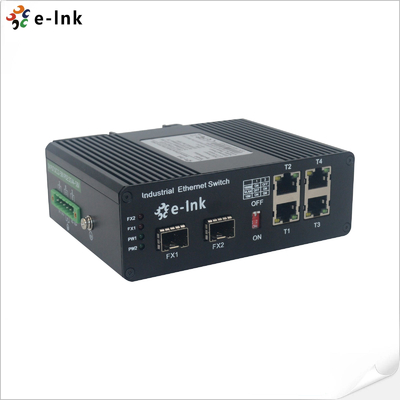

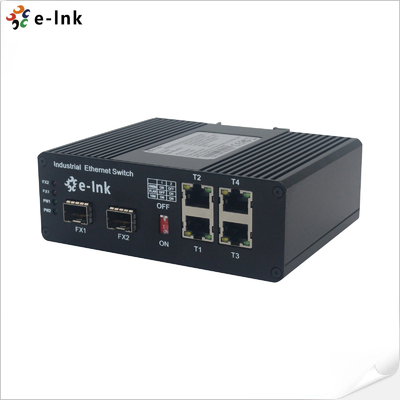

Large Image : Industrial 4-port 10/100/1000BASE-T plus 2-port 1000BASE-SFP 250m PoE Switch

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-GYT204GP-SFP

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	Industrial Ethernet POE Switch Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Product Name:	Industrial Ethernet POE Switch	Dimensions:	139mm×109mm×50mm
Operating Temperature:	-40℃~75℃	Ethernet Port:	10/100/1000BASE-TX
Warranty:	5 Years	Storage Temperature:	-40°C To 85°C (-40°F To 185°F)

Industrial Ethernet PoE Switch's Product Description:

LNK-GYT204GP-SFP Series is 250m Industrial PoE Switch with 4 ports 10/100/1000Base-TX and 2 port 1000Base-SFP. This Industrial Ethernet PoE Switch provides 4 port PoE+ function for kinds of Powered Devices to receive power as well as data over the RJ-45 cable. This Industrial Ethernet PoE Switch supports 1 or 2 core Single-mode or Multi-mode fiber. This Industrial Ethernet PoE Switch fully combines the characteristics of security surveillance, provides fast packet forwarding ability and abundant backplane bandwidth, which ensures clear image and fluent transmission. Inserted static, surge protection circuit can improve product stability. This Industrial Ethernet PoE Switch supports one key VLAN mode, can achieve VLAN, QoS priority after configuration, control the Net storm, protect the information security, prevent the viral transmission and Ethernet attack, fully satisfy the Ethernet video security surveillance system and Ethernet project needs. Industrial 4-port 10/100/1000BASE-T plus 2-port 1000BASE-SFP 250m PoE Switch 0

Industrial Ethernet PoE Switch's Features:

► Transmission distance 250m, it can be flexible installation for wireless AP and surveillance project

► It will give the speed of 10Mbps at 250meter when connect IP cameras

► 4 10/100/1000Base-TX + 2 1000Base-FX

► 10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

► Supports IEEE 802.3at PoE+ (30W per port)

► Supports 802.3x Flow control

► 9K Bytes Jumbo Frame

► Redundant Power Inputs

► Supports Wall-mount and DIN-Rail installation

► -40°C to 80°C (-40°F to 176°F) operating temperature

Industrial Ethernet PoE Switch's Technical Parameters:

Power	Power Supply	Industrial Power Adaptor
	Voltage range	DC48V~57V
	Consumption	＜5W , PoE output < 120W
Ethernet	Ethernet Port	1～4 ports: default mode: 10/100/1000BASE-TX; CCTV mode:10BASE-T; SFP:1000BASE-X
	Transmission Distance	Downlink port: default mode: 0～100m; CCTV mode - Cat6: 220m, Cat7: 250m SFP: depends on SFP module performance
	Cable	Cat6/7 network cable
	PoE Protocol	IEEE802.3af/at protocol
	PoE Power Supply	End-span
	Packet Buffer	2.75M
	MAC Address	4K
	Optical Port	FX1, FX2
	Ethernet Port	1～4 ports : green light indicates network status, yellow light indicates PoE status

Industrial Ethernet PoE Switch's Applications:

Industrial 4-port 10/100/1000BASE-T plus 2-port 1000BASE-SFP 250m PoE Switch 1

Industrial Ethernet PoE Switch's Support and Services:

Industrial Ethernet PoE Switch technical support and services include:

24/7 online technical support
Free installation services
Onsite technical support
Regular system updates and upgrades
Training and education

Industrial Ethernet PoE Switch's Packing and Shipping:

Industrial Ethernet PoE Switch is packaged for shipping in a strong, corrugated box designed to ensure safe transport and handling. The interior is filled with protective foam inserts to help cushion the product against shock and vibration, while the exterior of the box is clearly labeled with product and shipping information.

Industrial Ethernet PoE Switch's Ordering Information:

Model	Description
LNK-GYT204GP-SFP	4-Port 10/100/1000Base-T PoE(up to 250m) + 2-Port 1000Base-X SFP Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed, Wall Mount Bracket is included.
Power Options	►120W/2.5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
	► Power Supply is to be purchased separately.
