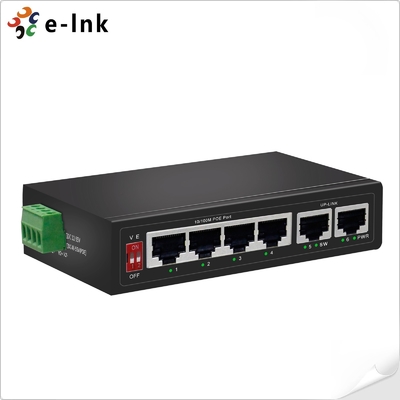

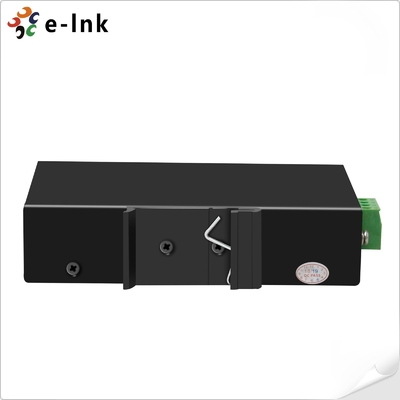

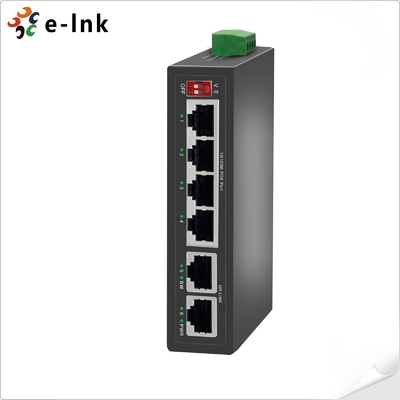

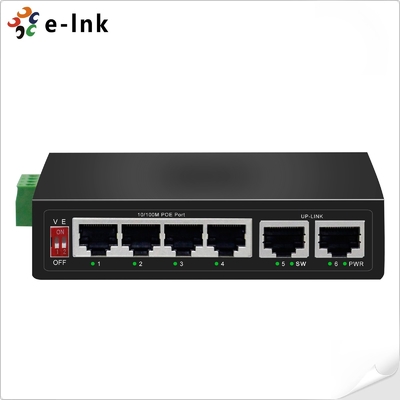

4-port 10/100BASE-T PoE and 2-port 100BASE-T Uplink Industrial 250m PoE Switch

Large Image : 4-port 10/100BASE-T PoE and 2-port 100BASE-T Uplink Industrial 250m PoE Switch

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-GYT420P

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	Industrial Ethernet POE Switch Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Product Name:	Industrial Ethernet POE Switch	Dimensions:	198728 Mm
Operating Temperature:	: -40°C ~ +85°C	Interface:	4 X 10/100M Copper RJ-45 Ports, 2 X 100M RJ45 Uplink Port
Warranty:	5 Years	Storage Temperature:	-40°C To 85°C (-40°F To 185°F)

Industrial Ethernet PoE Switch's Product Description:

LNK-GYT420P Series is 250m Industrial PoE Switch with 4 ports 10/100Base-TX and 2 port 100M Ethernet uplink. This Industrial Ethernet PoE Switch provides 4 port PoE+ function for kinds of Powered Devices to receive power as well as data over the RJ-45 cable. This Industrial Ethernet PoE Switch fully combines the characteristics of security surveillance, provides fast packet forwarding ability and abundant backplane bandwidth, which ensures clear image and fluent transmission. Inserted static, surge protection circuit can improve product stability. This Industrial Ethernet PoE Switchsupports one key VLAN mode, can achieve VLAN, QoS priority after configuration, control the Net storm, protect the information security, prevent the viral transmission and Ethernet attack, fully satisfy the Ethernet video security surveillance system and Ethernet project needs. 4-port 10/100BASE-T PoE and 2-port 100BASE-T Uplink Industrial 250m PoE Switch 0

Industrial Ethernet PoE Switch's Features:

Transmission distance 250m, it can be flexible installation for wireless AP and surveillance project

· It will give the speed of 10Mbps at 250meter when connect IP cameras

· 4*10/100Base-TX POE port and 2 uplink 100M Ethernet slot

· 10/100Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

· Compatible with both IEEE802.3at(30W) and IEEE802.3af (15.4W)

· Supports 802.3x Flow control

· Port Lightning Protection: General Mode 6KV

· Redundant Power Inputs

· Supports Wall-mount and DIN-Rail installation

· -40°C to 80°C (-40°F to 176°F) operating temperature

Industrial Ethernet PoE Switch's Technical Parameters:

Interface	4 x 10/100M copper RJ-45 ports, 2 x 100M RJ45 uplink port
Network Protocols	IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3x flow control and back pressure IEEE802.1d Spanning Tree Protocol
PoE Specification	PoE Standard: Supports both IEEE802.3af and IEEE802.3at
	Single PoE Port Power Output: Max. 15.4 watts (IEEE 802.3af) Max. 30 watts (IEEE 802.3at)
	PoE port Auto detect AF/AT devices
	PoE Port Output Voltage: DC48V
	Power Pin Assignment:1/2+;3/6-
Network Media	10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter)
Performance Specification	Bandwidth: 1.2Gbps Packet Buffer Memory:1M Packet Forwarding Rate:1488000pps/port Address Table: 2K
Forwarding Mode	Store-And-Forward

Industrial Ethernet PoE Switch's Applications:

4-port 10/100BASE-T PoE and 2-port 100BASE-T Uplink Industrial 250m PoE Switch 1

Industrial Ethernet PoE Switch's Support and Services:

Industrial Ethernet PoE Switch technical support and services include:

24/7 online technical support
Free installation services
Onsite technical support
Regular system updates and upgrades
Training and education

Industrial Ethernet PoE Switch's Packing and Shipping:

Industrial Ethernet PoE Switch is packaged for shipping in a strong, corrugated box designed to ensure safe transport and handling. The interior is filled with protective foam inserts to help cushion the product against shock and vibration, while the exterior of the box is clearly labeled with product and shipping information.

Industrial Ethernet PoE Switch's Ordering Information:

Model	Description
LNK-GYT420P	4-Port 10/100Base-T PoE(up to 250m) + 2-Port 100Base-T Ethernet Switch
Mounting Options	► Default DIN-Rail Bracket installed
Power Options	►120W/2.5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
	► Power Supply is to be purchased separately.
