Unmanaged Industrial 4-port 10/100/1000T UPoE (60W high Power) plus 2-port 1000X SFP Ethernet Switch

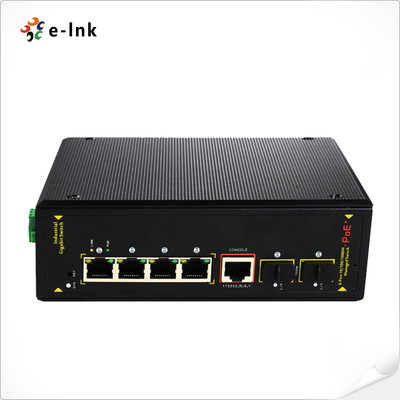

Large Image : Unmanaged Industrial 4-port 10/100/1000T UPoE (60W high Power) plus 2-port 1000X SFP Ethernet Switch

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-GYH204GP-SFP

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	Industrial Ethernet POE Switch Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Product Name:	Industrial Ethernet POE Switch	Dimensions:	165 X 148 X 54mm (WxDxH)
Operating Temperature:	: -40°C ~ +85°C	PoE Ports:	4 Ports Support PoE (Port 1-4 Support UPoE Power Output: 60W. Total Power Is 240W)
Warranty:	5 Years	Storage Temperature:	-40°C To 85°C (-40°F To 185°F)

Industrial Ethernet PoE Switch's Product Description:

LNK-GYH204GP-SFP is 4-Port 10/100/1000T PoE (Port 1-4 support UPoE Power Output: 60W) + 1-Port 10/100/1000T + 2-Port 1000X SFP Switch. Port 1-4 can support IEEE 802.3af/at standard POE, single port POE power is 60W, and the maximum POE output power less than 250W. As a PoE power supply device, this Industrial Ethernet PoE Switch can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable.This Industrial Ethernet PoE Switch can supply power to PoE terminal equipment such as wireless AP, IP camera, industrial sensor through network cable, and meet the network environment that needs high-density PoE power supply. This Industrial Ethernet PoE Switch is suitable for intelligent transportation, rail transit, electric power, mining, metallurgy and green energy. Unmanaged Industrial 4-port 10/100/1000T UPoE (60W high Power) plus 2-port 1000X SFP Ethernet Switch 0

Industrial Ethernet PoE Switch's Features:

Support 24pcs RJ45 fast Ethernet ports and 2pcs fiber ports (SC, ST or SFP Optional)
Support IEEE802.3/802.3u/802.3x/IEEE802.3af/IEEE802.3at
Support broadcast storm shield
DC110～220V or AC100～240V 3 bits terminal block power input
No fan, low consumption,EMC-4 grade design
IP30 protection, metal shell
Over voltage protection
All port anti-lighting (6KV)

Industrial Ethernet PoE Switch's Technical Parameters:

Product Name	4-Port 10/100/1000T UPoE + 1-Port 10/100/1000T Console + 2-Port 1000X SFP Managed Switch (Port 1-4 support 60W PoE++)
Product Model	LNK-GYH204GP-SFP
Connector Type	4x10/100/1000Base-T PoE ports + 2x Gigabit SFP slots + 1 x 10/100/1000Base-T port
Network Media	10BASE-T: Cat3/ 4/ 5 UTP (≤100m) 100BASE-TX: Cat5 or more UTP (≤100m) 1000BASE-TX: Cat5 or more UTP (≤100m)
Bandwidth	128Gbps (non-blocking)
Packet forwarding rate	8.93Mbps@64byts
MAC Address Table	8K
MTBF	539608 hours
Forwarding Mode	Store-and-Forward
Buffer Memory	4M
Network Protocol	IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3x Flow Control IEEE802.3ab IEEE802.3z IEEE 802.3af /at

Industrial Ethernet PoE Switch's Applications:

Unmanaged Industrial 4-port 10/100/1000T UPoE (60W high Power) plus 2-port 1000X SFP Ethernet Switch 1

Industrial Ethernet PoE Switch's Support and Services:

Industrial Ethernet PoE Switch technical support and services include:

24/7 online technical support
Free installation services
Onsite technical support
Regular system updates and upgrades
Training and education

Industrial Ethernet PoE Switch's Packing and Shipping:

Industrial Ethernet PoE Switch is packaged for shipping in a strong, corrugated box designed to ensure safe transport and handling. The interior is filled with protective foam inserts to help cushion the product against shock and vibration, while the exterior of the box is clearly labeled with product and shipping information.

Industrial Ethernet PoE Switch's Ordering Information:

Model	Description
LNK-GYH204GP-SFP	Unmanaged 4-Port 10/100/1000T UPoE + 1-Port 10/100/1000T + 2-Port 1000X SFP Switch, Port 1-4 support PoE Power Output: 60W
SFP Options	► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
	► SFP module is to be purchased separately.

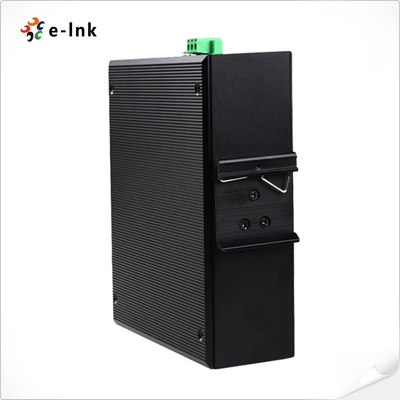

Mounting Options	► Default DIN-Rail Bracket installed, Wall Mount Bracket is included.
Power Options	►240W/5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
	► Power Supply is to be purchased separately.
