10/100/1000Mbps PoE-PSE Fiber to Copper Ethernet Switch 2 SFP + 24 PoE

Name: 10/100/1000Mbps PoE-PSE Fiber to Copper Ethernet Switch 2 SFP + 24 PoE
Brand: E-link
SKU: LNK-2024GP-SFP
Rating: 4.8 (125 reviews)

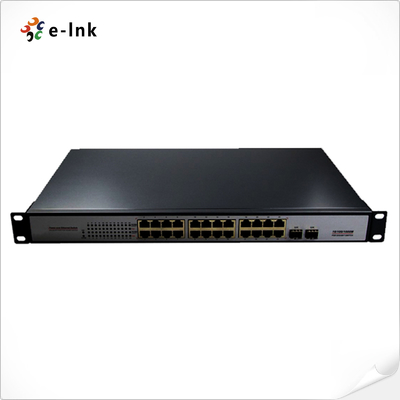

Large Image : 10/100/1000Mbps PoE-PSE Fiber to Copper Ethernet Switch 2 SFP + 24 PoE

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-2024GP-SFP

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	Industrial Ethernet POE Switch Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Product Name:	Industrial Ethernet POE Switch	Dimensions:	440 X 275 X 44.5mm
RJ45 Ports:	10/100/1000M Auto Connection, Full/Half Duplex Or Force Work Mode, And Support MDI/MDI-X Connection	Fiber Ports:	1000Base-FX Ports (SC/ST Optional)
Input Power:	110~220VDC（100~300VDC）Or100~240VAC（85~264VAC）	Storage Temperature:	-40°C To 85°C (-40°F To 185°F)

Industrial Ethernet PoE Switch's Product Description:

LNK-2024GP-SFP is a type of plug-and-play unmanaged POE Ethernet switch, which supports 24 10/100/1000Base-T(x) + 2 1000Base-FX interfaces. With PoE, installation of network devices such as IP surveillance cameras, wireless access points, IP phones, and other PoE enabled devices in hard-to-reach, outdoor, and remote areas is simplified. No fan, low consumption and industrial grade design. More steadily work capability. To satisfy applications in different industrial environments, it can also provide wide temperature type in accommodation with limit temperature ( up to -40 ~ 75°C) . 10/100/1000Mbps PoE-PSE Fiber to Copper Ethernet Switch 2 SFP + 24 PoE 0

Industrial Ethernet PoE Switch's Features:

Support 24pcs RJ45 fast Ethernet ports and 2pcs fiber ports (SC, ST or SFP Optional)
Support IEEE802.3/802.3u/802.3x/IEEE802.3af/IEEE802.3at
Support broadcast storm shield
DC110～220V or AC100～240V 3 bits terminal block power input
No fan, low consumption,EMC-4 grade design
IP30 protection, metal shell
Over voltage protection
All port anti-lighting (6KV)

Industrial Ethernet PoE Switch's Technical Parameters:

Standard	IEEE802.3, IEEE802.3u, IEEE802.3x
Flow control	IEEE802.3x
MAC address	8K
Console port	RS232, RJ45
LED indicator	PWR, SYS, Link/ACT
PoE Standard	IEEE802.3at (25.5W for each POE port)
PoE Max power	600W
Input current	0.25A(@110VAC/VDC)
Connector	3 bits terminal block
Operating Temperature	-20~60℃ (wide temperature optional)

Industrial Ethernet PoE Switch's Applications:

10/100/1000Mbps PoE-PSE Fiber to Copper Ethernet Switch 2 SFP + 24 PoE 1

Industrial Ethernet PoE Switch's Support and Services:

Industrial Ethernet PoE Switch technical support and services include:

24/7 online technical support
Free installation services
Onsite technical support
Regular system updates and upgrades
Training and education

Industrial Ethernet PoE Switch's Packing and Shipping:

Industrial Ethernet PoE Switch is packaged for shipping in a strong, corrugated box designed to ensure safe transport and handling. The interior is filled with protective foam inserts to help cushion the product against shock and vibration, while the exterior of the box is clearly labeled with product and shipping information.

Industrial Ethernet PoE Switch's Ordering Information:

Model	Description
LNK-2024GPF-SFP	Unmanaged 24-Port PoE Switch: 24x 10/100/1000M Ethernet ports + 2x Gigabit TP/SFP combo ports, and 1-24 ports supports IEEE802.3af POE international standard, each port power is 15.4W, whole power is 400W
LNK-2024GPT-SFP	Unmanaged 24-Port PoE Switch: 24x 10/100/1000M Ethernet ports + 2x Gigabit TP/SFP combo ports, and 1-24 ports supports IEEE802.3at POE international standard, each port power is 25.5W, whole power is 650W
