Product Details:
Payment & Shipping Terms:
|
| Product Name: | Industrial Ethernet POE Switch | Dimensions: | 95 X 70 X 29 Mm |
|---|---|---|---|
| Port: | RJ45 | Connector: | 5 10/100/1000BASET RJ45 Auto-MDI/MDI-X Ports |
| Input Power: | 12~48VDC | Storage Temperature: | -40°C To 85°C (-40°F To 185°F) |

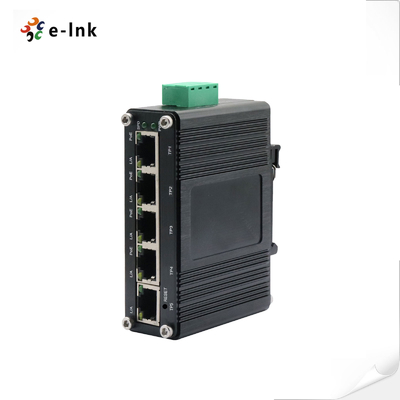

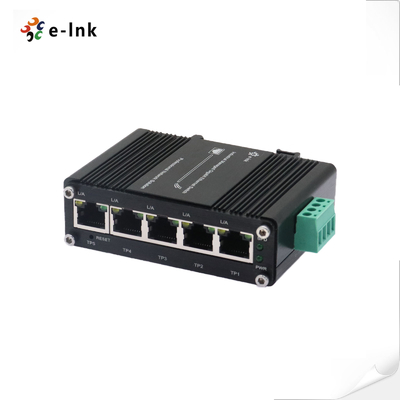

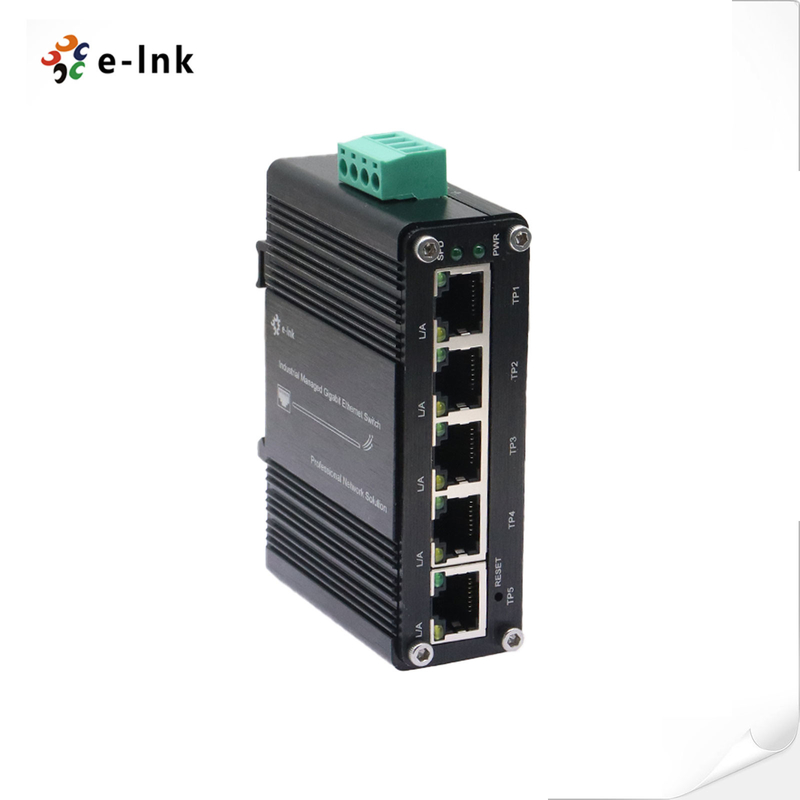

LNK-IMC005GM is a Mini Industrial Managed 5-Port 10/100/1000T Gigabit Ethernet Switch with 12~48V DC wide range power input. This Industrial Ethernet PoE Switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, this Industrial Ethernet PoE Switch could match a variety of harsh environment. This Industrial Ethernet PoE Switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. This Industrial Ethernet PoE Switch is a good choice for an economical solution for industrial Ethernet connections.
► 5-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function
► Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex
► 12~48V DC wide range power input
► Supports 802.3x Flow control
► Supports WEB Management
► Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)
► Supports DIN-Rail and Wall-mount installation
► Industry standard design, dustproof and close design IP40, rugged high-strength metal case
► -40°C to 80°C (-40°F to 176°F) operating temperature
| Standards: | IEEE 802.3 Ethernet |
| IEEE 802.3u Fast Ethernet | |
| IEEE 802.3ab Gigabit Ethernet | |
| IEEE 802.3x Full-Duplex Flow Control | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| IEEE 802.3af/at Optional | |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Packet Buffer: | 1Mbits |
| Packet Length: | 10Kbytes |
| MAC Address Table: | 8K |
| Switch Fabric: | 10Gbps/non-blocking |
| Exchange Property | Backplane bandwidth: 10Gbps; |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Power Consumption: | <6W |
Industrial Ethernet PoE Switch technical support and services include:
| Model | Description |
| LNK-IMC005GM | Mini Industrial Managed 5-Port 10/100/1000T Gigabit Ethernet Switch |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► Power Supply is to be purchased separately |
