Micro Industrial Managed 4-Port 10/100/1000BASE-T 802.3at PoE and 1-Port 10/100/1000T Ethernet Switch

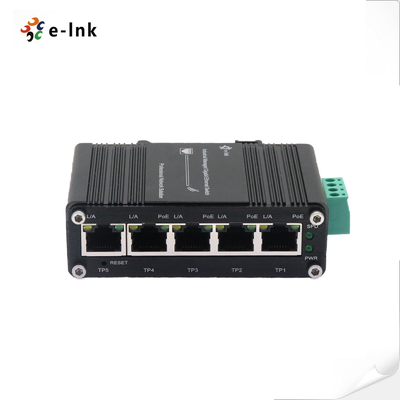

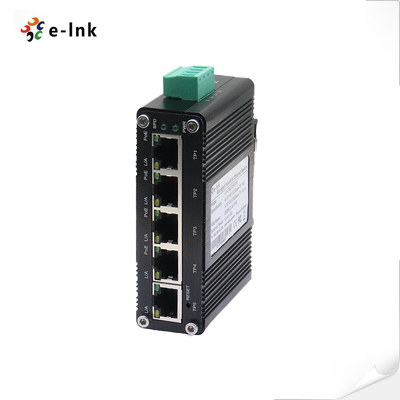

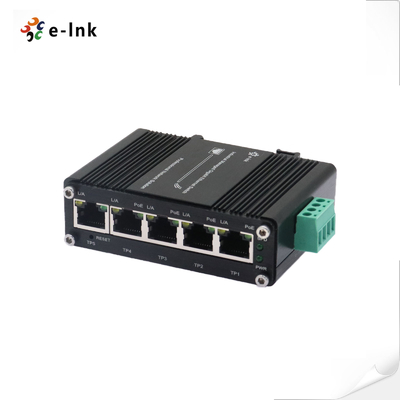

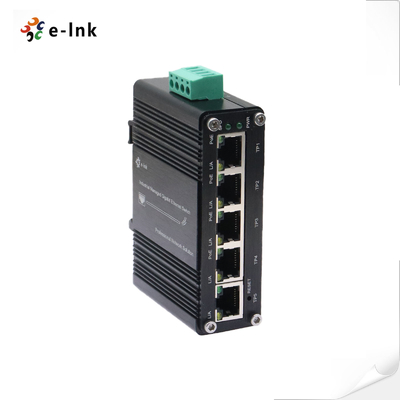

Large Image : Micro Industrial Managed 4-Port 10/100/1000BASE-T 802.3at PoE and 1-Port 10/100/1000T Ethernet Switch

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-IMC005GPM

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	Industrial Ethernet POE Switch Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Product Name:	Industrial Ethernet POE Switch	Dimensions:	95 X 70 X 29 Mm
Port:	RJ45	Connector:	5 10/100/1000BASET RJ45 Auto-MDI/MDI-X Ports 4 Ports With 802.3at PoE+ (Ports 1 To 4)
Input Power:	48~57VDC	Storage Temperature:	-40°C To 85°C (-40°F To 185°F)

Industrial Ethernet PoE Switch's Product Description:

LNK-IMC005GPM Series is a Mini Industrial Managed 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch with 12~48V DC wide range power input. This industrial Ethernet PoE Switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, this industrial Ethernet PoE Switch could match a variety of harsh environment. This industrial Ethernet PoE Switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications.This industrial Ethernet PoE Switch is a good choice for an economical solution for industrial Ethernet connections. Micro Industrial Managed 4-Port 10/100/1000BASE-T 802.3at PoE and 1-Port 10/100/1000T Ethernet Switch 0

Industrial Ethernet PoE Switch's Features:

► 5 x 10/100/1000BASE-T ports

► 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ (Port-1 to Port-4)

► 12~48V DC wide range power input

► Supports 802.3x Flow control

► Supports WEB Management

► Supports DIN-Rail and Wall-mount installation

► Up to 120-watt PoE budget (48V DC),

► Up to 90-watt PoE budget (24V DC),

► Up to 60-watt PoE budget (12V DC)

► -40°C to 80°C (-40°F to 176°F) operating temperature

Industrial Ethernet PoE Switch's Technical Parameters:

Standards:	IEEE 802.3 Ethernet
	IEEE 802.3u Fast Ethernet
	IEEE 802.3ab Gigabit Ethernet
	IEEE 802.3x Full-Duplex Flow Control
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE 802.3at Power over Ethernet Plus PSE
	IEEE 802.3af Power over Ethernet Plus
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer:	1Mbits
Packet Length:	10Kbytes
MAC Address Table:	8K
Switch Fabric:	10Gbps/non-blocking
Exchange Property	Backplane bandwidth: 20Gbps; Packet forwarding rate:14.88Mpps
Power Pin Assignment	1/2(+), 3/6(-) or 4/5(+), 7/8(-)
MTBF	> 200,000 hrs

Industrial Ethernet PoE Switch's Applications:

Micro Industrial Managed 4-Port 10/100/1000BASE-T 802.3at PoE and 1-Port 10/100/1000T Ethernet Switch 1

Industrial Ethernet PoE Switch's Support and Services:

Industrial Ethernet PoE Switch technical support and services include:

24/7 online technical support
Free installation services
Onsite technical support
Regular system updates and upgrades
Training and education

Industrial Ethernet PoE Switch's Packing and Shipping:

Industrial Ethernet PoE Switch is packaged for shipping in a strong, corrugated box designed to ensure safe transport and handling. The interior is filled with protective foam inserts to help cushion the product against shock and vibration, while the exterior of the box is clearly labeled with product and shipping information.

Industrial Ethernet PoE Switch's Ordering Information:

Model	Description
LNK-IMC005GPM	Mini Industrial Managed 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately ► Recommend MeanWell NDR-120-48
