Micro Industrial Managed 8-Port 10/100/1000T and 2-Port 100/1000X SFP Ethernet Switch

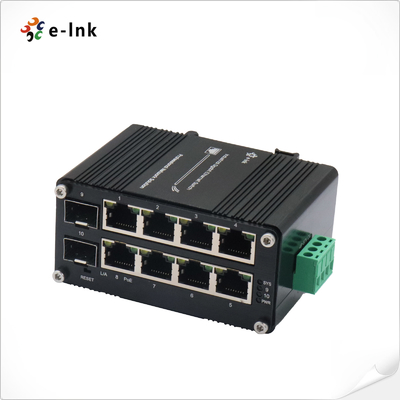

Large Image : Micro Industrial Managed 8-Port 10/100/1000T and 2-Port 100/1000X SFP Ethernet Switch

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-IMC208SG-SFP

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	Industrial Ethernet POE Switch Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Product Name:	Industrial Ethernet POE Switch	Dimensions:	95 X 88 X 46 Mm
Optical Port:	2 X 100/1000Base-X SFP	Connector:	8 X RJ45
Input Power:	12~48VDC	Storage Temperature:	-40°C To 85°C (-40°F To 185°F)

Industrial Ethernet PoE Switch's Product Description:

LNK-IMC208SG-SFP, managed industrial network switch, with 8 ports 10/100/1000Base-TX + 2 port 100/1000Base-X SFP. This Industrial Ethernet PoE Switch provides 8 port RJ45 Ethernet ports. The 2-port 100/1000Base-X SFP supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, this Industrial Ethernet PoE Switch is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations. Micro Industrial Managed 8-Port 10/100/1000T and 2-Port 100/1000X SFP Ethernet Switch 0

Industrial Ethernet PoE Switch's Features:

► 8x10/100/1000Base-TX + 2x100/1000Base-X SFP

► 10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

► Supports WEB Management

► Supports 802.3x Flow Control

► Support IEEE802.3/802.3u/802.3ab/802.3z/802.3x store and forward mode

► Support IEEE 802.3D/W/S standard STP protocol

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► Redundant Power Inputs

► Supports DIN-Rail installation

► -40°C to 80°C (-40°F to 176°F) operating temperature.

Industrial Ethernet PoE Switch's Technical Parameters:

Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX/FX
	IEEE802.3ab 1000BASE-T
	IEEE802.3z 1000BASE-X
	IEEE 802.3az Energy Efficient Ethernet (EEE)
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Backplane bandwidth	20Gbps
Packet Buffer Memory:	9216 bits
Processing Type:	Store-and-Forward
Max Packet Length:	9K Bytes Jumbo Frame
Address Table Size:	4K MAC Addresses
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Power Consumption:	5W Max.

Industrial Ethernet PoE Switch's Applications:

Micro Industrial Managed 8-Port 10/100/1000T and 2-Port 100/1000X SFP Ethernet Switch 1

Industrial Ethernet PoE Switch's Support and Services:

Industrial Ethernet PoE Switch technical support and services include:

24/7 online technical support
Free installation services
Onsite technical support
Regular system updates and upgrades
Training and education

Industrial Ethernet PoE Switch's Packing and Shipping:

Industrial Ethernet PoE Switch is packaged for shipping in a strong, corrugated box designed to ensure safe transport and handling. The interior is filled with protective foam inserts to help cushion the product against shock and vibration, while the exterior of the box is clearly labeled with product and shipping information.

Industrial Ethernet PoE Switch's Ordering Information:

Model	Description
LNK-IMC208SG-SFP	Mini Industrial Managed 8-Port 10/100/1000T + 2-Port 100/1000X SFP Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
	► Power Supply is to be purchased separately.
