E-link China Technology Co.,Ltd.
Professional Fiber Optical Communication and CCTV Security Transmission Product Manufacturer
|
Product Details:
Payment & Shipping Terms:
|
| Product Name: | Industrial Ethernet POE Switch | Dimensions: | 155 X 115 X 85 Mm |
|---|---|---|---|
| Optical Port: | 4 X 1000Base-X SFP | Connector: | 16 X RJ45 |
| Input Power: | 48~57VDC | Storage Temperature: | -40°C To 85°C (-40°F To 185°F) |

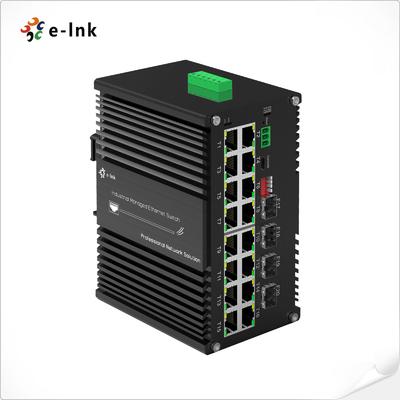

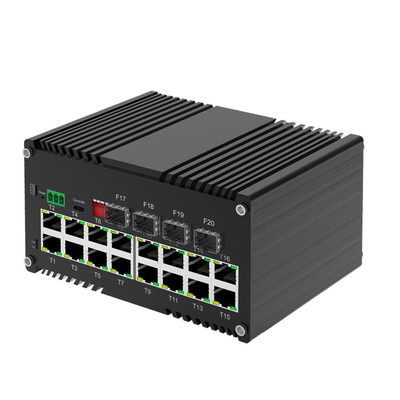

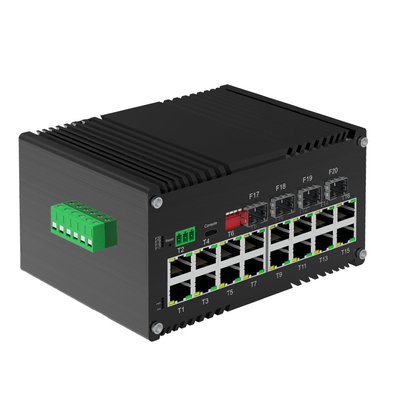

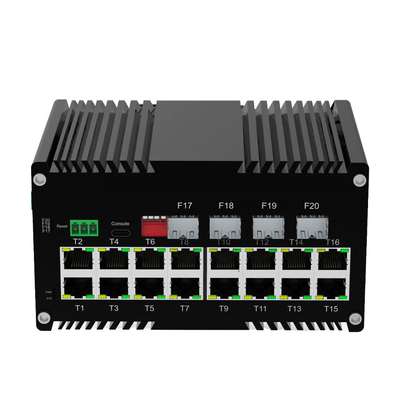

ETH-DIMC2416MP Series is the L2+ managed 16-port 10/100/1000Base-T 802.3at PoE + 4-port 1000Base-X SFP hardened Ethernet switch. This Industrial Ethernet Switch has 16 TP ports and 4 fiber ports. The TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; the 1000Base-X SFP port supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, this Industrial Ethernet Switch is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
► Support 16x10/100/1000Base-T + 4x1000Base-X SFP +
► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► IEEE802.3af/at compliant
► DIP Switch supports one-key VLAN, one-key Ring Management, PoE Reset and 250m PoE Network
► Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all
► 10K Bytes Jumbo Frame
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► IP40 Aluminum Case
► Supports DIN-Rail installation
► -40°C to 80°C (-40°F to 176°F) operating temperature
| Standards: | IEEE802.3 10BASE-T |
| IEEE802.3u 100BASE-TX/FX | |
| IEEE802.3ab 1000BASE-T | |
| IEEE802.3z 1000BASE-X | |
| IEEE802.3p QoS | |
| IEEE802.1d Spanning Tree | |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Packet Buffer Memory: | 12M bits |
| Processing Type: | Store-and-Forward |
| Backplane bandwidth | 110Gbps |
| Max Packet Length: | 10K Bytes Jumbo Frame |
| RS485: | 1 x RS485 (Optional) |
| Power Pin Assignment | 4/5(+), 7/8(-) |
| PoE Budget: | Up to 480-watt PoE budget |
| Relative Humidity: | 5% to 95% non-condensing |
Industrial Ethernet PoE Switch technical support and services include:
| Model | Description |
| ETH-DIMC2416MP | Industrial L2+ 16-Port 10/100/1000T 802.3at PoE + 4-Port 1000X SFP Managed Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed |
| Power Options | ► DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
