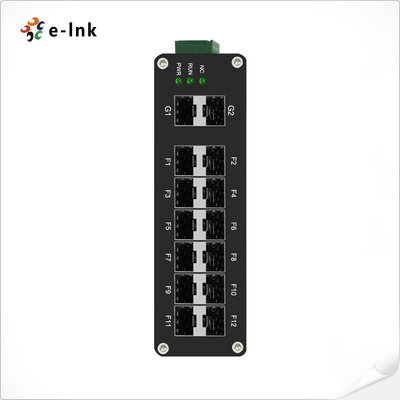

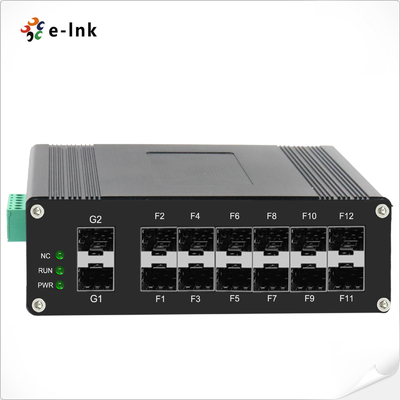

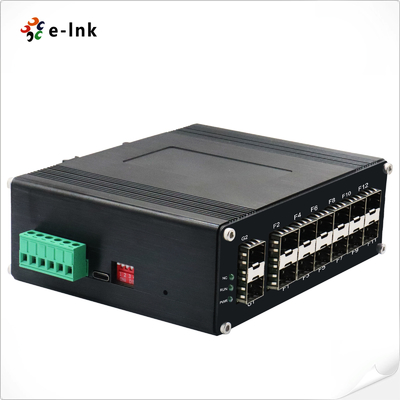

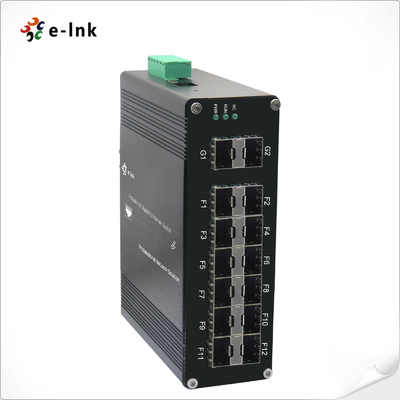

Industrial L2+ Managed 12-Port 1000X SFP plus 2-Port 1000X SFP Fiber Switch

Large Image : Industrial L2+ Managed 12-Port 1000X SFP plus 2-Port 1000X SFP Fiber Switch

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	ETH-DIMC2012FM

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	Fiber Optic Switch Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Product Name:	Fiber Optic Switch	Dimensions:	149 X 114 X 50 Mm
Optical Port:	14 X 1000Base-X SFP	USB-C:	1 X USB-C (for Management)
Input Power:	12~48VDC	Storage Temperature:	-40°C To 85°C (-40°F To 185°F)

Fiber Optic Switch's Product Description:

ETH-DIMC2012FM series is an Industrial 14 Port L2+ Managed Gigabit SFP Switch. This Fiber Optic Switch consists of a 12-Port 100/1000Base-X SFP fiber optic interface and 2 extra 1.25G SFP interfaces delivered in an IP40 case with redundant power system, able to operate under the temperature range from -40 to 80 Degree Celsius. This Fiber Optic Switch can be placed in nearly any environment. This Fiber Optic Switch provides advanced Layer 2 to Layer 4 data switching and redundancy, Quality of Service traffic control, network access control and authentication, as well as Secure Management features to protect customer’s industrial and automation network connectivity.

Industrial L2+ Managed 12-Port 1000X SFP plus 2-Port 1000X SFP Fiber Switch 0

Fiber Optic Switch's Features:

► Support 12x1000Base-X SFP + 2x1000Base-X SFP

► DIP Switch supports one-key VLAN, one-key Ring Management

► 10K Bytes Jumbo Frame

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► IP40 Aluminum Case

► Supports DIN-Rail installation

► -40°C to 80°C (-40°F to 176°F) operating temperature

Fiber Optic Switch's Technical Parameters:

Standards:	IEEE 802.3u 100BASE-TX/100BASE-FX
	IEEE 802.3ab Gigabit 1000T
	IEEE 802.3z Gigabit SX/LX
	IEEE 802.3x flow control and back pressure
	IEEE 802.3ad port trunk with LACP
	IEEE 802.1D Spanning Tree Protocol
	IEEE 802.1w Rapid Spanning Tree Protocol
	IEEE 802.1s Multiple Spanning Tree Protocol
	IEEE 802.1p Class of Service
	IEEE 802.1Q VLAN tagging
	IEEE 802.1X Port Authentication Network Control
	IEEE 802.3u 100BASE-TX/100BASE-FX
Forward & Filtering Rate:	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	12M bits
Processing Type:	Store-and-Forward
Backplane bandwidth	110Gbps
Max Packet Length:	10K Bytes Jumbo Frame
Address Table Size:	8K MAC Addresses
Power Consumption:	8W Max

Fiber Optic Switch's Applications:

Industrial L2+ Managed 12-Port 1000X SFP plus 2-Port 1000X SFP Fiber Switch 1

Fiber Optic Switch's Support and Services:

Fiber Optic Switch technical support and services include:

24/7 online technical support
Free installation services
Onsite technical support
Regular system updates and upgrades
Training and education

Fiber Optic Switch's Packing and Shipping:

Fiber Optic Switch is packaged for shipping in a strong, corrugated box designed to ensure safe transport and handling. The interior is filled with protective foam inserts to help cushion the product against shock and vibration, while the exterior of the box is clearly labeled with product and shipping information.

Fiber Optic Switch's Ordering Information:

Model	Description
ETH-DIMC2012FM	Industrial L2+ Managed 12-Port 1000X SFP + 2-Port 1000X SFP Fiber Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed
Power Options	► DIN-Rail Power Supply. Open Wire for Terminal Block.
	► Power Supply is to be purchased separately.
