E-link China Technology Co.,Ltd.
Professional Fiber Optical Communication and CCTV Security Transmission Product Manufacturer
|
Product Details:
Payment & Shipping Terms:
|
| Product Name: | Industrial Ethernet Media Converter | Storage Temperature: | -40°C To 85°C (-40°F To 185°F) |
|---|---|---|---|
| Optical Port: | 1 X 1000Base-X SC | Dimensions: | 95 X 70 X 30 Mm |
| Input Power: | 48~57VDC | Connector: | 1 X RJ45 |

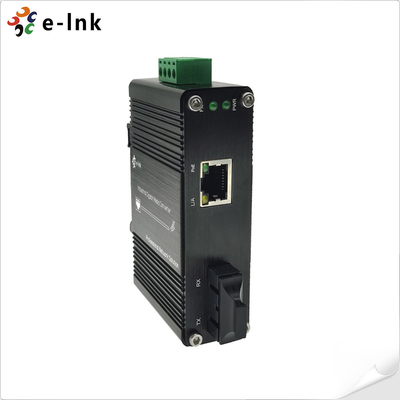

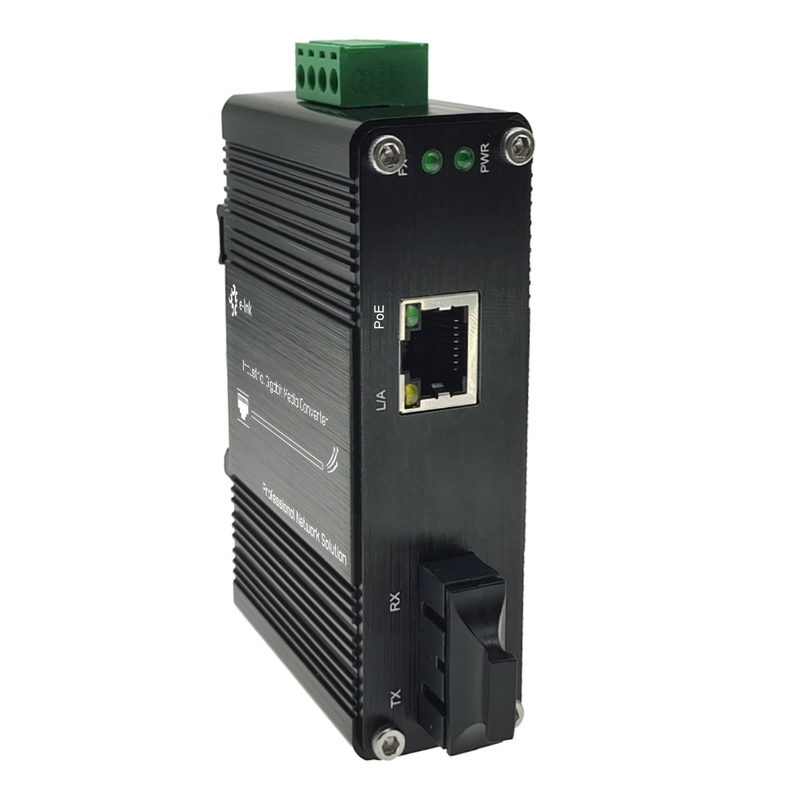

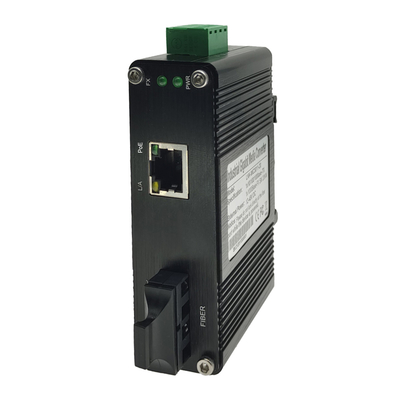

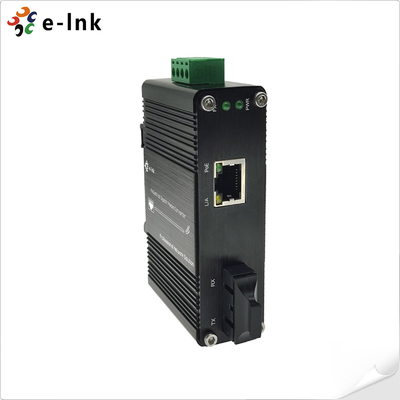

The LNK-IMC3011P90 Series provides media conversion between 10/100/1000BASE-T and 1000BASE-X Fiber. This Industrial Ethernet Media Converter supports 90W high power PoE (Power Sourcing Equipment) which complies with IEEE802.3bt standard. This Industrial Ethernet Media Converter is a hardened product with wide operating temperature range from -40°C to 75°C, and ruggedized aluminum housing. The Ethernet port supports both half-duplex and full-duplex mode. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions.
LNK-IMC3011P90 Series present the following characteristics:
► 1-Port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
► 1-Port 1000Base-X SC
► Supports IEEE802.3af/at PoE+(30W) or IEEE802.3bt PoE++ (90W)
► Supports Full/Half-duplex, Auto-negotiation
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Supports DIN-Rail & Wall-mount installation
► Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature
| Standards: | IEEE802.3 10Base-T |
| IEEE802.3u 100Base-TX/FX | |
| IEEE802.3ab 1000Base-T | |
| IEEE802.3z 1000Base-X | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| IEEE802.3af Power over Ethernet | |
| IEEE802.3at Power over Ethernet | |
| IEEE802.3bt Power over Ethernet | |
| Processing Type: | Store-and-Forward |
| Forward Filter Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Packet Buffer Memory: | 1 Mbit |
| Max Packet Length: | 9K Bytes |
| Address Table Size | 2048K MAC Addresses |
| Output Power | 48VDC |
| Power Consumption: | 95W Max. |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
Industrial Ethernet Media Converter technical support and service includes:
Industrial Ethernet Media Converter ackaging and Shipping:
| Model | Description |
| LNK-IMC3011P90 | Mini Industrial 90W PoE Media Converter, 1-port 1000BASE SC+ 1-port 10/100/1000BASE-T 802.3bt PoE, SC Fiber Port, Multimode, 850nm, 550m |
| LNK-IMC3011P90-20 | Mini Industrial 90W PoE Media Converter, 1-port 1000BASE SC + 1-port 10/100/1000BASE-T 802.3bt PoE, SC Fiber Port, Single Mode, 1310nm, 20km |
| LNK-IMC3011P90S-20 | Mini Industrial 90PoE Media Converter, 1-port 1000BASE SC + 1-port 10/100/1000BASE-T 802.3bt PoE, SC Fiber Port, Single Mode Single Fiber, 1310/1550nm, 20km |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
